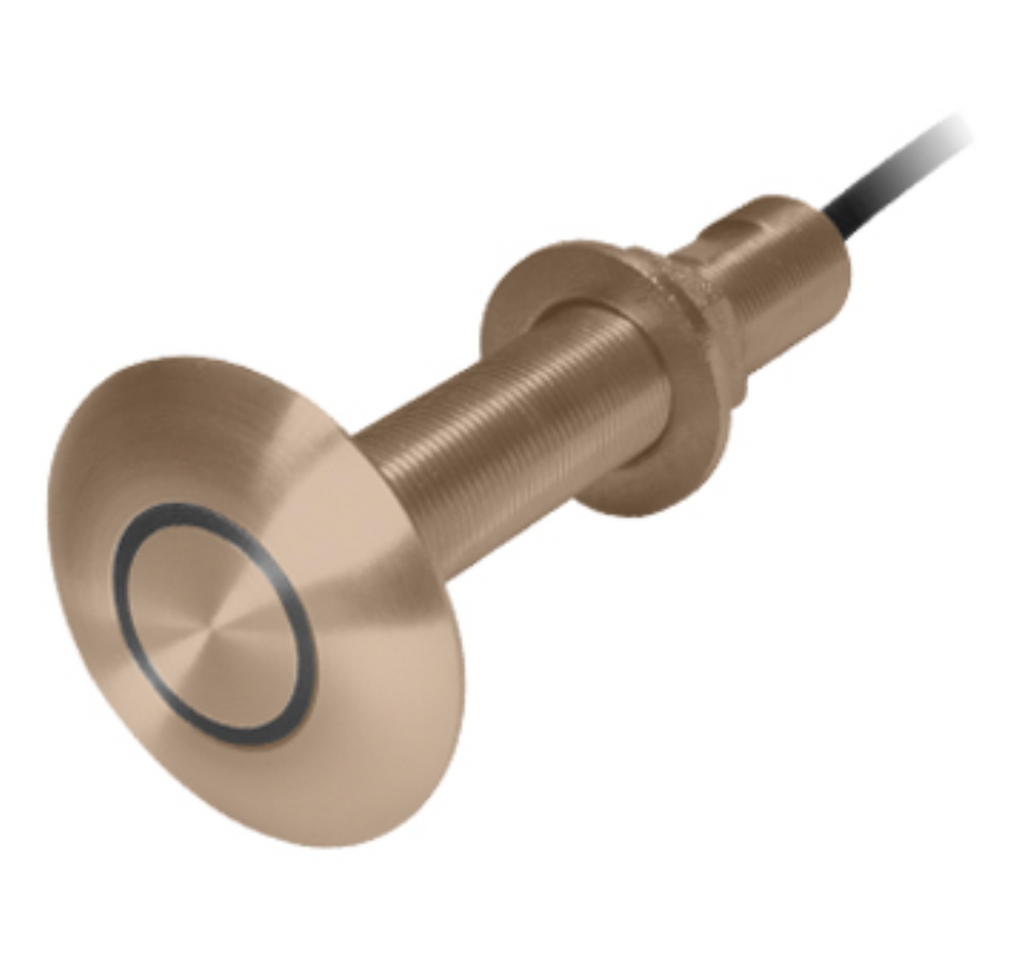

Raymarine A102120 T42 Marine High-Precision Smart ThruHull Temperature Sensor
- Marine High-Precision Smart ThruHull Temperature Sensor
- Temperature Accuracy: ±0.3°C (±0.17°F)
- Resolution: 0.01°C (0.2°F)
- Data Update Rate: 1 per second
- Data Output Protocol: NMEA 0183
- NMEA Data Sentence: YXMTW
- Supply Voltage: 6 VDC to 28 VDC
- Supply Current: 30 mA maximum
- Maximum Extension Cable Length: 100 m (330’)
- Hole Diameter: 22 mm (7/8”)
- Temperature Range: 0°C to 30°C (32°F to 86°F)
- Features:
- Temperature only.
- Durable bronze housing.
- Senses temperature in water and is mounted in fiberglass or wooden boats.
- Temperature sensors have a 3 m (10’) cable to the interface box.
- Interface box has a 10 m (33’) cable leading to the instrument.
- Manufacturer: Raymarine
- Model Number: T42
- Part Number: A102120
