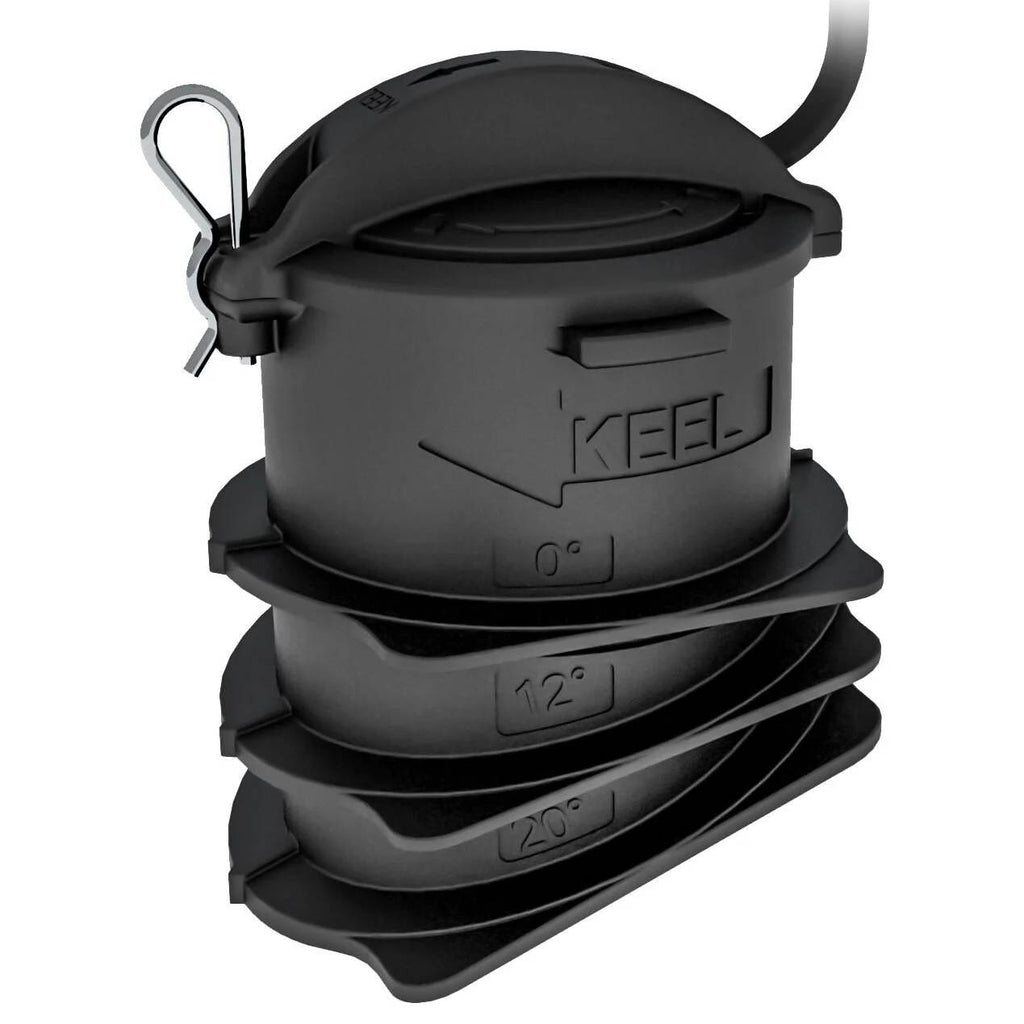

Raymarine A80691 CPT-S Plastic High 170-230 kHz CHIRP In-Hull Transducer

Raymarine A80691 CPT-S Plastic High 170-230 kHz CHIRP In-Hull Transducer

  • Sale
  • $189.95
  • 1 available
  • Raymarine A80691 CPT-S Plastic High 170-230 kHz CHIRP In-Hull Transducer
  • The CPT-S In-hull transducer provides a simple-to-install depth-only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications, the CPTS-S In-hull transducer supports CHIRP sonar operation centered on 200kHz. The CPT-S In-hull transducer transmits sonar signals through the boat's hull, simplifying installation while providing reliable high-speed depth recording. An innovative transducer tube housing design allows the CPT-S In-Hull to mount in hulls ranging from 0 to 25 degrees deadrise.
  • Features:
    • No drilling through the hull is required.
    • Supports single High CHIRP sonar with a 25° conical beam
    • Up to 600 ft (183 m) depth range
    • Includes housing and 6 meter cable
  • Specifications:
    • Sonar Type: CHIRP
    • Frequency: High CHIRP 170 - 230 kHz
    • Hull Compatibility: Solid, non-cored fiberglass hull
    • Deadrise Adjustments: 0°, 12° or 20°
    • Depth Range: Up to 600 ft
    • Cone Angle: 25°
    • Cable Length: 6m (19.69 ft)
  • For use with:
    • Axiom Pro S and Axiom 2 Pro S
    • Element HV
    • Element S
    • All Axiom Chartplotters with Sonar
  • Manufacturer: Raymarine
  • Model Number: CPT-S
  • Part Number: A80691
