  • Sale
  • $599.95
  • 1 available
  • Raymarine ACU-200 E70099 Evolution Boat Marine Autopilot Actuator Control Unit
  • Output Specifications:
    • Drive Clutch Output: Up to 2.0 A continuous, selectable between 12 / 24 V
    • Drive Current Output: Maximum continuous 30 A at supply voltage
  • Physical Specifications:
    • Width: 285 mm (11.2”)
    • Height: 211.5 mm (8.3”)
    • Depth: 64.5 mm (2.5”)
  • Environmental Specifications:
    • Relative Humidity: Maximum 93%
    • Waterproof Rating: Drip Resistant
    • Storage Temperature: -30 °C to +70 °C (-22 °F to 158 °F)
    • Operating Temperature: -20 °C to +55 °C (-4 °F to 131 °F)
  • Power Specifications:
    • Power Consumption (standby) - Main Power Supply: 300 mA (12 / 24 V)
    • Power Output to SeaTalkng bus: 3 A @ 12V (fuse protected at 3 A)
    • Power Consumption (standby) - SeaTalkng bus: 20 mA (12 V)
    • Nominal Supply Voltage: 12 / 24 VDC
    • Operating Voltage Range: 10.8 VDC to 31.2 VDC
    • LEN (NMEA 2000 Load Equivalency Number): 1
  • Manufacturer: Raymarine
  • Model Number: E70099
  • Part Number: ACU-200

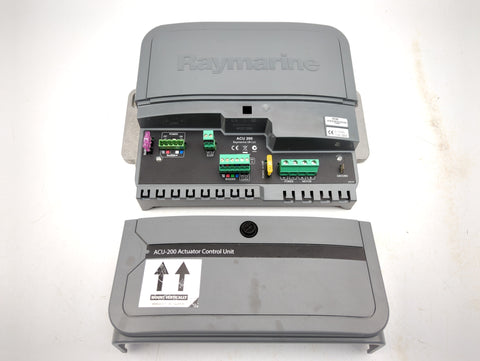

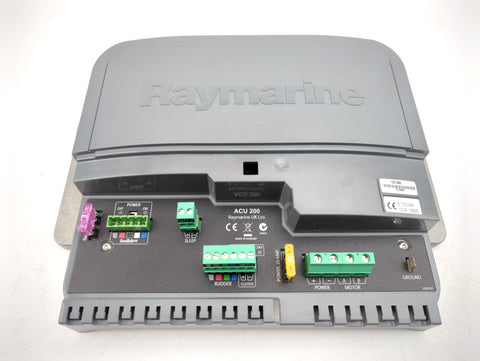

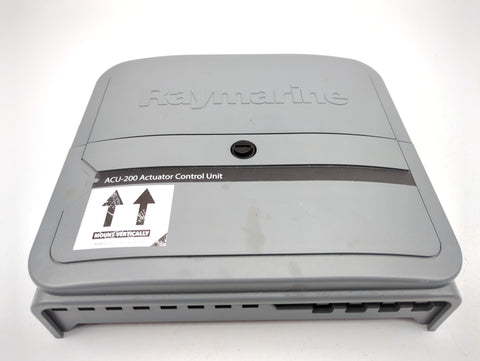

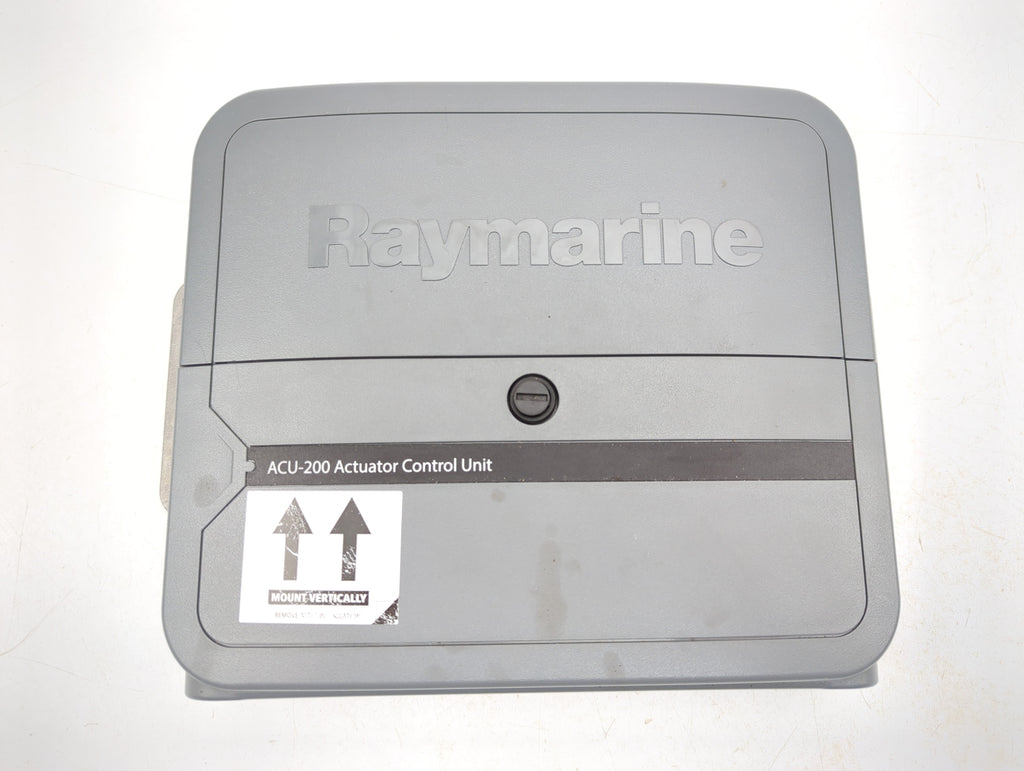

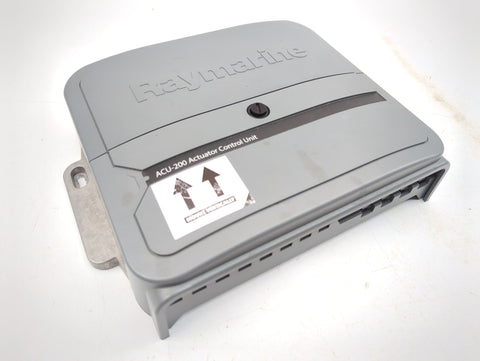

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. With power cable (not shown) See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
