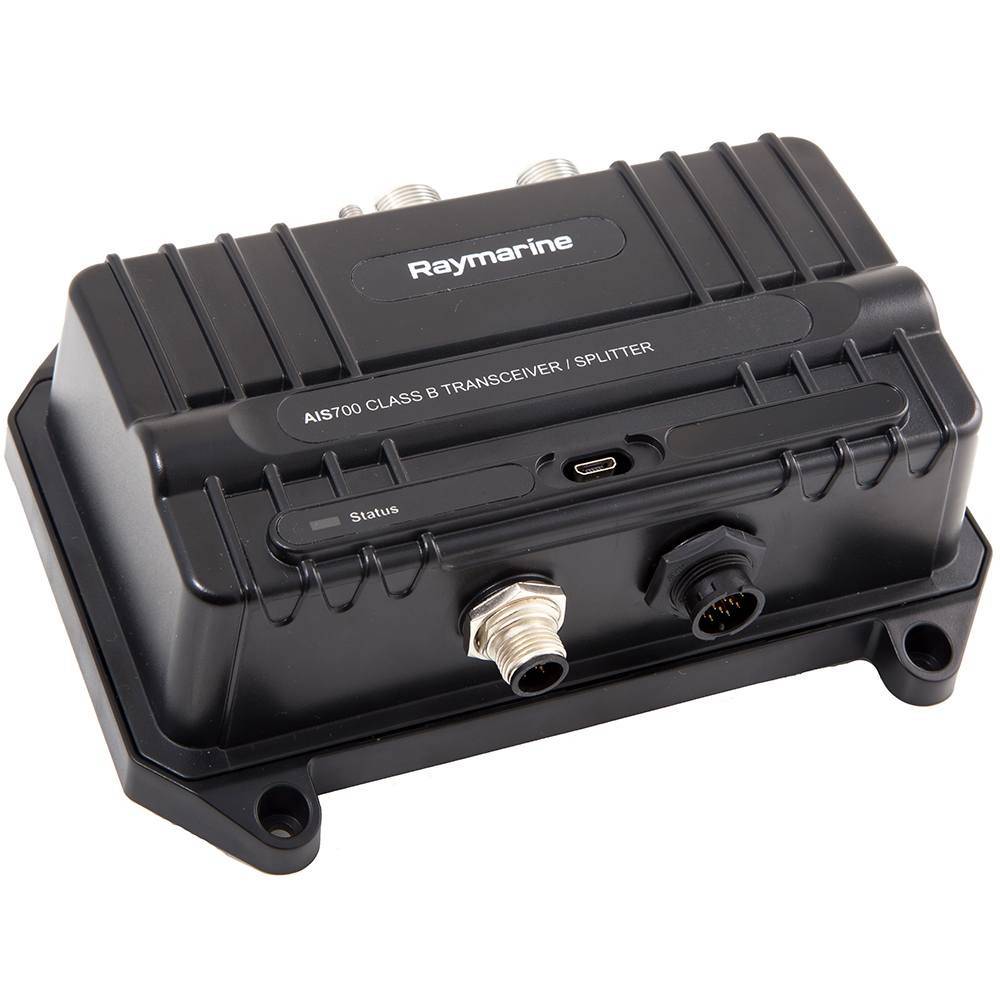

Raymarine AIS700 E70476 Boat Marine Class B Automatic Identification System Transceiver
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with any multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too, helping you to be seen on other vessels’ systems.
Features:
- Full transmit and receive AIS for enhanced situational awareness and safety
- Latest SO-TDMA technology for longer range and faster performance
- Built-in antenna splitter simplifies installation with existing VHF radio antenna
- NMEA2000, NMEA0183, PC (setup & diagnostics) and SeaTalkng compatible
- Software or hardware switchable Silent Mode for enhanced security when needed.
Specifications:
- Environmental:
  - Relative Humidity: Up to 93% @ 40°C (104°F)
  - Waterproof Rating: IPX6, IPX7
  - Storage Temperature: -20°C to +75°C (-4°F to 167°F)
  - Operating Temperature: -15°C to +55°C (5°F to 131°F)
- AIS:
  - Operating Frequency: Transmitting: 156.0MHz to 162.025 MHz, Receiving: 156.0MHz to 174.0 MHz
  - Class: B (Transceiver)
  - AIS Performance: 5W SOTDMA
  - Channel Spacing: 25 kHz
  - Receiver Qty: 2
  - Transmitter Qty: 1
- Physical:
  - VHF Antenna Connection: SO-239 Co-Axial
  - VHF Radio Connector Type: SO-239 Co-Axial
  - NMEA 0183 Connection:
    - Port 1 (MFD connection): HS (IEC 61162-1) compliant, bi-directional, RS422 levels, 4 wire interface (differential signalling), configurable baud rate
    - Port 2 (Instrument connection: (IEC 61162-1) compliant, bi-directional, RS422 levels, 4 wire interface (differential signalling), configurable baud rate
  - USB Connection: Micro-B
  - Dimensions: Height: 132.55 mm (5.22”), Width: 171.65 mm (4.81”), Depth: 57 mm (2.24”)
  - NMEA 2000 Connection: DeviceNet Connector
  - Silent Mode Switch Connection: Bare-ended Wires x2
  - GNSS Antenna Connector Type: 50Ω TNC Co-Axial
- GNSS (GPS):
  - GNSS Compatibility: GPS, GLONASS
  - Cold Start Acquisition: 26 seconds (nominal)
  - Channels: 72
- Power:
  - Operating Voltage Range: 9.6V DC to 31.2V DC
  - Power Consumption: 3W
  - Fuse Rating: 3A
  - Peak Current @ 12V DC: 2.5A
  - Nominal Supply Voltage: 12V DC / 24V DC
  - Peak Current @ 24V DC: 1.25A
  - LEN (NMEA 2000 Load Equivalency Number): 1
Manufacturer: Raymarine
Model Number: AIS700
Part Number: E70476
