3rd generation eSeries chartplotter with LightHouse II
Physical Specifications:
Width: 13.94” (354mm)
Height (excluding bracket): 8.74” (222mm)
Height (including bracket): 10.08” (256mm)
Depth (excluding cables): 2.72” (69mm)
Depth (including cables): 6.29” (160mm)
Power Specifications:
Nominal Supply Voltage: 12/24 VDC
Operating Voltage Range: 10.8 to 31.2 VDC
Fuse/Breaker: 7A In-line Fuse
Power Consumption:
Full Brightness: 33.5W
PowerSave Mode: 17W
LEN: 1
Environmental Specifications:
Operating Temperature: -25 ºC to +55 ºC (-13 ºF to 131 ºF)
Storage Temperature: -30 ºC to +70 ºC (-22 ºF to 158 ºF)
Relative Humidity: Maximum 75%
Waterproof Rating: IPX6 and IPX7
Display Specifications:
Size: 12”
Type: TFT Backlit LED
Color Depth: 24-bit
Resolution: 1280 X 800 pixels
Viewing Angle:
Left/Right: 80º
Top/Bottom: 80º/60º
Data Connections:
Wired Connections:
NMEA 0183 Port 1: Input and Output, 4800/38400 baud
NMEA 0183 Port 2: Input only, 4800/38400 baud
Network (SeaTalk): 2x SeaTalk port
Wireless Connections: WiFi, Bluetooth
Internal GPS Specifications:
Channels: 50
Cold Start: <2 minutes
Receiver IC Sensitivity: 163 dBm Tracking
Satellite Based Aiding System (SBAS): WAAS + EGNOS + MSAS
Special Features: Active Jamming Reduction
Operating Frequency: 1575.42 MHz
Signal Acquisition: Automatic
Almanac Update: Automatic
Geodetic Datum: WGS-84, alternatives available through Raymarine displays.
Update Rate: 1 second
Antenna: Ceramic Chip
Accuracy:
Without SBAS: <= 15 meters 95% of the time
With SBAS: <= 5 meters 95% of the time
Internal Sonar Specifications:
Operating Frequencies: 50/83/200 KHz
Transmit Power: Up to 600W RMS, depending on transducer
Depth Range: Up to 3000 ft, depending on transducer
Video Specifications:
Signal Type: Composite
Format: PAL or NTSC
Connector Type: BNC (Female)
Output Resolution: 720p
Electronic Chart Specifications:
Embedded Electronic Charts: Navionics Worldwide Base Map
Compatible Chart Cards:
Navionics Ready to Navigate
Navionics Silver
Navionics Gold
Navionics Gold+
Navionics Platinum
Navionics Platinum+
Navionics Fish'N Chip
Navionics Hotmaps
Conformance Specification:
Conformance:
NMEA 2000 Certification
WiFi Alliance Certification
Bluetooth Certification
Europe: 1999/5/EC
Australia and New Zealand: C-Tick, Compliance Level 2
FCC 47CFR
Industry Canada RSS210
Manufacturer: Raymarine
Model Number: e127
Part Number: E70024

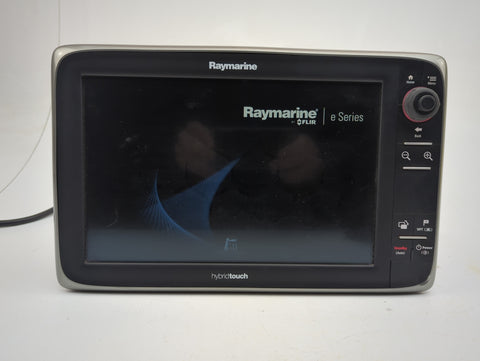

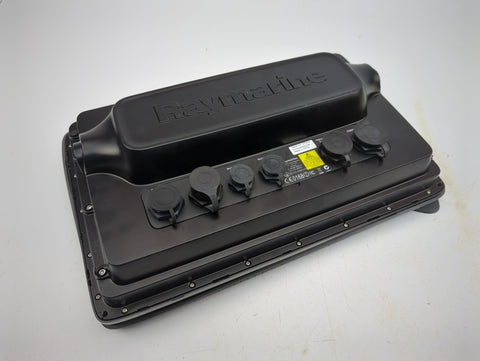

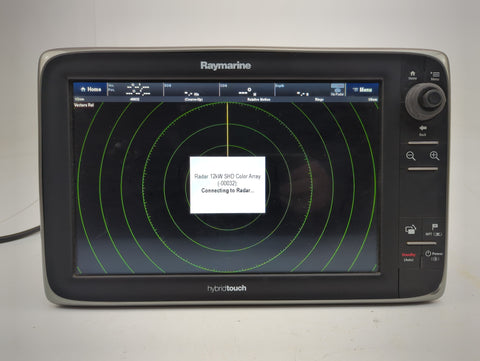

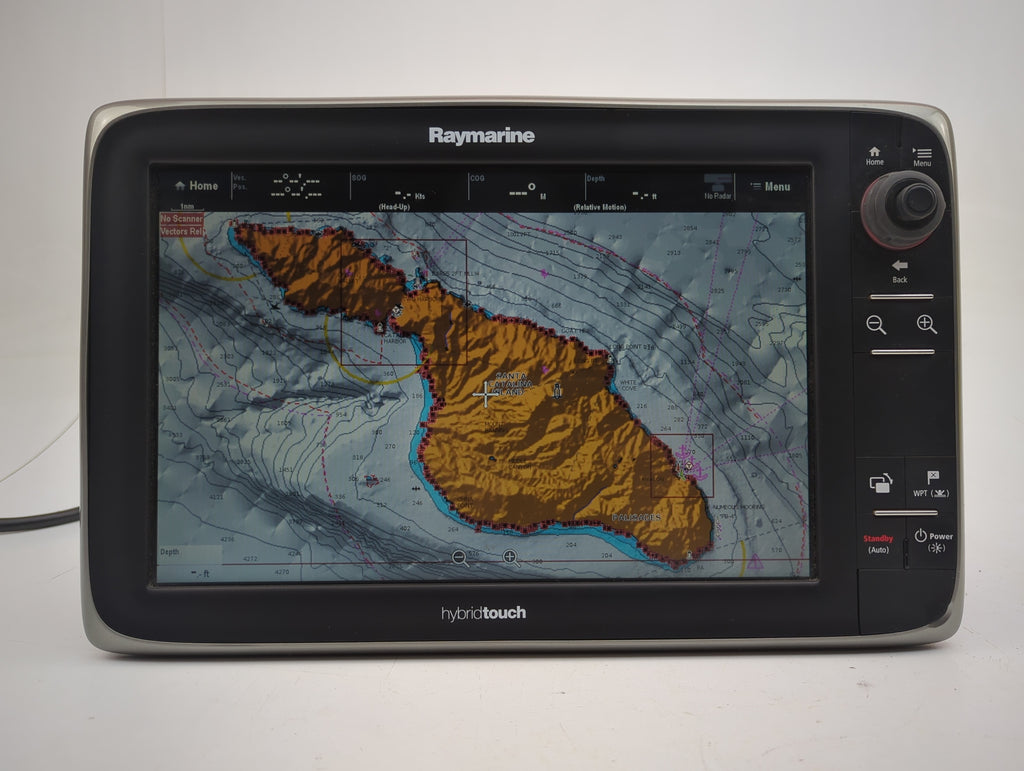

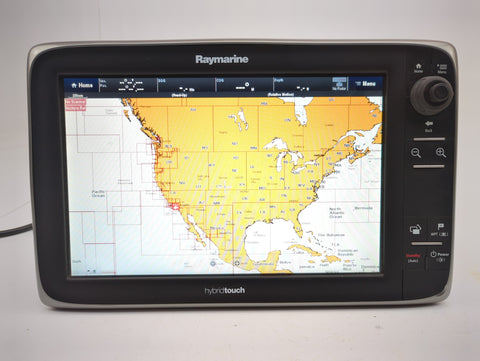

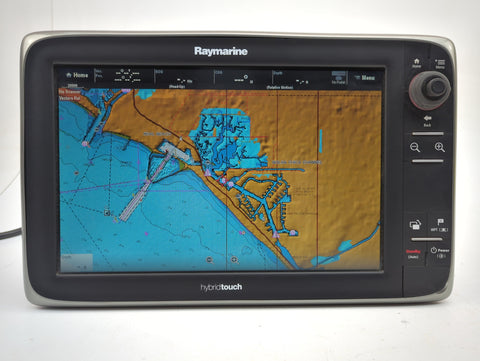

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
