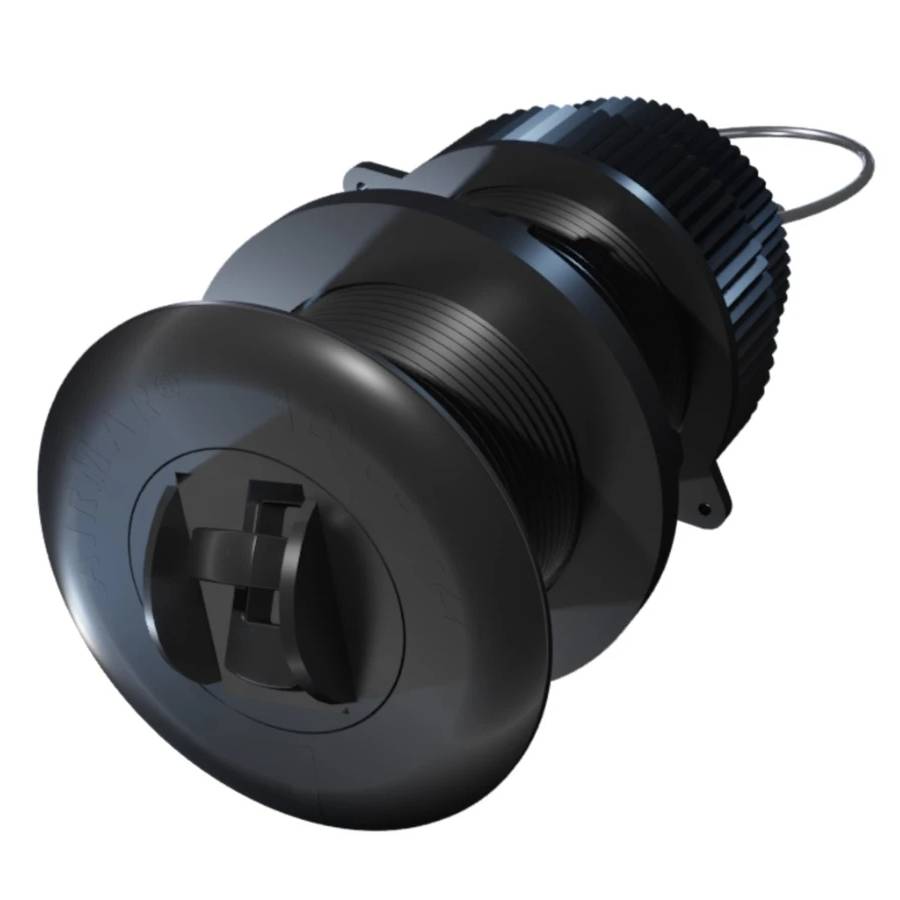

Raymarine E70673 Airmar ST900-P120 ST40 i40 ST60 i50 ST290 ST70 i70 Speed Temp Thru-Hull Transducer

  • Sale
  • Regular price $219.95
  • 1 available


  • Raymarine E70673 Airmar ST900-P120 ST40 i40 ST60 i50 ST290 ST70 i70 Speed Temp Thru-Hull Transducer
  • Speed performance has been taken to the next level with the ST900 Speed/Temperature sensor. Featuring the new Gen2 Paddlewheel, the ST900 outperforms all other paddlewheel sensors for responsive startup and linearity. The Gen2 Paddlewheel begins delivering accurate speed reporting as low as 0.3 knots and maintains smooth speed output through 45 knots.
  • Features:
    • Speed and fast-response water temperature sensor
    • Analog output for use with Raymarine instruments like i40, i50, iTC-5 and legacy systems
    • Retractable for easy maintenance
    • ST900 transducer core is retrofittable into existing Airmar P120 and B120 transducer housings
  • Specifications:
    • Records: Speed/Temperature
    • Hole Diameter for Installation: 2"
    • Mounting Style: Low Profile Thru-hull
    • Speed Range: 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH)
    • Temperature Range: -10° to 40°C (14° to 104°F)
    • Hull Deadrise: Up to 22°
    • Housing Material: Plastic
    • Speed Range: 2 to 45 kts
    • Acoustic Window Material: Urethane
    • Compatible Hull Materials: Fiberglass or metal
    • Dimensions: 4.92" H X 2.94" OD
  • For use with:
    • Raymarine E70147
    • Raymarine i40, i50, i70
    • Raymarine ST40, ST60, ST70, ST290
  • Manufacturer: Raymarine, Airmar
  • Model Number: ST900-P120
  • Part Number: E70673
  • Also Known As: ST900-RY139-1
