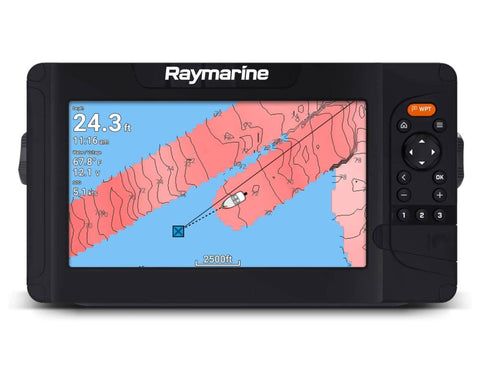

Raymarine Element 7 HV HyperVision E70532-05-102 7" GPS CHIRP Fishfinder Chartplotter with HV-100 & Lighthouse Charts
Sale
Regular price
$789.95
5 available

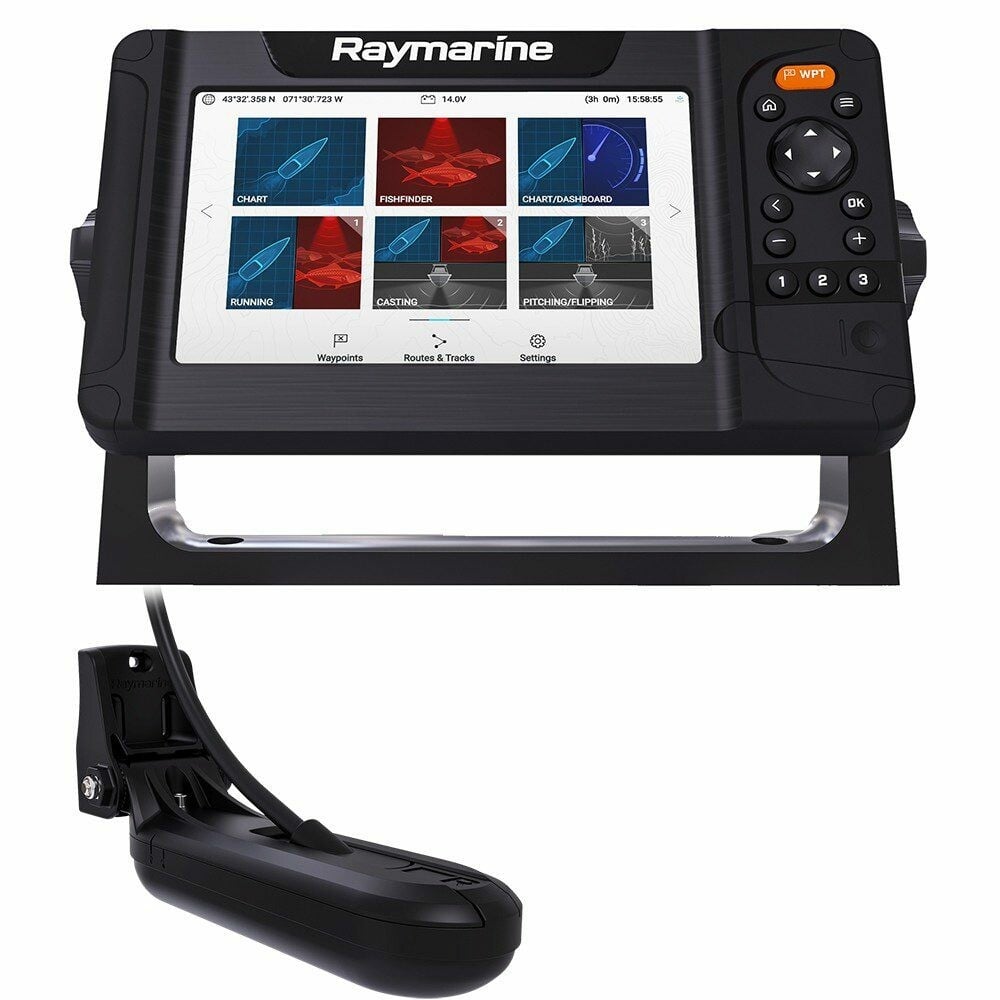

Raymarine Element 7 HV HyperVision GPS CHIRP Fishfinder Chartplotter Combo with HV-100 Transom Mount CHIRP Transducer & Lighthouse North America Charts
The Element CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.
Features:
Bright and Rugged: Sunlight viewable displays with integrated GPS/GNSS receiver.

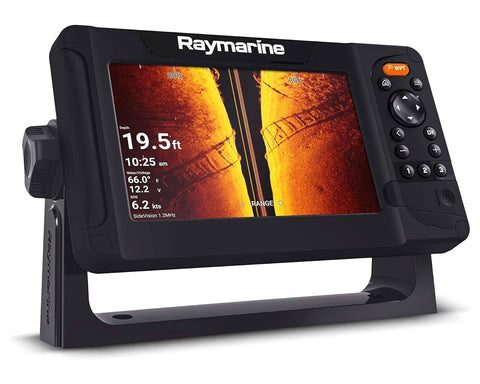

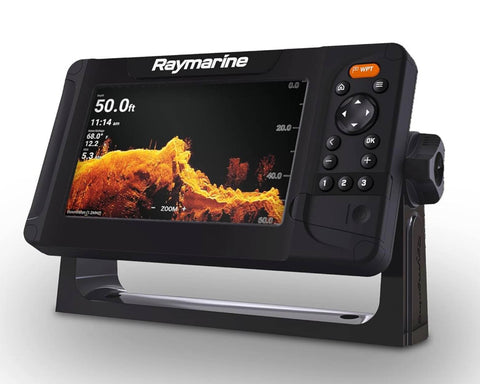

Superior HyperVision: 1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.
RealVision 3D Built-In: Accurately identify the location of ledges, channel beds, and other contour changes.
Fast Quad-Core Processor: For instantaneous chart re-draw and sharp 3D imaging.

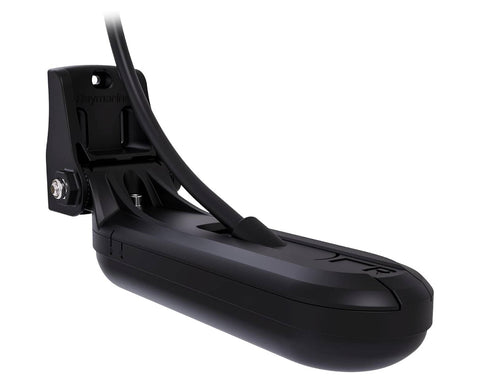

All-in-one Transducer: Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.
Intuitive Controls: An oversized waypoint key for marking your favorite spots and three user-programmable keys makes the Element intuitive and easy-to-use.

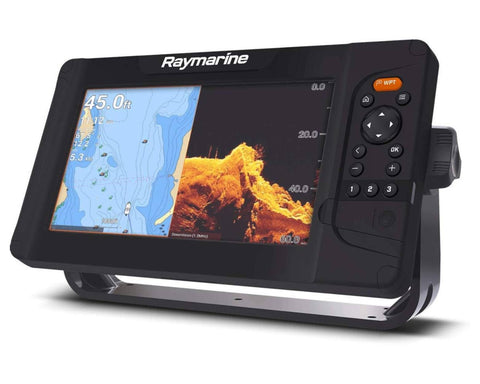

Smart Mapping: Supports Raymarine LightHouse Charts with Fishing Hot Spots, Navionics and C-MAP charts. With Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live, you can make your own maps.

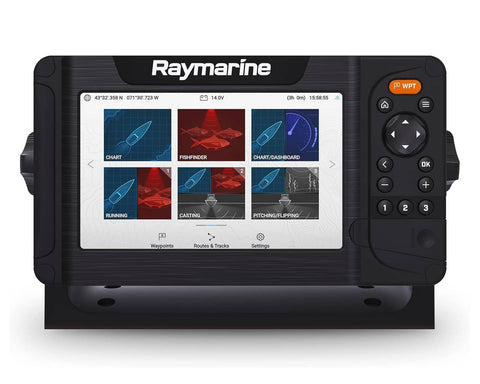

LightHouse Sport Operating System: Optimized for fishing, Raymarine's LightHouse Sport OS offers you the quick control needed to locate the next bite.
Element 7 HV Specifications:
Physical:
Dimensions (Trunnion Mount):
Height: 6.40” (162.59mm)
Width: 9.43” (263.85mm)
Depth: 5.88” (149.40mm)
Dimensions (Surface Mount):
Height: 5.32” (135.10mm)
Width: 9.43” (239.60mm)
Depth: 5.88” (149.40mm)
Weight (Display Only): 1 kg (2.2 lb)
LCD:
Size (Diagonal): 7” (178mm)
Resolution: WVGA 800 x 480
Ratio: 5:3
Viewing Angle (T/B/L/R): 50° / 60° / 70° / 70°
Type: TN (Twisted Nematic)
Color Depth: 24-bit
Maximum Illumination: 1500 nits / 1500 cd/m2
Power:
Operating Voltage Range: 8-16 VDC (Protected up to 32VDC)
SeaTalkng / NMEA2000: 1 x DeviceNet female connector built into power cable
2.4 GHz Wi-Fi: 1 x 802.11/b/g/n
Transducer: 1 x 15-Pin HyperVision connector
Hypervision:
350 kHz (Standard) Range: RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)
1.2 MHz (Hyper) Range: RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)
Sonar Channels: Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)
200 kHz Range: Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)
350 kHz (Standard) Range: RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)
1.2 MHz (Hyper) Range: RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)
Sonar Channels: Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)
200 kHz Range: Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft) Frequencies 1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP
