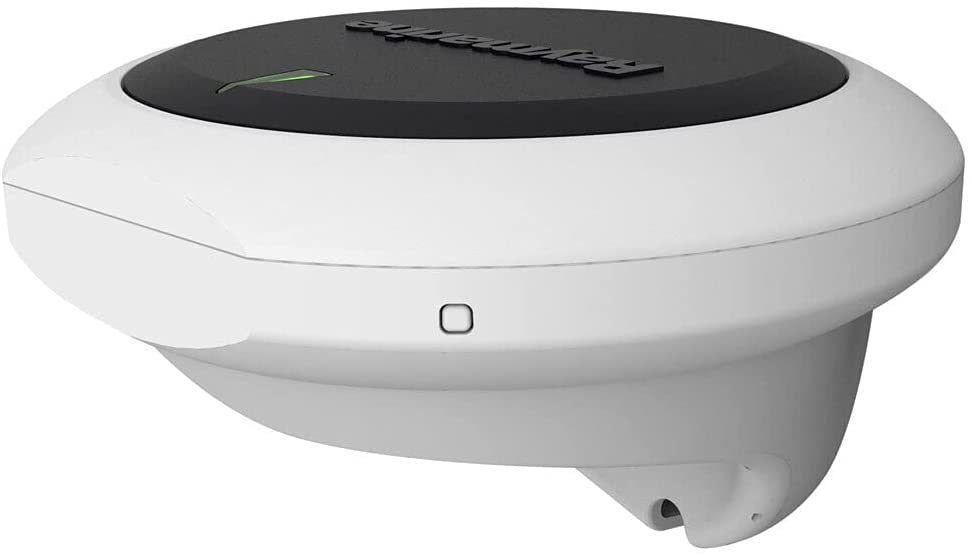

The innovative EV-1 sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing, eliminating the need for complicated set up and calibration.
Precision monitoring of heading, pitch, roll, and yaw
Allows the autopilot to evolve instantly as sea conditions and vessel dynamics change
Flexible installation option - mounts above or below your deck
Simple SeaTalkng connectivity to the control head and ACU
Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes
Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
Nominal supply voltage (volts DC): 12 Volt DC systems
Operating voltage range (volts DC): 10.8 – 15.6 Volts DC
Power consumption: 30 mA
SeaTalkng LEN: 1
Sensors: 9-Axis digital
Data connections: SeaTalkng
Waterproof rating: IPX6
Manufacturer: Raymarine
Model Number: EV-1
Part Number: E70096

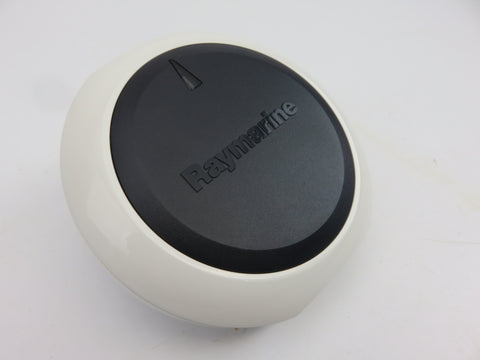

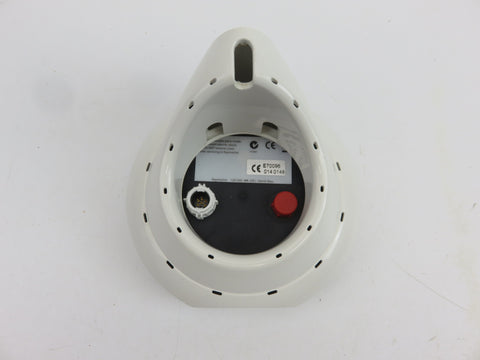

Condition: In Stock, Ready to Ship! This unit is in good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
