Raymarine HV-100 A80549 HyperVision 3D FishFinder CHIRP Transom Mount Transducer
Raymarine HV-100 A80549 HyperVision 3D FishFinder CHIRP Transom Mount Transducer
Raymarine HV-100 A80549 HyperVision 3D FishFinder CHIRP Transom Mount Transducer
Raymarine HV-100 A80549 HyperVision 3D FishFinder CHIRP Transom Mount Transducer

Raymarine HV-100 A80549 HyperVision 3D FishFinder CHIRP Transom Mount Transducer

  • Sale
  • $259.95
  • 1 available
  • Raymarine A80549 Element Boat Marine FishFinder CHIRP Transom Mount Transducer
  • The HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision and Conical High Frequency CHIRP, this is the only shallow-to-medium depth transducer you'll ever need.
  • Specifications:
    • General:
      • Material: Plastic
      • Max. Depth: 3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Conical: 900
      • Frequency: 1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP
      • Beam Width: 3D: 180° / Down: 60° / Conical: 25°
      • Records: Depth / Temperature
      • Hull Material: Fiberglass / Metal
      • Cable Length: 19 ft (6m)
    • HyperVision:
      • 350 kHz (Standard) Range: RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)
      • 1.2 MHz (Hyper) Range: RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)
      • Sonnar Channels: Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)
      • 200 kHz Range: Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)
      • Frequencies: 1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP
      • Power: 1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W
    • Physical:
      • Dimensions:
        • Length: 224.99 mm (8.86”)
        • Height: 112.69 mm (4.44”)
        • Width: 76.00 mm (2.99”)
      • Cable Length: 19.69 ft (6m)
      • Weight (unboxed): 1.05 kg (2.31 lb)
    • Environmental:
      • Waterproof Rating: IPx6 (surfaces exterior to hull only), IPx7, IPx8
      • Storage Temperature Range: 20° C (23° F) to + 70° C (158° F)
      • Operating Temperature Range: -2° C (28.4° F) to + 55° C (131° F)
  • Manufacturer: Raymarine
  • Model Number: HV-100
  • Model Name: HyperVision 3D
  • Part Number: A80549

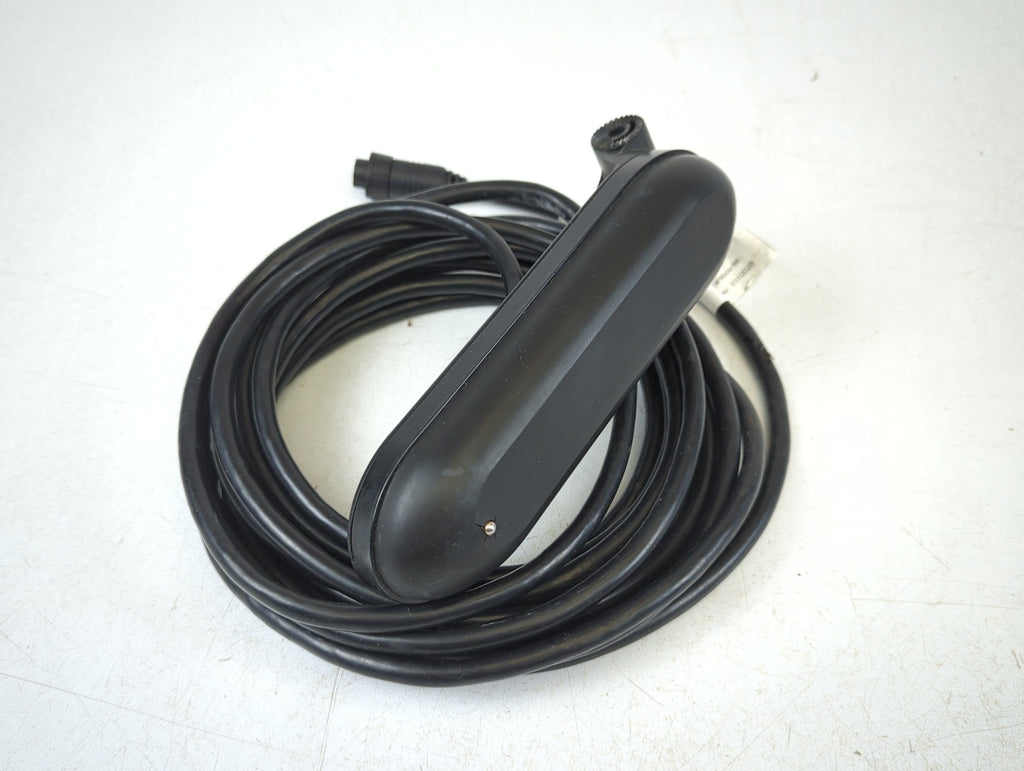

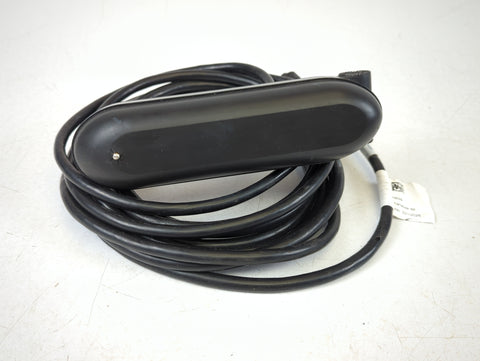

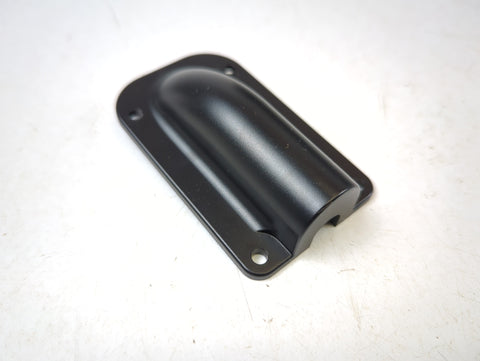

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat after only one day. Owner decided to go with different unit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
