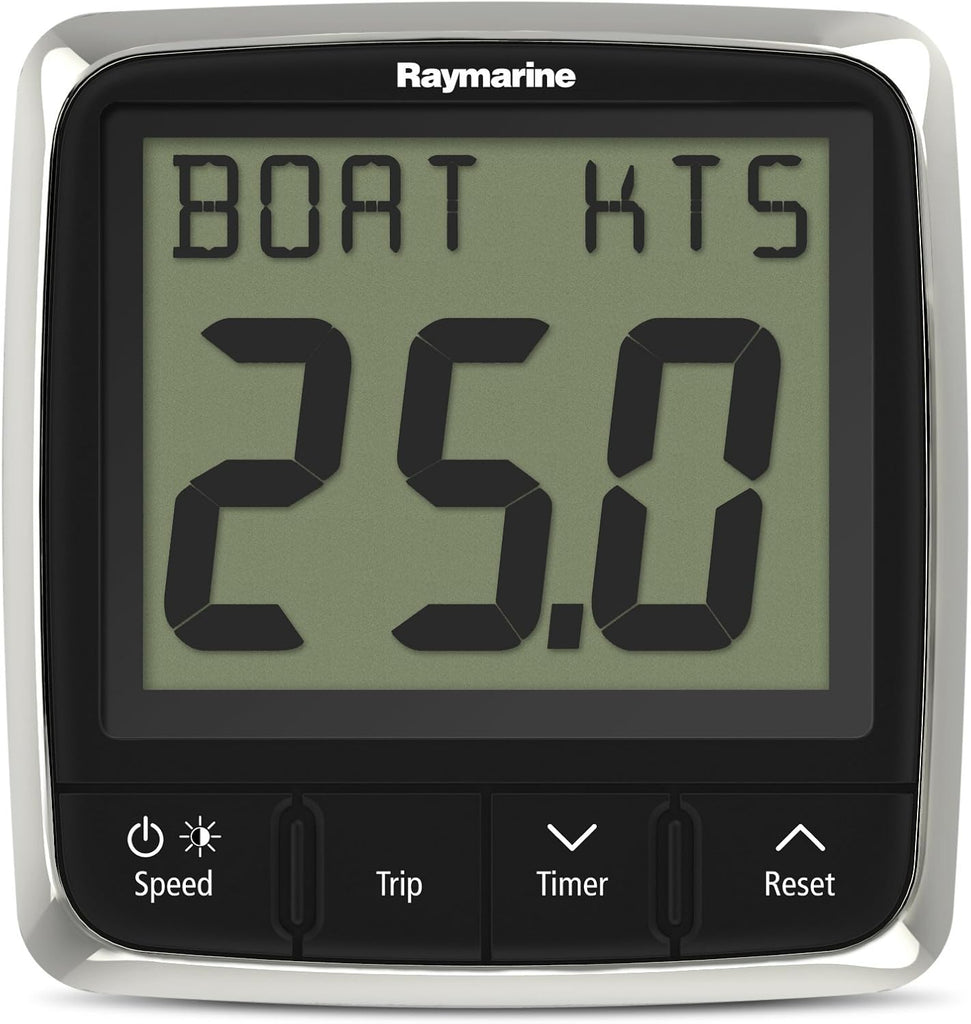

The i50 Speed instrument display is designed for easy viewing of your boat’s speed through the water or speed over ground. The i50 Speed instrument can also display trip and log data as well as water temperature. Ideal for use on RIBs, powerboats, and small yachts, the compact yet surprisingly powerful SeaTalk i40 Depth instrument display can be easily seen, even when the lighting conditions are low thanks to its oversized digits and extra-sharp LCDs.
Features:
Oversized digits for easy viewing by day or night
Red backlighting enhances night visibility
SeaTalk NG, NMEA2000 and SeaTalk network compatible
Built-in speed/temperature transducer interface
Compact footprint
Low power consumption
Surface mount or optional trunnion mount kit
Specifications:
Physical:
Width: 4.22” (110mm)
Height: 4.52” (115mm)
Depth: 1.7” (44mm)
Connections: 2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections
Environmental:
Relative Humidity: Max. 93%
Waterproof Rating: IPX6
Storage Temperature: -30 °C to +70 °C (-22 °F to 158 °F)
Operating Temperature: -20 °C to +55 °C (-13 °F to 131 °F)
Conformance:
Standards: Europe 2004/108/EC
Power:
Current (Typical/Max): 45-65 mA (display only) / 200 mA maximum (transducer connected)
Nominal Supply Voltage: 12VDC
Operating Voltage Range: 10-16 VDC
Power Consumption: < 1 W typical (display only), 2.4 W maximum (transducer connected)
