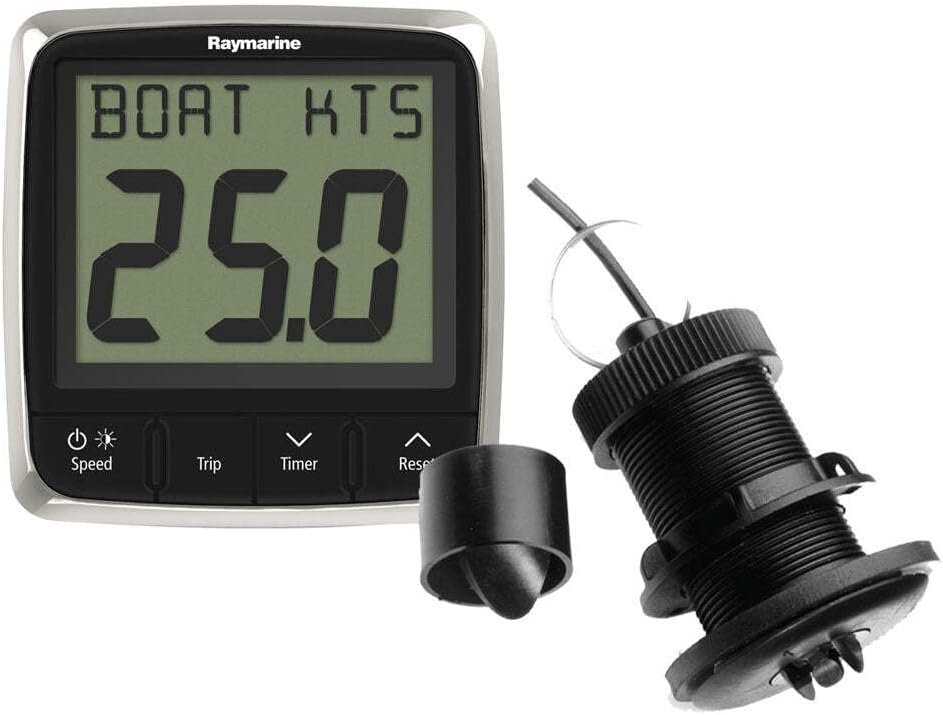

Raymarine i50 Speed E70147 E70058 E70673 ST900-P120 Digital LCD Speed Display + Transducer
Raymarine i50 Speed E70147 E70058 E70673 ST900-P120 Digital LCD Speed Display + Transducer
Raymarine i50 Speed E70147 E70058 E70673 ST900-P120 Digital LCD Speed Display + Transducer
Raymarine i50 Speed E70147 E70058 E70673 ST900-P120 Digital LCD Speed Display + Transducer

Raymarine i50 Speed E70147 E70058 E70673 ST900-P120 Digital LCD Speed Display + Transducer

  • Sale
  • $699.95
  • 1 available
  • Raymarine i50 Speed E70147 E70058 E70673 ST900-P120 Digital LCD Speed Display + Transducer
  • Raymarine i50 Speed System is a compact yet powerful SeaTalk instrument display for smaller powerboats, yachts and RIBs.
  • Features:
    • Instrument display ideal for smaller powerboats, yachts and RIBs
    • Designed to complement Raymarine's latest generation multifunction displays
    • Extra-large numerals and digits, razor sharp LCDs with red backlighting for outstanding visibility in all lighting conditions
    • Excellent viewing angles and large push-button controls for ease of use at sea
    • SeaTalk, SeaTalk ng and NMEA 2000-compatible interfaces
    • Built-in transducer interface
    • Low power consumption for longer battery life
    • Multiple data source support eliminates potential data conflicts
    • Front-mounted design for simple installation
    • Same footprint as the older Raymarine ST50 instrumentation
  • Display Specifications:
    • Physical:
      • Width: 4.22” (110mm)
      • Height: 4.52” (115mm)
      • Depth: 1.7” (44mm)
      • Connections: 2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections
    • Environmental:
      • Relative Humidity: Max. 93%
      • Waterproof Rating: IPX6
      • Storage Temperature: -30 °C to +70 °C (-22 °F to 158 °F)
      • Operating Temperature: -20 °C to +55 °C (-13 °F to 131 °F)
    • Conformance:
      • Standards: Europe 2004/108/EC
    • Power:
      • Current (Typical/Max): 45-65 mA (display only) / 200 mA maximum (transducer connected)
      • Nominal Supply Voltage: 12VDC
      • Operating Voltage Range: 10-16 VDC
      • Power Consumption: < 1 W typical (display only), 2.4 W maximum (transducer connected)
      • LEN (NMEA 2000 Load Equivalency Number): 4
  • Transducer Specifications:
    • Mount: Thru-hull
    • Hull Deadrise: Up to 22°
    • Housing Material: Plastic
    • Speed Range: 2 to 45 kts
    • Temperature Sensor Range: 14 to 104° F
    • Acoustic Window Material: Urethane
    • Compatible Hull Materials: Fiberglass or metal
    • Hole Diameter for Installation: 2"
    • Dimensions: 4.92" H X 2.94" OD
  • Includes:

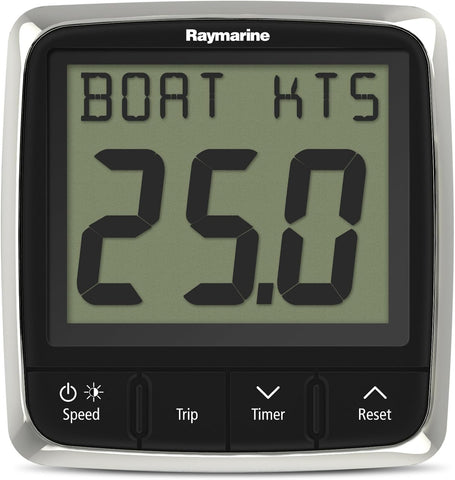

    • Raymarine E70058 Speed Display

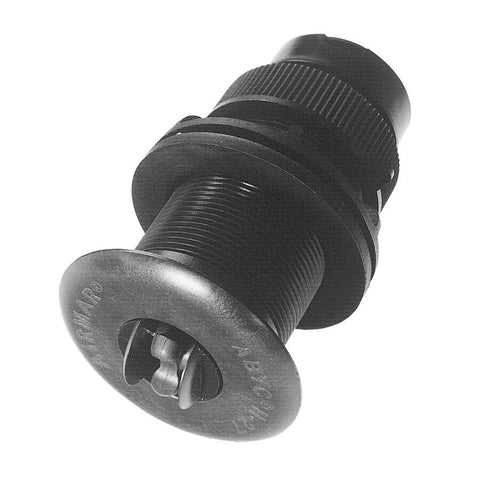

    • Raymarine E70673 Transducer
  • Manufacturer: Raymarine
  • Model Number: i50 Speed
  • Part Number: E70147
