Raymarine RAY210 M56798 Raytheon Boat Marine VHF Radio Radiotelephone FOR PARTS
Sale
Regular price
$39.95
1 available
Raymarine RAY210 M56798 Raytheon Boat Marine VHF Radio Radiotelephone
Specifications:
Transmitter:
Channel: 51 USA/International
Frequency Stability: +/-5ppm(+/-0.0005%)
Channel Spacing: 25KHz Increment
Power Output: 25W, Switchable to 1W into 50 ohm at 13.6 VDC
Modulation: Frequency Modulated 16F3 (+/-4.5KHz at 1000Hz)
Modulation Audio: Within the limit of +/-3dB at 6dB/oct freq. curve (300-2.5KHz)
Hum & Noise Level: Greater than 40dB below audio
Audio Distortion: Less than 10% at 1KHz for +/- 3KHz deviation
Spurious and Harmonic: Greater than 70dB below carrier power
Antenna Impedance: 50 ohms
Receiver:
Channel: 93 (Includes 10 WX Channels)
Frequency Range: 156.025 to 163.275MHz in 25KHz increments
Frequency Stability: ±5ppm (±0.0005%)
Sensitivity: 0.3µV for 12dB SINAD
Squelch Sens. Threshold: 0.2µV or better
Tight Squelch Sens.: 1µV
Adjacent CH Rejection: Greater than 70dB
Spurious Image Rejection: Greater than 70dB
Intermodulation Rejection: Greater than 70dB
Audio Output: 4 Watts @ 4 ohms with less than 10% distortion
Hum and Noise: Greater than 40dB
Operating Requirement:
Input Voltage: 13.6 VDC ±15% (11.6 to 15.6 VDC)
Current Required for Transmit: Less than 5.5A at 25W, Less than 1.3A at 25W
Operating Temperature: -20º C to +50º C
Mechanical:
Waterproofness: CFR 46
Mechanical Requirement:
Cabinet: Front: ABS, Rear: Die-Cast
Keyboard: Silicon Rubber
Display: Custom LCD (EL Backlit LCD)
External Hardware: Non-Corrosive and Porous Metal shall be used

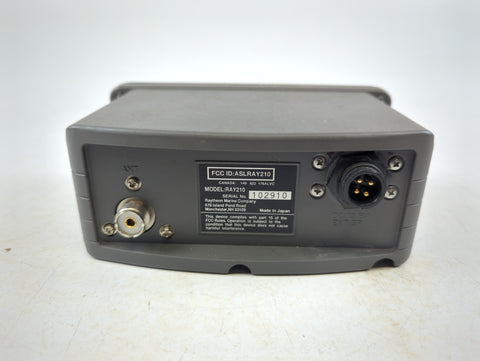

External Connections: Antenna M-Type Power/External Speaker 4-Pin Jack
Manufacturer: Raymarine, Raytheon
Model Number: RAY210
Part Number: M56798

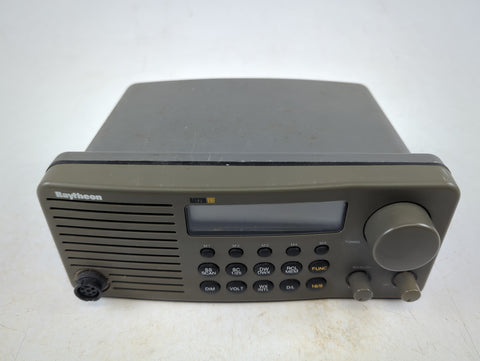

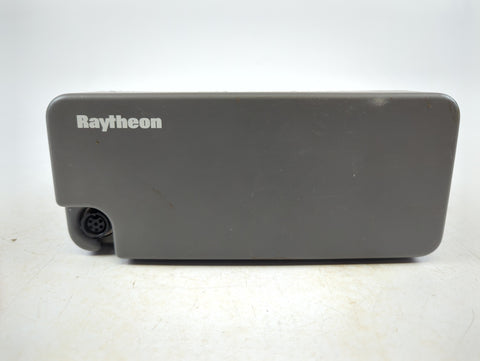

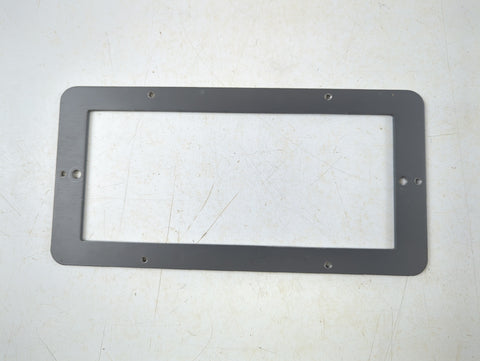

Condition: In Stock, Ready to Ship! This unit is in very good physical condition and was removed from a boat that received a total electronics refit. DOES NOT POWER ON. See Photos. This unit is being SOLD AS-IS. This listing is only for what is shown in the photos. No other parts or pieces are included.
