  • Sale
  • $124.95
  • 1 available
  • Raymarine RAY210 M56798 Raytheon Boat Marine VHF Radio Radiotelephone with Suncover
  • Specifications:
    • Transmitter:
      • Channel: 51 USA/International
      • Frequency Stability: +/-5ppm(+/-0.0005%)
      • Channel Spacing: 25KHz Increment
      • Power Output: 25W, Switchable to 1W  into 50 ohm at 13.6 VDC
      • Modulation: Frequency Modulated 16F3 (+/-4.5KHz at 1000Hz)
      • Modulation Audio: Within the limit of +/-3dB at 6dB/oct freq. curve (300-2.5KHz)
      • Hum & Noise Level: Greater than 40dB below audio
      • Audio Distortion: Less than 10% at 1KHz for +/- 3KHz deviation
      • Spurious and Harmonic: Greater than 70dB below carrier power
      • Antenna Impedance: 50 ohms
    • Receiver:
      • Channel: 93 (Includes 10 WX Channels)
      • Frequency Range: 156.025 to 163.275MHz in 25KHz increments
      • Frequency Stability: ±5ppm (±0.0005%)
      • Sensitivity: 0.3µV for 12dB SINAD
      • Squelch Sens. Threshold: 0.2µV or better
      • Tight Squelch Sens.: 1µV
      • Adjacent CH Rejection: Greater than 70dB
      • Spurious Image Rejection: Greater than 70dB
      • Intermodulation Rejection: Greater than 70dB
      • Audio Output: 4 Watts @ 4 ohms with less than 10% distortion
      • Hum and Noise: Greater than 40dB
    • Operating Requirement:
      • Input Voltage: 13.6 VDC ±15% (11.6 to 15.6 VDC)
      • Current Required for Transmit: Less than 5.5A at 25W, Less than 1.3A at 25W
      • Operating Temperature: -20º C to +50º C
    • Mechanical:
      • Waterproofness: CFR 46
      • Mechanical Requirement:
        • Cabinet: Front: ABS, Rear: Die-Cast
        • Keyboard: Silicon Rubber
        • Display: Custom LCD (EL Backlit LCD)
        • External Hardware: Non-Corrosive and Porous Metal shall be used
        • External Connections: Antenna M-Type Power/External Speaker 4-Pin Jack
  • Manufacturer: Raymarine, Raytheon
  • Model Number: RAY210
  • Part Number: M56798

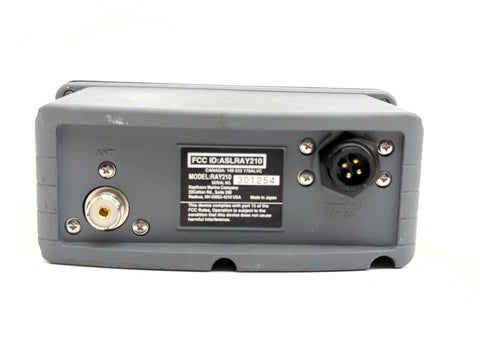

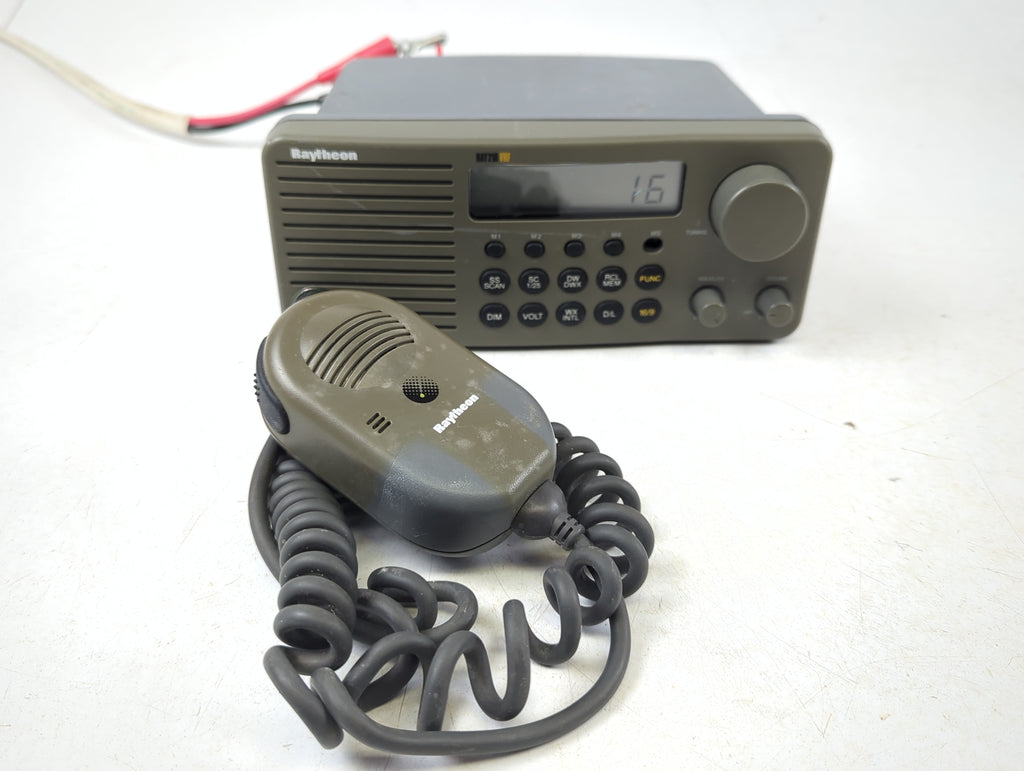

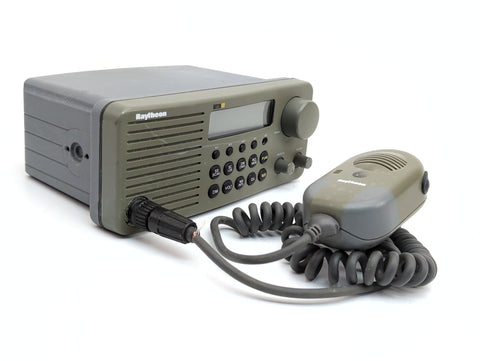

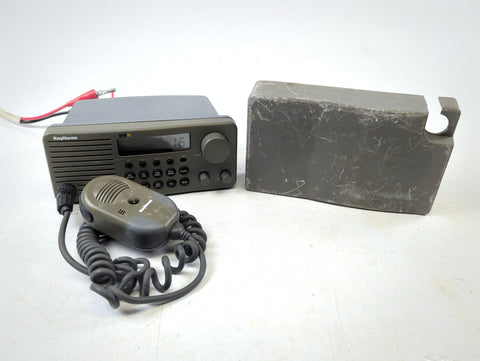

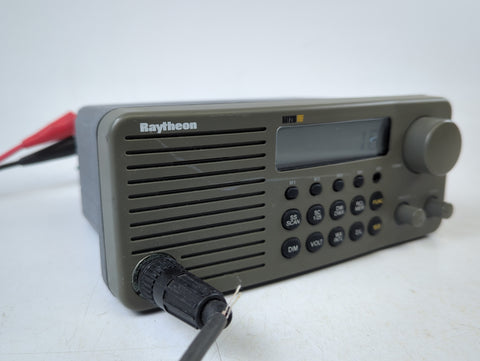

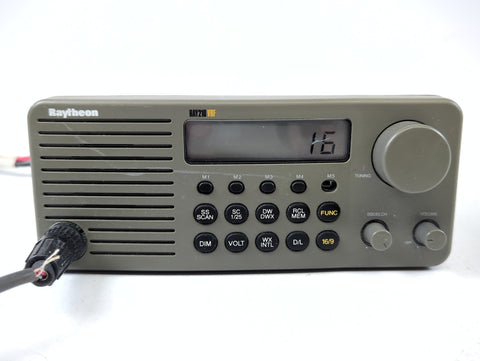

  • Condition: In Stock, Ready to Ship! This unit is in good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
