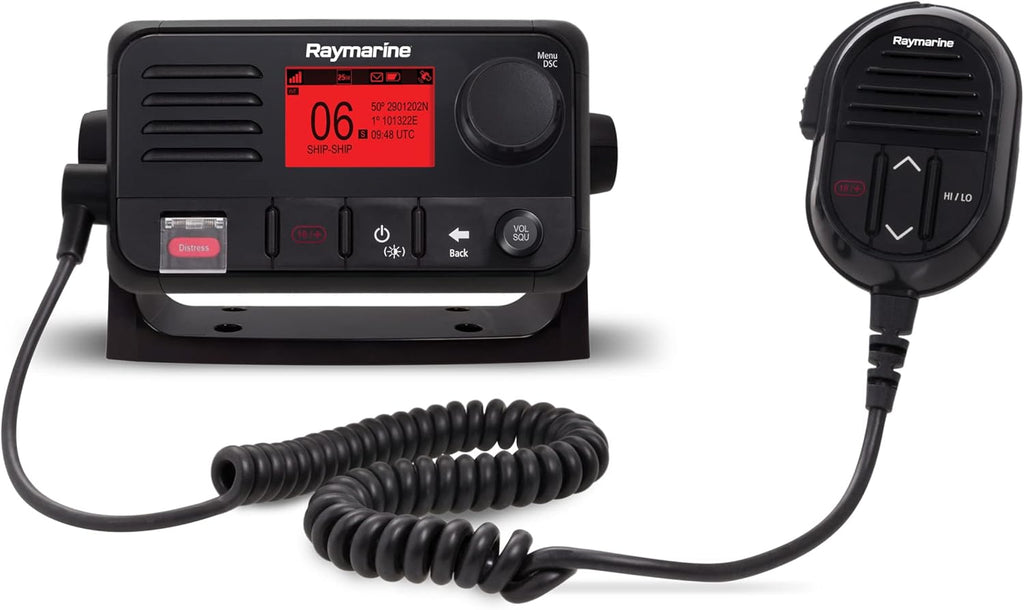

Raymarine Ray53 E70524 Compact Fixed Mount Class D DSC VHF Radio with GPS
Raymarine’s Ray53 radio is big on features and performance. Ray53 is a VHF marine radio with Class D Digital Selective Calling (DSC) and internal GPS receiver. Simply program your boat’s MMSI number into the Ray53 and immediately benefit from the enhanced calling and safety features of DSC.
Features:
Compact marine VHF with Digital Selective Calling
Built-in GPS/GNSS receiver with a connection point for an optional external antenna
NMEA2000 and NMEA0183 networking for integration with onboard systems
Audio output connection for optional passive remote speaker (A80542)
Surface and trunnion mount kits included
Styled to compliment the Axiom family of chartplotter displays
Specifications:
Environmental:
Operating Temperature: -20ºC (-4ºF) to +60ºC (140ºF)
Storage Temperature: -25ºC (-13ºF) to +70ºC (158ºF)
Relative Humidity: 95%
Water Proofing: IPX6 and IPX7
Connections:
(1) NMEA 0183
(1) SeaTalkng / NMEA 2000
(1) Audio (RCA)
(1) GNSS (GPS) antenna (TNC)
Power:
Nominal Supply Voltage: 12V DC
Operating Voltage Range: 9V to 16V DC
Current Consumption:
Less than 6A at high power (13.6V)
Standby: 600 mA
Receive: 2A
Transmitter:
Channels: All available US, International and Canadian VHF marine bands
Frequency Range: 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Frequency Stability: +/- 1.5 ppm
Channel Spacing: 25 kHz
Power Output:
Low Power Setting: 1W
High Power Setting: 25W
Spurious Emissions: Better than –36 dBm at 25 W (Less than 0.25 μW
Maximum Deviation: +/- 5 kHz
Antenna Impedance: 50 Ohms (typical)
Receiver:
Receiver Type: Double conversion super heterodyne
Channels: All available US, International and Canadian VHF marine bands
Frequency Range: 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity: Less than -2 dBμ EMF
Hum and Noise: Better than -40 dB
Audio Distortion: Less than 10%
Receiver Sensitivity:
Distance — 119dBm (0.25uV) @ 12dB SINAD (typical)
Local — 110dBm (0.7uV) @ 12dB SINAD (typical)
Adjacent Channel Selectivity: More than 70 dB
Spurious Response Rejection: More than 70 dB
Inter Modulation Rejection: More than 68 dB
Speakers:
Base Station Speaker Power Output: 2.5W (8 Ω)
Fistmic Speaker Power: 1W (16 Ω)
External Speaker Power: 5W (8 Ω)
GNSS (GPS):
Channels: 72
Cold Start: <2 minutes
Receiver IC Sensitivity: –167 dBm (Tracking) / –148 dBm (Acquisition)
GNSS Compatibility: GPS, GLONASS, Beidou
SBAS Compatibility: WAAS, EGNOS, MSAS
Special Features: Active Jamming and Interference Reduction
