Superior receiver with excellent intermodulation rejection.

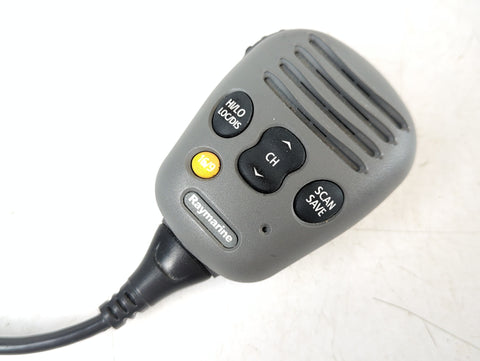

Speaker microphone with controls and remote mount option.
NMEA 0183 input with GPS Position, COG and SOG display.
DSC Distress key transmits GPS position and a digital mayday.
Easy-to-use rotary controls for channel, volume, squelch and menu operation.
4 Scan Modes: All Scan, Saved (Memory) Scan, Priority All Scan and Priority Saved Scan
Rugged housing with a low profile bezel
Dual Channel Display (2UP Mode) displays active channel and stand by channel simultaneously.
General Specifications:
Hailer Output Power: 30 watts @ 4 ohms
Power: 12 VDC system (13.6 VDC, typical)
Environmental: Waterproof to IPX7 –10°C to +50°C, –20°C to +70°C, up to 95%
Frequency Range: Transmit: 156.050 to 162.425 MHz, Receiver: 156.050 to 163.275 MHz
NMEA IN Sentences Supported: GLL, GGA, RMA, RMC, GNS
NMEA OUT Sentences: DSC, DSE
Conforms to: IEC62238, EN300-698-2/3, and essential requirements of R&TTE Directive 1999/5/EC.
Transmitter Specifications:
Maximum Deviation: ± 5 KHz
Adjacent Channel Power: more than 70 dB
Spurious/Harmonic Emissions: less than -70 dBc
Current Drain: Hi Power at 13.6V DC: less than 6 A
RF Power @ 13.6 VDC: 25W Hi Mode, 1W Lo Mode
FM Hum and Noise Level: less than -40 dB below audio level
Receiver Specifications:
Audio Distortion: less than 10%
Sensitivity @ 12db SINAD: 0.28 µV, typical
Hum and Noise: less than -40 dB below audio level
Spurious Image Rejection: more than 80 dB, typical
Adjacent Channel Rejection: more than 80 dB, typical
Intermodulation Rejection Ratio: more than 80 dB, typical
Squelch Sensitivity: @ Tight - less than 1 µV, @ Threshold - less than 0.28 µV
Includes:
Radio
Sun Cover
Microphone
Instruction Manual
Power/Speaker/Data Cable
Manufacturer: Raymarine
Model Number: RAY55
Part Number: E43036

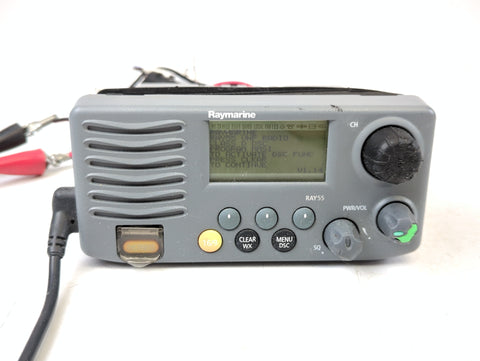

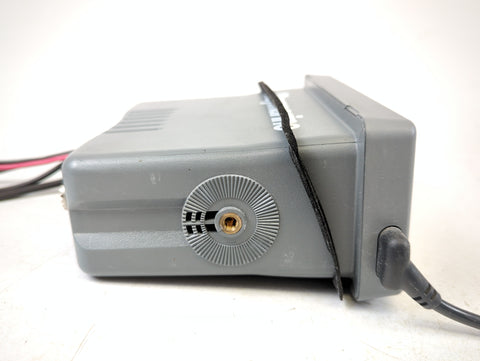

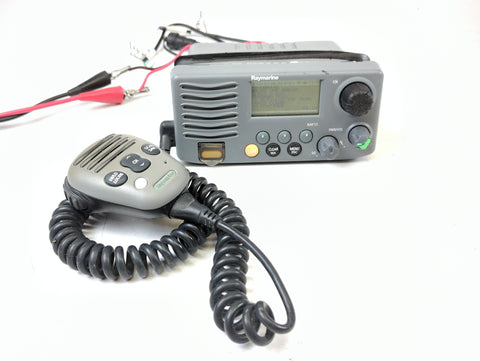

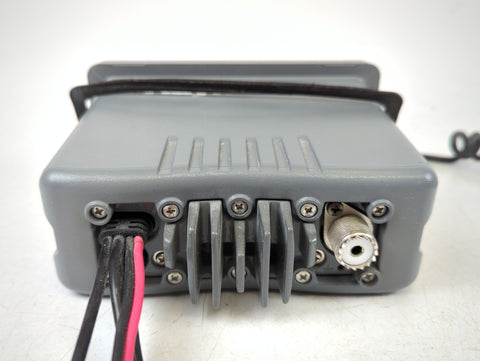

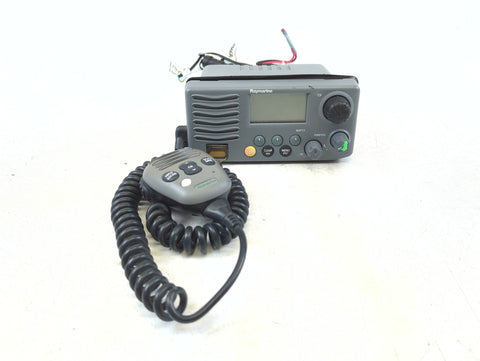

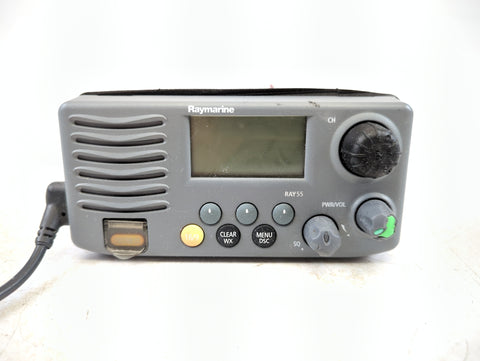

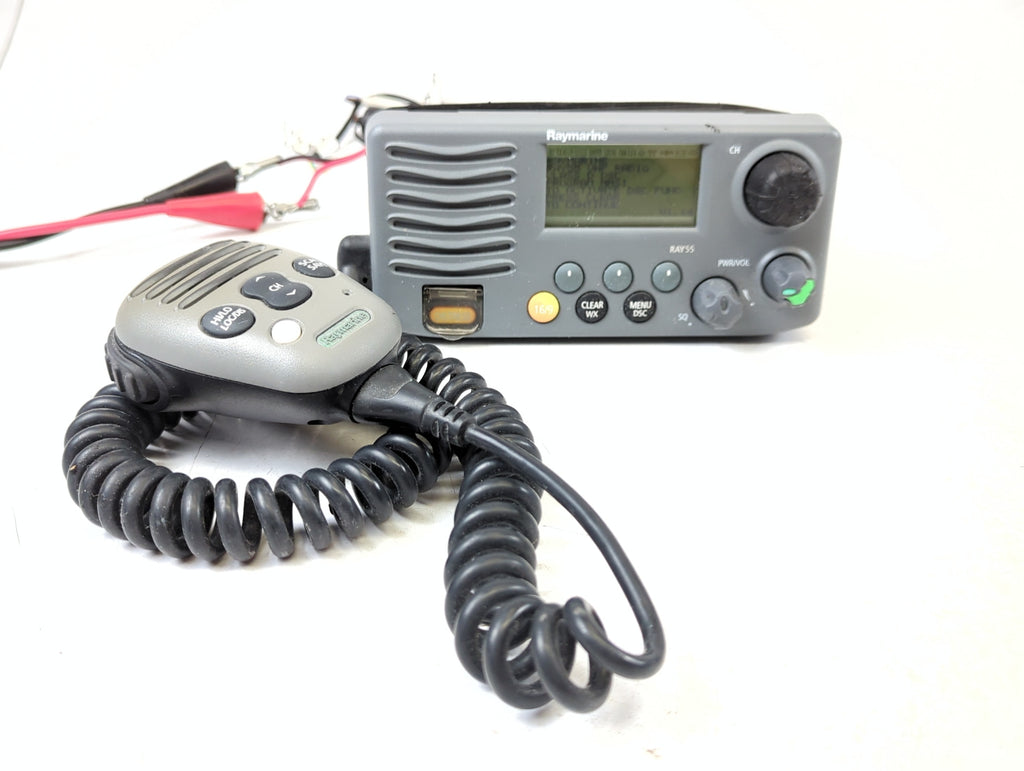

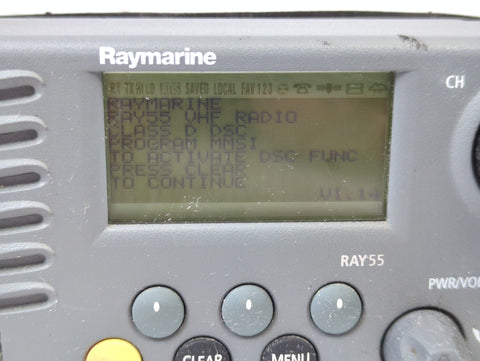

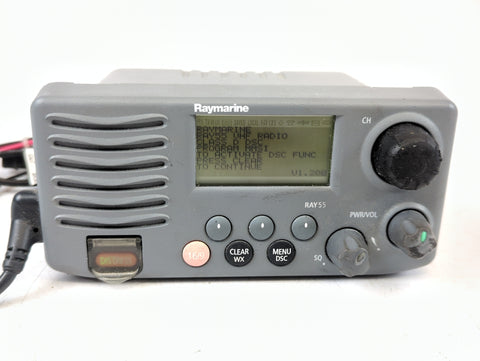

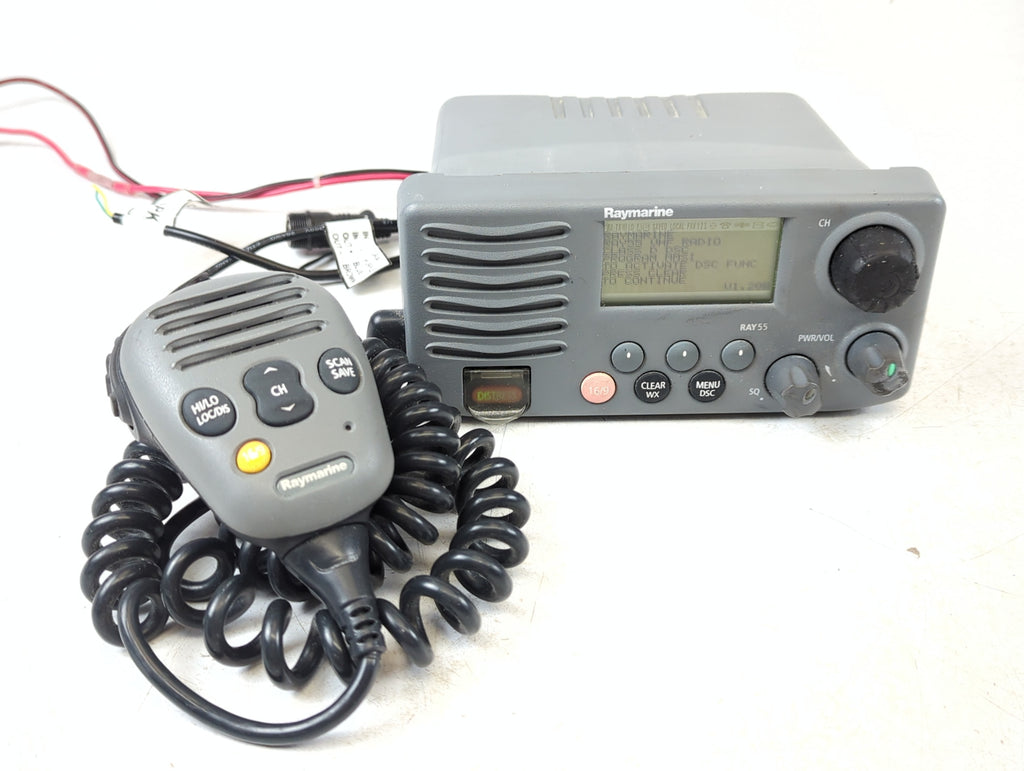

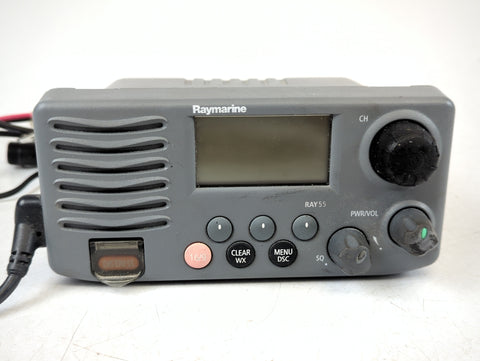

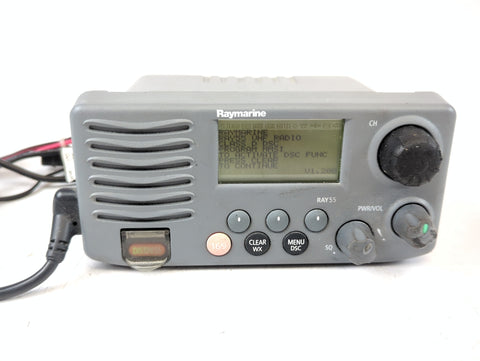

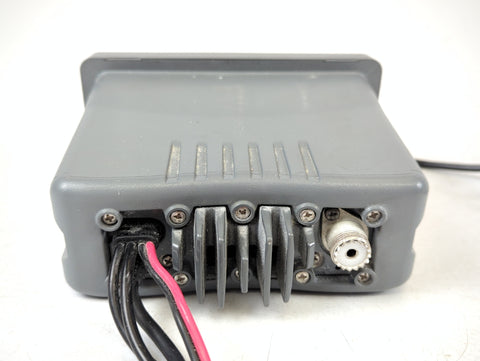

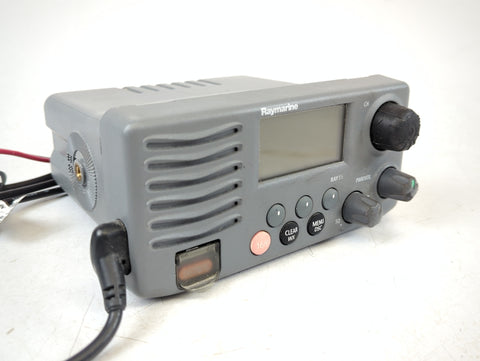

Condition: In Stock, Ready to Ship! This unit is in good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
