Raymarine Ray90 E70492 Boat Marine Modular Black Box Dual-Station VHF Radio System

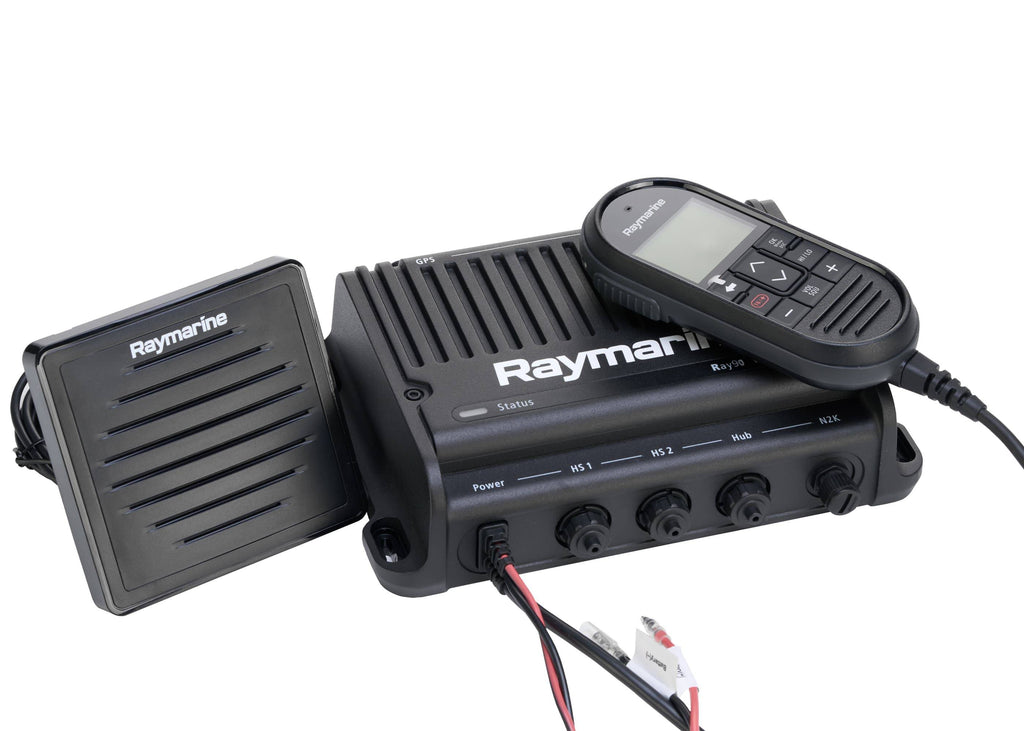

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.
Features:
- Black box design for discreet mounting & dashboard space saving
- Feature rich multi-station capable VHF radio
- Wireless handset and active speaker available
- Wired handset and passive speaker included
- Expandable to 2 handsets
- Built-in loudhailer and fog signal generator
- GPS receiver (optional external antenna)
- Class D Digital Selective Calling
- Simple NMEA2000 and NMEA0183 Networking
Specifications:
- Power:
  - Nominal Supply Voltage: 12V DC (with over voltage protection)
  - Operating Voltage Range: 10.2V DC to 16V DC
  - Fuse Requirements:
    - Inline Fuse = 10A
    - Thermal Breaker = 7A
  - Current Consumption:
    - Less than 6A at high power (13.6V)
    - Standby: 600 mA
    - Receive: 2A
    - Loud Hailer: 3A (8 Ω) / 6A (4 Ω)
    - LEN: 1
- Environmental:
  - Operating Temperature: -25ºC (-13ºF) to +55ºC (131ºF)
  - Storage Temperature: -25ºC (-13ºF) to +70ºC (158ºF)
  - Relative Humidity: 95%
  - Water Proofing: IPX6 & IPX7
- Connections:
  - Wired Handsets: x2 via HS1 and HS2 connectors
  - Wireless Hub: x1 via Hub connector
  - GNSS (GPS) Antenna: x1 via GPS connector (TNC)
  - VHF Antenna / Splitter: x1 via VHF connector (50 Ohm SO239)
  - NMEA 0183 Input: x1 via bare ended wires on data cable
  - NMEA 0183 Output: x1 via bare ended wires on data cable
  - NMEA 2000 / SeaTalkng: x1 via N2K (DeviceNet) connector
  - Loud Hailer: x1 via bare ended wires on data cable
- VHF Transmitter:
  - Channels: All available US, International and Canadian VHF marine bands
  - Frequency Range: 156.025 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
  - Frequency Stability: +/- 1.5 ppm
  - Channel Spacing: 25 kHz
  - Power Output:
    - Low Power Setting — 1 W
    - High Power Setting — 25 W
  - Spurious Emissions: Better than –36 dBm at 25 W (Less than 0.25 μW)
  - Maximum Deviation: +/- 5 KHz
  - Antenna Impedance: 50 Ohms (typical)
- Receiver:
  - Receiver Type: Double Conversion Super Heterodyne
  - Channels: All available US, International and Canadian VHF marine bands
  - Frequency Range: 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels)
  - Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
  - Squelch Sensitivity: Less than -2 dBμ EMF
  - Hum and Noise: Better than -40 dB
  - Audio Distortion: Less than 10%
  - Receiver Sensitivity:
    - Distance — 119dBm (0.25uV) @ 12dB SINAD (typical)
    - Local — 110dBm (0.7uV) @ 12dB SINAD (typical)
  - Adjacent Channel Selectivity: More than 70 dB
  - Spurious Response Rejection: More than 70 dB
  - Inter Modulation Rejection: More than 68 dB
- GNSS (GPS):
  - Channels: 72
  - Cold Start: 29 seconds
  - Receiver IC Sensitivity:
    - Tracking and navigation = -167 dBm
    - Reacquisition = -160 dBm
    - Cold Start = -146 dBm
    - Hot Start = -156 dBm
  - GNSS Compatibility:
    - GPS
    - GLONASS
    - Beidou
  - SBAS Compatibility:
    - QZSS
    - WAAS
    - EGNOS
    - MSAS
    - GAGAN
  - Special Features: Active Jamming and Interference Reduction
  - Operating Frequency:
    - GPS L1 C/A
    - GLONASS L10F
    - Beidou B1
  - Signal Acquisition: Automatic
  - Almanac Update: Automatic
  - Geodetic Datum: WGS-84 (alternatives available through Raymarine MFD)
  - Refresh Rate: 20 Hz (20 times per second Concurrent GNSS)
  - Antenna:
    - External — An external passive antenna is required
  - Horizontal Position Accuracy:
    - Autonomous = 2.5m (8.2 ft)
    - SBAS = 2m (6.56 ft)
Manufacturer: Raymarine
Model Number: Ray90
Part Number: E70492
