  • Sale
  • $249.95
  • 1 available
  • Raymarine ST40 E22048 Boat Marine Electronic Compass System Display
  • Raymarine ST40 Compass system offers all essential heading information, big and clear display with sharp digits with a fluxgate sensor included.
  • ST40 Compass could be installed as a master display connected to the included fluxgate transducer or as a repeater for displaying heading data at multiple locations.
  • The ST40 Compass System is SeaTalk compatible and integrates with Raymarine autopilots, Raymarine Chartplotters (multifunction displays) and other navigation equipment.

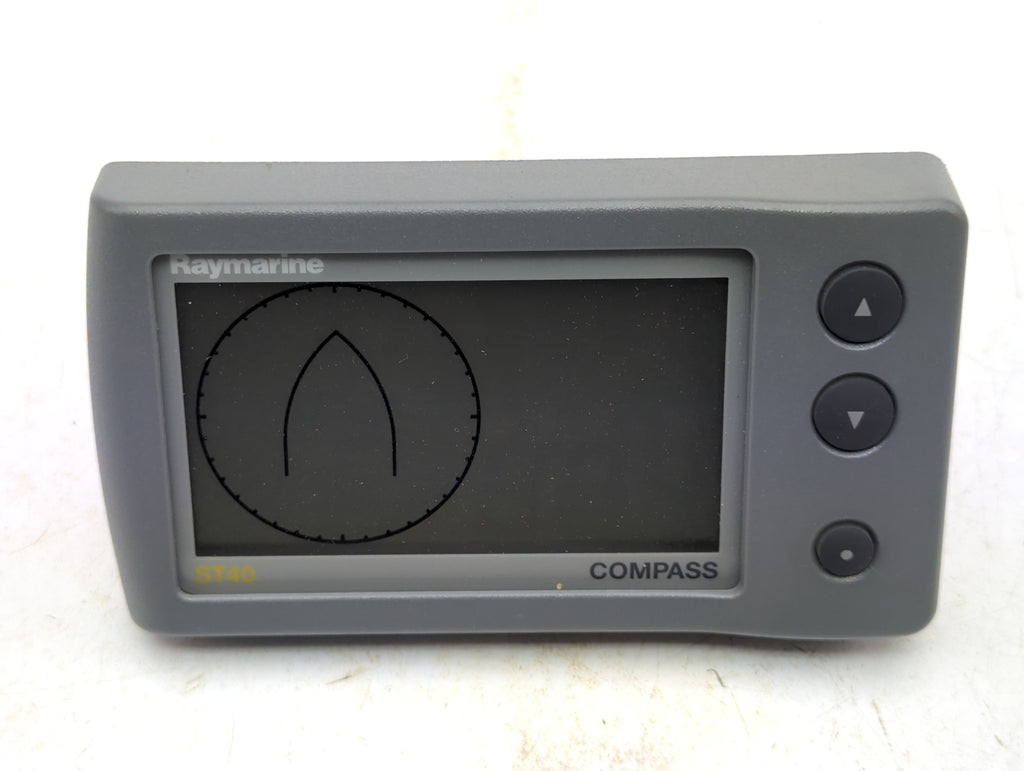

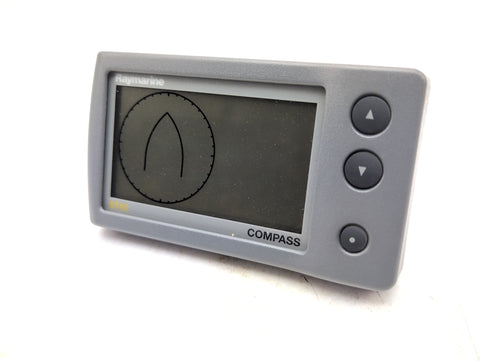

  • The ST40 Compass System has a big high contrast LCD display with extra-large 7 segment 28mm sized digits and a 36 segment analogue dial display for excellent visibility in all lighting conditions and 3 levels of display-backlighting for night use.
  • The ST40 Compass displays heading data in true and magnetic bearing mode and allows the user to lock a bearing manually or automatically via a Raymarine autopilot course computer. In this mode ST40 Compass shows deviations from locked bearing and the direction to steer to achieve the locked bearing heading. ST40 Compass displays current compass heading plus locked heading, has ‘off course’ alarms and can be used as a ‘Man Over Board’ repeater.
  • Specifications:
    • Supply Voltage: 10 to 16 VDC
    • Current Consumption (12V Supply): 20 mA typical. 60 mA with maximum backlighting
    • Operating Temperature: 0°C to +70°C
    • Interfaces: SeaTalk
    • Overall Dimensions: 126 X 70 X 38 mm (5.00” X 2.80” X 1.55”)
    • Boss Diameter: 55mm (2.20”)
    • Heading Range: 0 to 359°
    • Off Course Alarm: 2° to 30° (Port or Starboard)
    • CE - conforms to: 89/336/EC(EMC), EN60945. 94/25/EC(RCD), EN28846 (applies to transducer only)
  • Features:
    • SeaTalk compatible for networking to other instruments, multifunction displays and autopilots
    • High contrast LCD display for excellent visibility
    • 3 levels of display backlighting for night use
    • Large digits and analog readout for visibility across the cockpit
    • True or magnetic bearing information
    • User or autopilot initiated locked bearing mode
    • Integrated direction to steer and course deviation indicators
    • User adjustable off course alarm
    • Master or repeater operation for repeating compass data at another location
  • Manufacturer: Raymarine
  • Model Number: ST40
  • Part Number: E22048

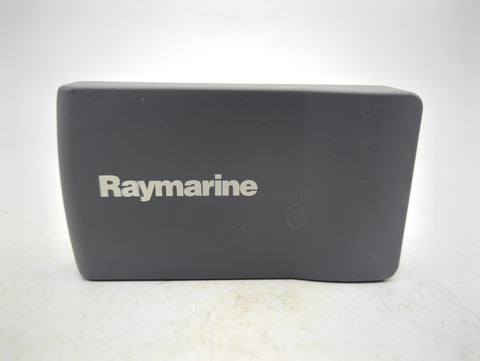

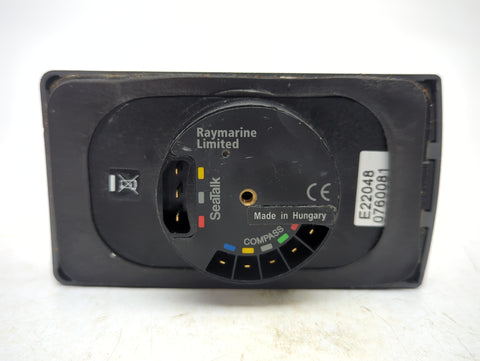

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
