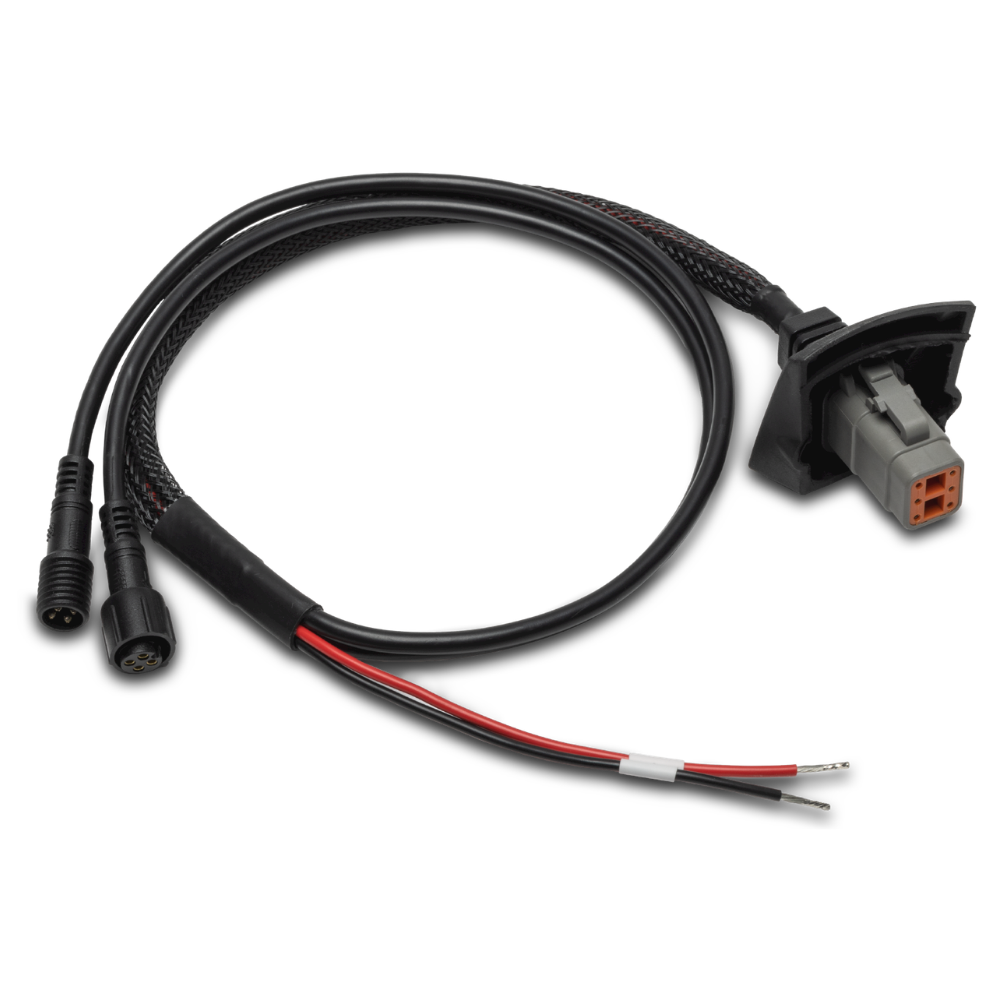

Rockford Fosgate RGB-Y6P Color Optix PMX-RGB Gen-2 6-Pin RGB "Y" Adapter

Rockford Fosgate RGB-Y6P Color Optix PMX-RGB Gen-2 6-Pin RGB "Y" Adapter

  • Sale
  • $28.95
  • 2 available
  • Rockford Fosgate RGB-Y6P Color Optix PMX-RGB Gen-2 6-Pin RGB "Y" Adapter
  • Plug-and-play Y-adaptor simplifies the installation of daisy-chaining Color Optix moto-can or wake-can speakers. Simply connect this Y-adaptor to the RGB controller or RGB-6/16/25 extension cable, plug-in the speaker's Deutsch connector, then use the additional 4-pin female connector to daisy-chain an additional speaker. The remaining red/black wire can be used to wire the speaker to the amplifier's output terminals.
  • Features:
    • Y-adapter allows for daisy-chaining multiple speakers on a single run
    • True Marine ecoSystem that works together with Color Optix controller
    • No cutting, no splicing
    • Ensures connections remain waterproof and safe from elements.
    • Compatible with M1/M2 speakers and subwoofers
    • 2 conductor leads for speaker (+) and (-)
    • Element Ready Deutsch / Amphenol connector IP7 rated
  • Specifications:
    • Cable Length: 18” (0.46m)
    • Conductor: (4) 22 AWG, (2) 18 AWG
    • Connectors: (1) Deutsch/Amphenol #DT06-6S, (1) 4-Pin Mini Male, (1) 4-Pin Mini Female
  • Manufacturer: Rockford Fosgate
  • Model Number: RGB "Y" Adapter
  • Part Number: RGB-Y6P
  • For use with:

MOTO-CAN COMPATIBILITY

Year Model Description
2021—current M0WL-65MB1 M0 6.5” Element Ready™ 2-Way Wake Tower Speakers
2021—current M1WL-65MB M1 6.5” Color Optix™ 2-Way Wake Tower Speakers
2021—current M2WL-65MB M2 6.5” Color Optix™ 2-Way Wake Tower Speakers

WAKE-CAN COMPATIBILITY

Year Model Description
2021—current M2WL-8 M2 8” Color Optix™ 2-Way Wake Tower Speakers
2021—current M2WL-8B M2 8” Color Optix™ 2-Way Wake Tower Speakers - Black
2021—current M2WL-8H M2 8” Color Optix™ 2-Way Horn Wake Tower Speakers
2021—current M2WL-8HB M2 8” Color Optix™ 2-Way Horn Wake Tower Speakers - Black
2022—current M2WL-10H M2 10” Color Optix™ 2-Way Horn Wake Tower Speakers
2022—current M2WL-10HB M2 10” Color Optix™ 2-Way Horn Wake Tower Speakers - Black
