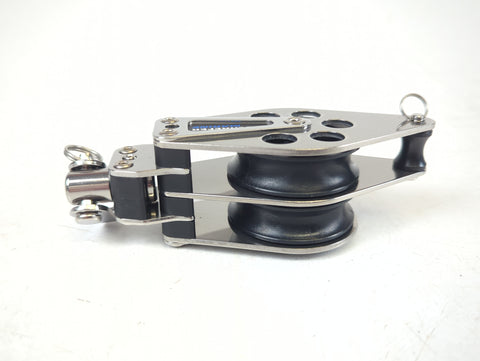

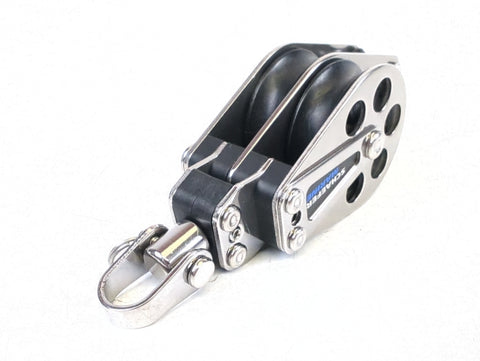

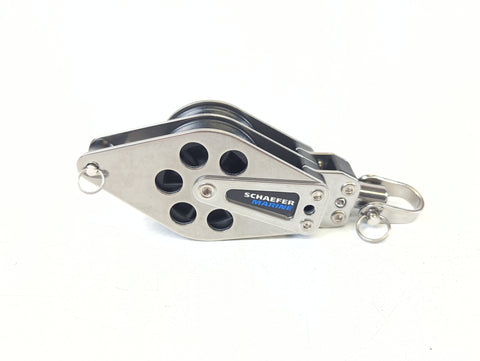

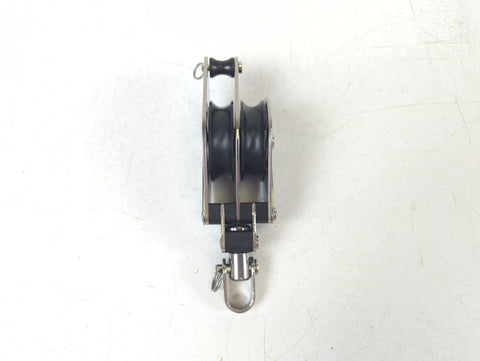

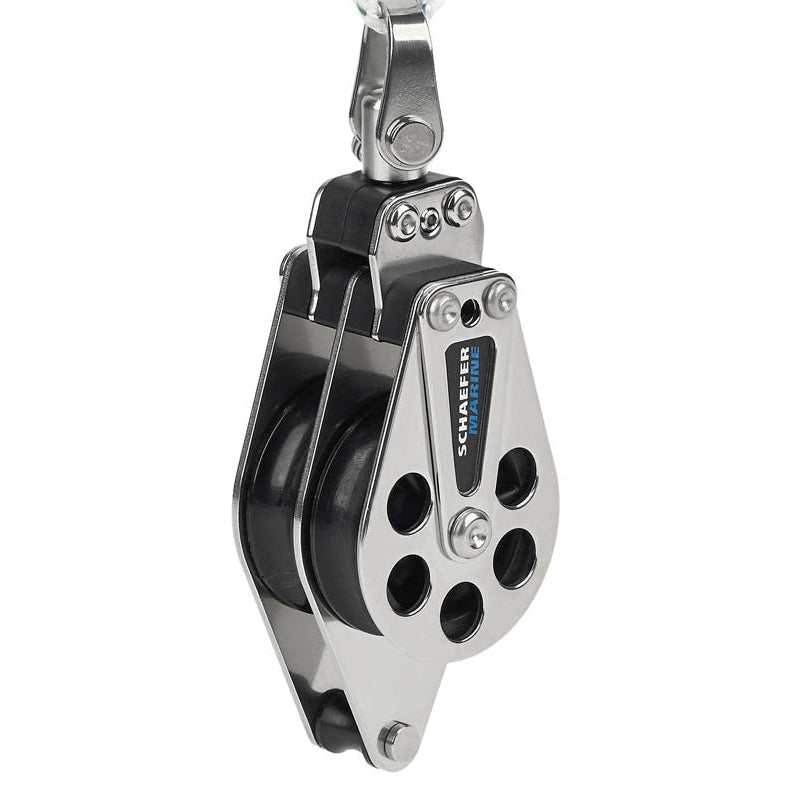

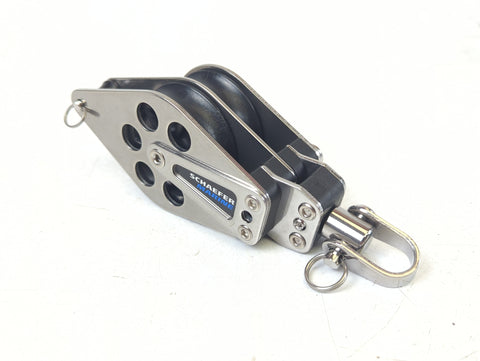

Schaefer 505-35 Sailboat Sailing Stainless Steel 5 Series Double Block with Becket
Schaefer 505-35 Sailboat Sailing Stainless Steel 5 Series Double Block with Becket
Schaefer 505-35 Sailboat Sailing Stainless Steel 5 Series Double Block with Becket
Schaefer 505-35 Sailboat Sailing Stainless Steel 5 Series Double Block with Becket
Schaefer 505-35 Sailboat Sailing Stainless Steel 5 Series Double Block with Becket
Schaefer 505-35 Sailboat Sailing Stainless Steel 5 Series Double Block with Becket
Schaefer 505-35 Sailboat Sailing Stainless Steel 5 Series Double Block with Becket

Schaefer 505-35 Sailboat Sailing Stainless Steel 5 Series Double Block with Becket

  • Sale
  • $219.95
  • 4 available
  • Schaefer 505-35 Sailboat Sailing Stainless Steel 5 Series Double Block with Becket
  • Specifications:
    • Sheave Diameter: 2" (51mm)
    • Maximum Line Diameter: 7/16" (11mm)
    • Pin Diameter: 1/4" (6mm)
    • Length: 6-3/16" (157mm)
    • Width: 2-1/8" (54mm)
    • Thickness: 1-21/32" (42mm)
    • Weight: 12.8oz. (363g)
    • Safe Working load: 1750 lbs (795kg)
    • Material: Stainless Steel
  • Double block with Stainless Steel cheeks and becket
  • Delrin(tm) sheaves ensure smooth operation with high safe working load.
  • Swivel head may be locked in place to avoid twist.
  • Works with 505-93 for a 5:1 Purchase
  • Manufacturer: Schaefer
  • Model Number: 5 Series 2" (51mm) Sheave
  • Part Number: 505-35
