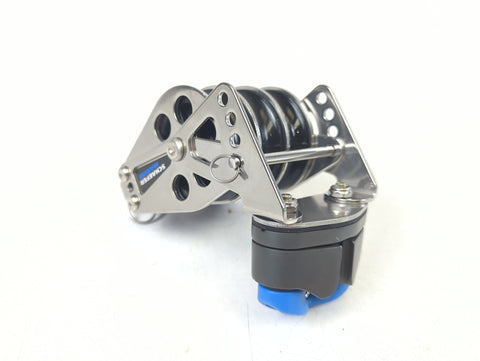

Schaefer SK-7076 505-93 + 505-35 Stainless Steel 5 Series 5:1 Purchase Lifting Block Set
-
Schaefer SK-7076 505-93 + 505-35 Stainless Steel 5 Series 5:1 Purchase Lifting Block Set

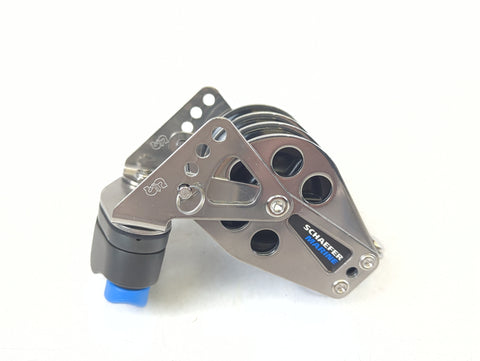

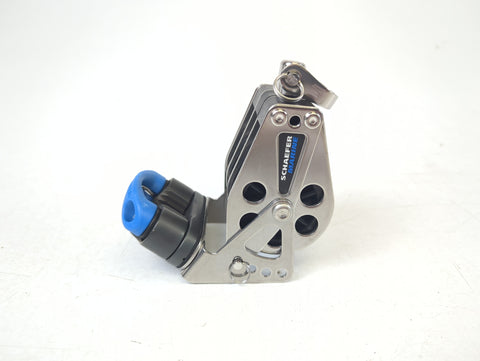

- 505-93 Triple Block Specifications:
- Sheave Diameter: 2" (51mm)
- Sheave Width: 9/16" (14mm)
- Maximum Line Diameter: 7/16" (11mm)
- Pin Diameter: 1/4" (6mm)
- Length: 5-17/32" (140mm)
- Width: 4"(101mm)
- Thickness: 2-5/16" (59mm)
- Weight: 1lb 3 oz (482g)
- Safe Working load: 1750 lbs (795kg)
- Material: Stainless Steel

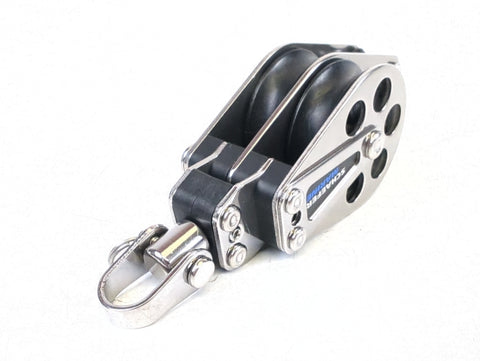

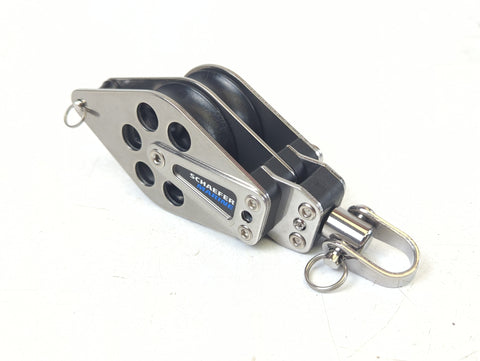

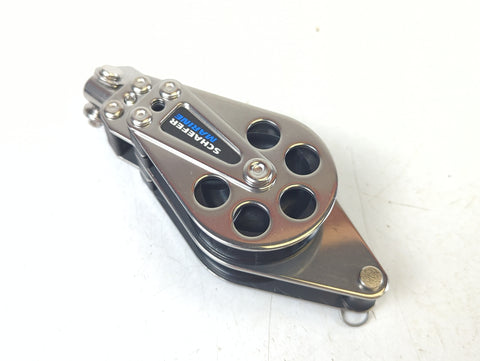

- 505-35 Double Block Specifications:
- Sheave Diameter: 2" (51mm)
- Maximum Line Diameter: 7/16" (11mm)
- Pin Diameter: 1/4" (6mm)
- Length: 6-3/16" (157mm)
- Width: 2-1/8" (54mm)
- Thickness: 1-21/32" (42mm)
- Weight: 12.8oz. (363g)
- Safe Working load: 1750 lbs (795kg)
- Material: Stainless Steel

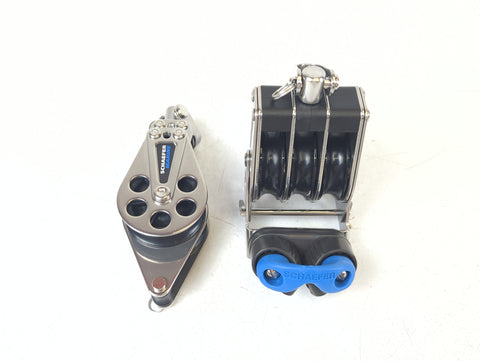

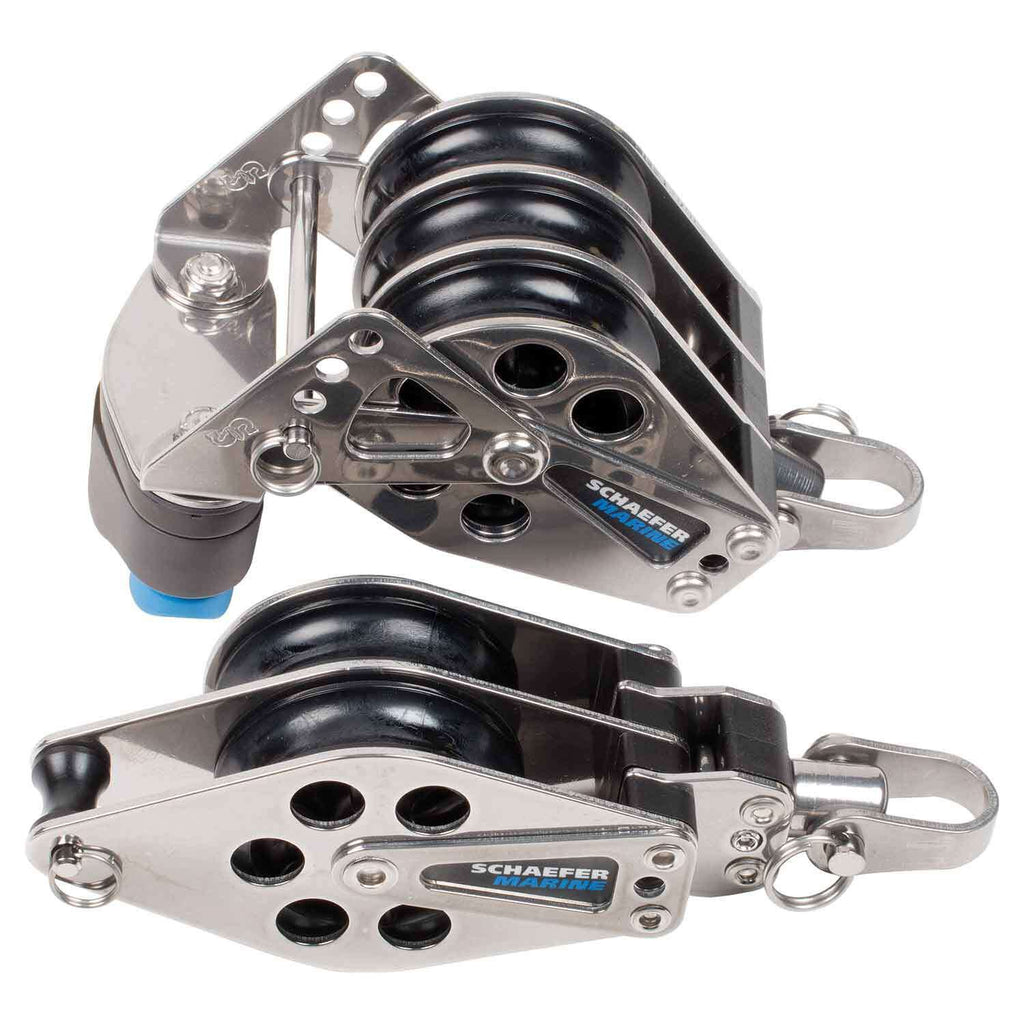

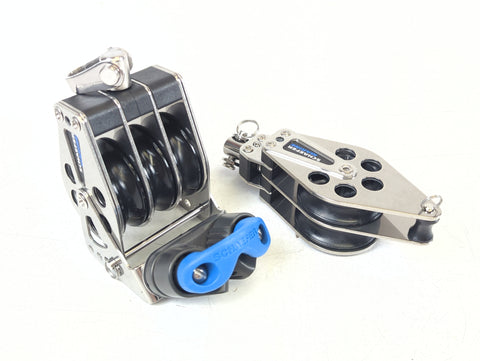

- Includes:
- 505-93 Triple Block
- 505-35 Double Block
- Manufacturer: Schaefer
- Model Number: 5 Series
- Part Number: SK-7076 = 505-93 + 505-35
