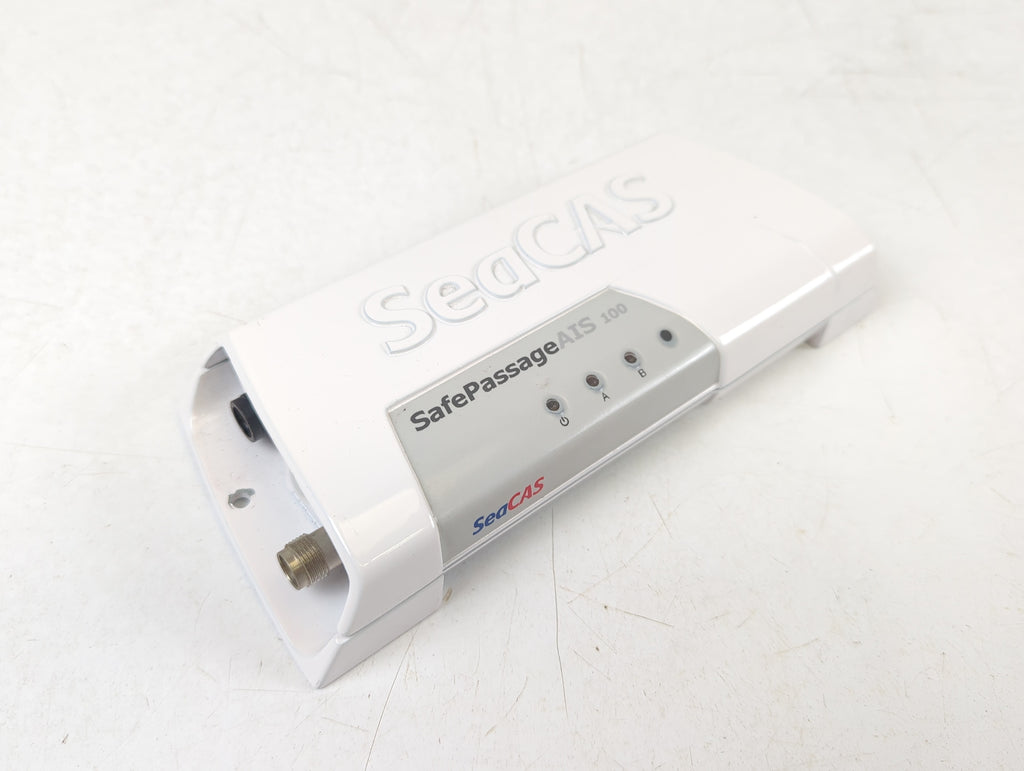

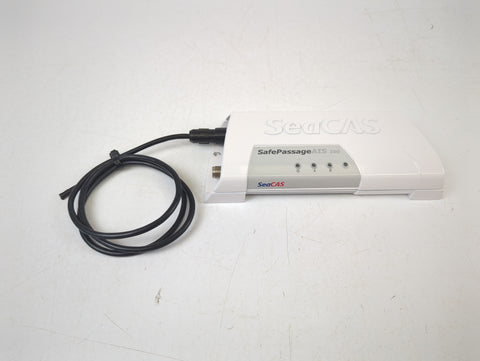

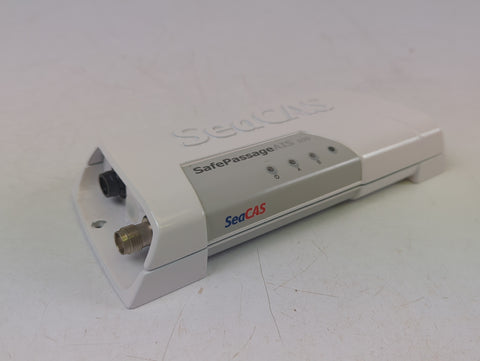

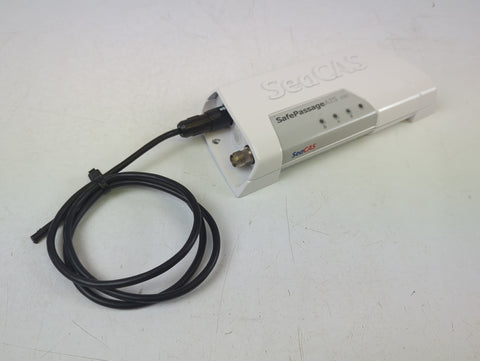

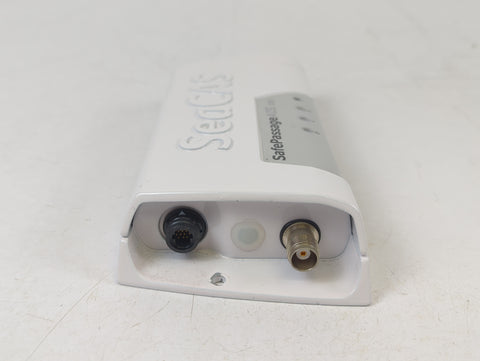

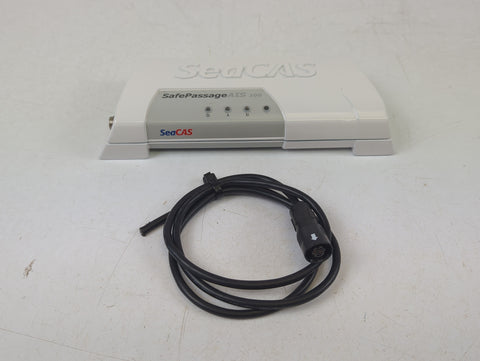

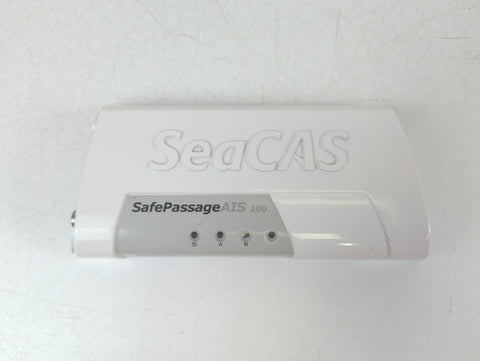

The SeaCAS SafePassageAIS100 is a compact marine Automatic Identification System (AIS) receiver module designed to enhance collision avoidance and situational awareness on the water.
SeaCAS SafePassage provides you with critical data:
Information about nearby commercial vessels (name, type, size, course, speed).
Their Closest Point of Approach (CPA) and the exact Time of Point of Closest Approach (TCPA).
The name and call-sign of ships around you to hail them on VHF in case of an impending collision.
In the event of an impending collision, the SeaCAS SafePassage gives you the information and response time you need to make good decisions.
Features:
Receive-Only Functionality: Provides essential visibility of other AIS-equipped vessels without transmitting your own position.
NMEA 0183 Output: Connects via a standard NMEA0183 interface for compatibility with a wide range of marine electronics.
Enhanced Situational Awareness: Integrates vessel traffic data onto your navigation display to aid in collision avoidance.
Compact Design: Designed as a small, easy-to-install black box unit.
Specifications:
Type: AIS Receiver Module
Power Rating: 1.2W at 5V DC
Bandwidth: 25 kHz
Output Interface: NMEA0183
Baud Rate: 38400 KBPS

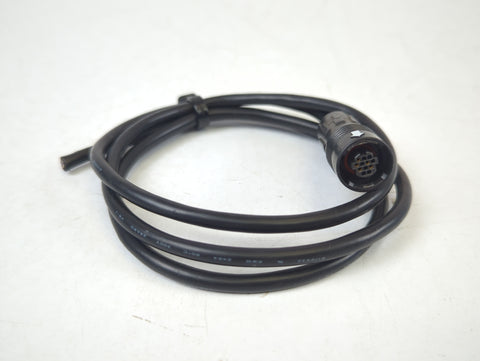

Connection: Furuno 6-Pin NMEA0183 Cable
Dimensions (Approx.) 8” X 4” X 1-1/2" (203.2 X 101.6 X 38.1 mm)
Operating Temperature Range: -15 to 55 Celsius
Lightweight, compact design
Rugged and waterproof fiberglass tube resistant to saltwater, vibration per IEC 60945
Receives data from as far away as 30 nautical miles
Receives all AIS VDL messages simultaneously on both channels
Uses industry standard IEC 61162-2/NMEA 0183 message protocol
Sensitivity to –107dBm
GMSK Demodulation
70dB adjacent channel rejection
AIS receivers for navigation software are PC and Mac compatible
Manufacturer: SeaCAS
Model Number: AIS Receiver Module
Part Number: SafePassageAIS100
Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. MMSI may need to be reset by an authorized dealer. See Photos. This unit is being SOLD AS-IS. This listing is only for what is shown in the photos. No other parts or pieces are included.
