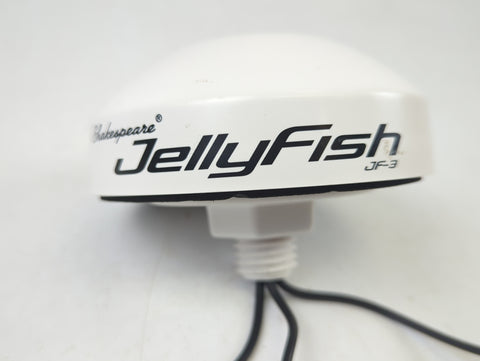

Shakespeare JellyFish JF-3 Boat Marine Multi-Band Wi-Fi Cellular GPS Antenna
Shakespeare JellyFish JF-3 Boat Marine Multi-Band Wi-Fi Cellular GPS Antenna
Shakespeare JellyFish JF-3 Boat Marine Multi-Band Wi-Fi Cellular GPS Antenna

Shakespeare JellyFish JF-3 Boat Marine Multi-Band Wi-Fi Cellular GPS Antenna

  • Sale
  • $99.95
  • 1 available
  • Shakespeare JellyFish JF-3 Boat Marine Multi-Band Wi-Fi Cellular GPS Antenna
  • The JellyFish is a 3-way omni-directional, IP67 waterproof antenna for marine communication and transportation harsh environment applications. This antenna delivers advanced antenna technology for GPS/2G/3G/4G/WiFi in a compact package. The functions of WiFi include 802.11a, 802.11b/g/n and emerging 802.11ac. The antenna has its own ground-plane and can radiate on any mounting surface such as metal, plastic, or fiberglass without affecting performance.
  • Features:
    • 3-in-1 antenna functions
    • Durable and robust
    • Versatile mounting system
    • Waterproof IP67
    • Built-in ground-plane
  • Specifications:
    • Technical:
      • Dimensions: 1.6” X 4” (40.6 X 101.6 mm)
      • Mounting Type: Flush, included pedestal
      • Mounting Thread: M20 X 2.5mm

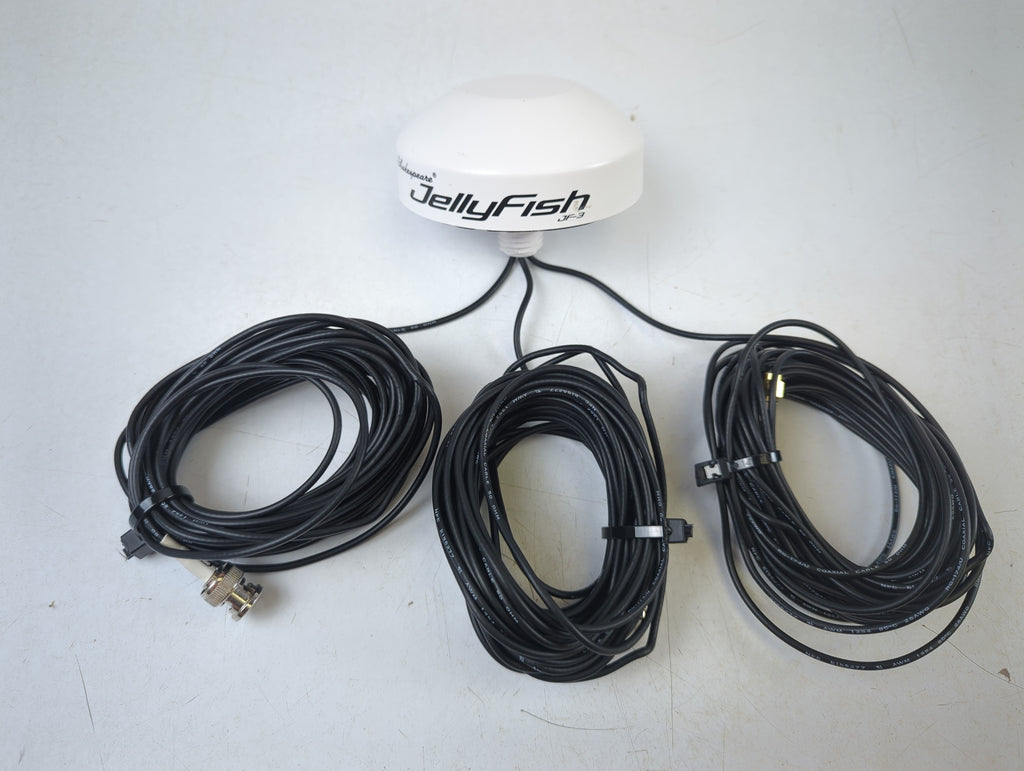

      • Connectors: WiFi (R/P SMA Male), GPS (BNC Male), Cellular (FME Female)
    • Wi-Fi:
      • Average Peak Gain: 4.8dBi - 2.4approx. 2.5GHz, 6.9dBi - 5approx. 5.4GHz, 7.7dBi - 5.4approx. 5.9GHz
      • Average Efficiency: 73% - 2.4approx. 2.5GHz, 65% - 5approx. 5.4GHz, 70% - 5.4approx. 5.9GHz
      • VSWR Max: 3.0:1
      • Impedance: 50 Ohm
      • Connector: R/P SMA Male
      • Pattern Type/Polarization: Omni-directional/linear
      • Power Handling: 25W
    • GPS:
      • Frequency Band: 1575.42 ± 2MHz
      • VSWR: 1.5 Max
      • Bandwidth: 20MHz Min. at -10dB
      • Axial Ratio/Polarization: 3dB Max. on a 70mm x 70mm ground plane / Right hand
      • Peak Gain: 4dBic Min. at 0 degrees on a 70mm x 70mm ground plane
      • Gain & radiation coverage: ≥-4dBic at -90°≤Ø≤90° (over 75% volume)
      • Connector: BNC Male
  • Manufacturer: Shakespeare
  • Model Number: JellyFish
  • Part Number: JF-3
  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
