The Simrad AC42 Autopilot Computer 22089858 is a high-quality navigation system designed for marine enthusiasts. Made by the reputable brand Simrad in Norway, this autopilot computer is specifically tested for compatibility with AP24, AP28 and AP44 systems. With its reliable performance and precision navigation capabilities, this product is essential for those looking to enhance their boating experience with modern technology.
Specifications:
Dimensions: 6.292” X 7.076” X 2.362” (210.6 X 179.7 X 60 mm)
SimNet Supply and Interface: 8-16V via SimNet
Supply Voltage: 12-24VDC
Power Consumption: 5W (Electronics), 0.5W (SimNet)
SimNet Network Load Factor (NL): 1
SimNet Ports (Input/Output): 1
Clutch/Bypass Current: 0.6mA - 3A
Reverse Voltage Indication: Yes
Motor/Solenoid Drive: 30A Continuous, 50A for 1 sec. Peak
Optional Rudder Feedback Input: Frequency Signal, 3400Hz, 20 Hz/deg.
External Alarm: Open Collector
Operating Temperature Range: 0 to +55 °C (+32 to +130 °F)
Storage Temperature Range: -30 to +70 °C (-22 to +168 °F)
For use with:
Simrad AP24, AP28 and AP44 Autopilots
Manufacturer: Simrad
Model Number: AC42
Part Number: 22089858, 000-10867-001

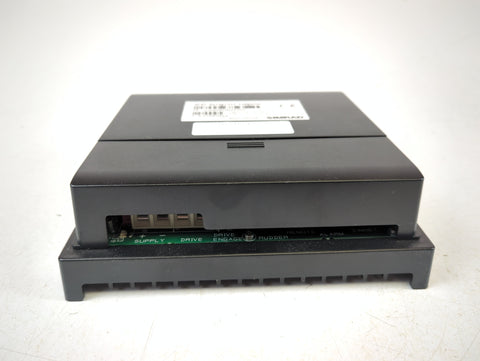

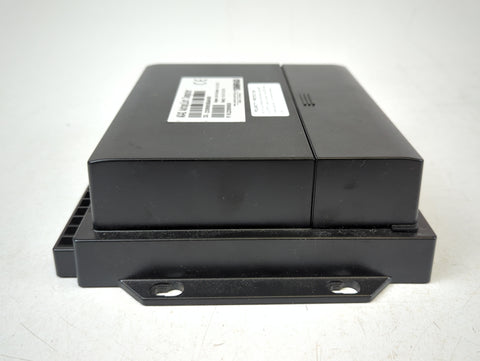

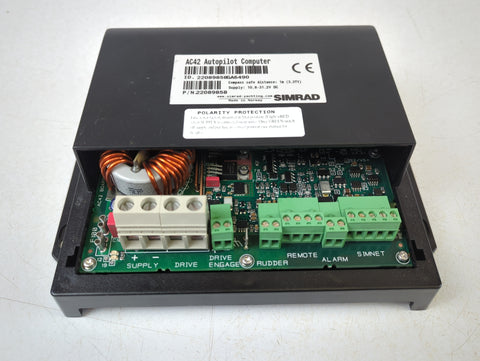

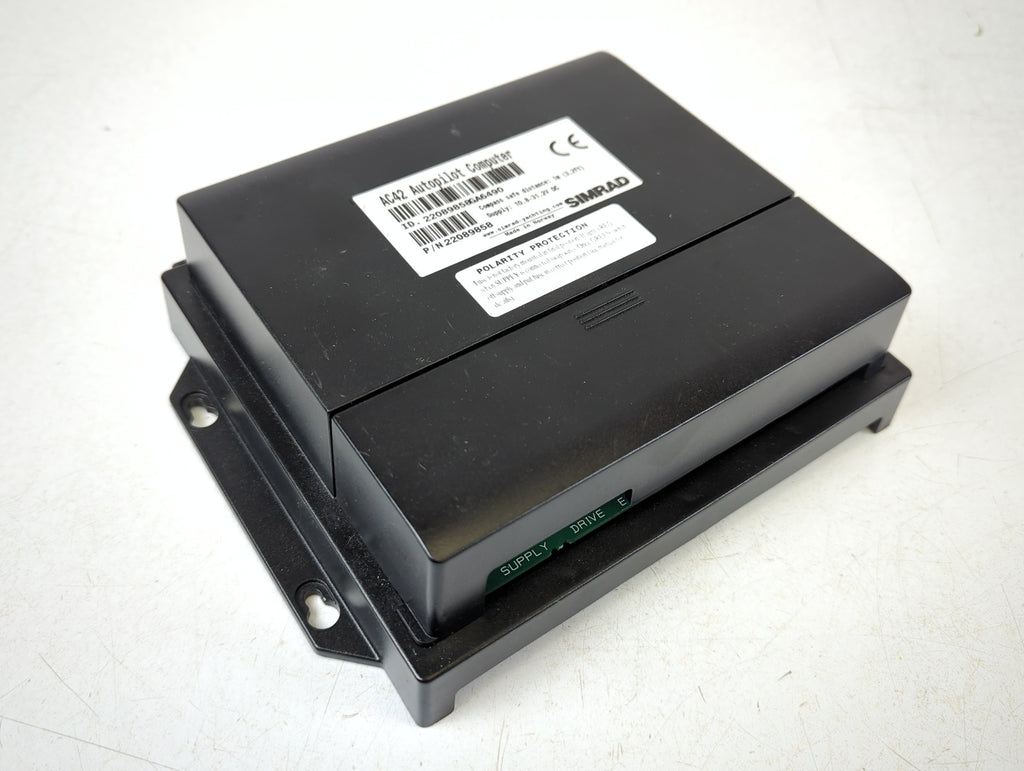

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
