Simrad HS70 000-10453-001 Marine NMEA 2000/0183 10/20 Hz GPS Satellite Compass
Simrad HS70 000-10453-001 Marine NMEA 2000/0183 10/20 Hz GPS Satellite Compass
Simrad HS70 000-10453-001 Marine NMEA 2000/0183 10/20 Hz GPS Satellite Compass
Simrad HS70 000-10453-001 Marine NMEA 2000/0183 10/20 Hz GPS Satellite Compass
Simrad HS70 000-10453-001 Marine NMEA 2000/0183 10/20 Hz GPS Satellite Compass
Simrad HS70 000-10453-001 Marine NMEA 2000/0183 10/20 Hz GPS Satellite Compass

Simrad HS70 000-10453-001 Marine NMEA 2000/0183 10/20 Hz GPS Satellite Compass

  • Sale
  • $1,399.95
  • 1 available
  • Marine NMEA 2000/0183 10/20 Hz GPS Satellite Compass
  • Physical Specifications:
    • Compass: 0.3m (11.8”)
    • Dimensions: 16.4” X 6.2” X 2.7” (417 X 158 X 69 mm)
    • Mounting Type: Fixed/Flushed Mount or Pole Mount
  • Electrical Specifications:
    • Power Consumption (Max.): 320mA
    • Power Consumption (Typical): 240mA
    • Recommended Fuse Rating: 2A
    • Supply Voltage: 6-36 VDC External or 12-16V via CAN
  • Environment Specifications:
    • Humidity: 100% Non-Condensing
    • Operating Temperature Range: -30 to +70 °C (-40 to +185 °F)
    • Waterproof Rating: IEC 60945
  • Connectivity:
    • N2K PG Ns: 126992, 127250, 127251, 127257, 127258, 128259, 129025, 129026, 129027, 129028, 129029, 129033, 129539, 129540
    • NMEA 0183 Sentences Supported: Output: GGA, HDG, HDT, HEV, ROT, VTG, ZDA
    • NMEA 2000 Connectivity: 1x CAN Micro-C port, 5 LEN
    • PC Connectivity: Via RS232 port for programming
  • Features:
    • Flush-mount or pole-mounted design.
    • Simplicity of a compass and GPS receiver in one.
    • Selectable 10 or 20 Hz position and heading updates.
    • Easy NMEA 2000 connectivity, with NMEA 0183 option.
    • Tracks heading, rate of turn, position, heave, roll, and pitch.
    • Highly accurate heading based on GPS data, free from magnetic interference.
    • Supports satellite-based augmentation systems (SBAS) for enhanced positional accuracy.
  • Manufacturer: Simrad
  • Model Number: HS70
  • Part Number: 000-10453-001

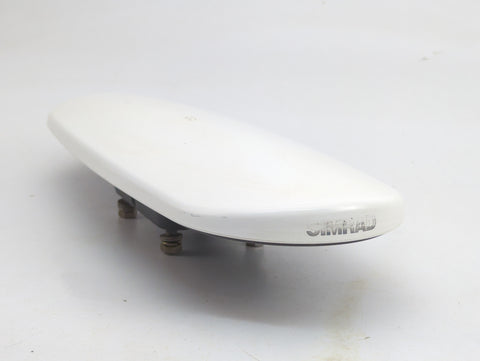

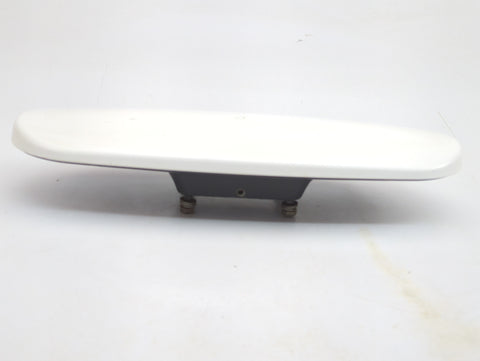

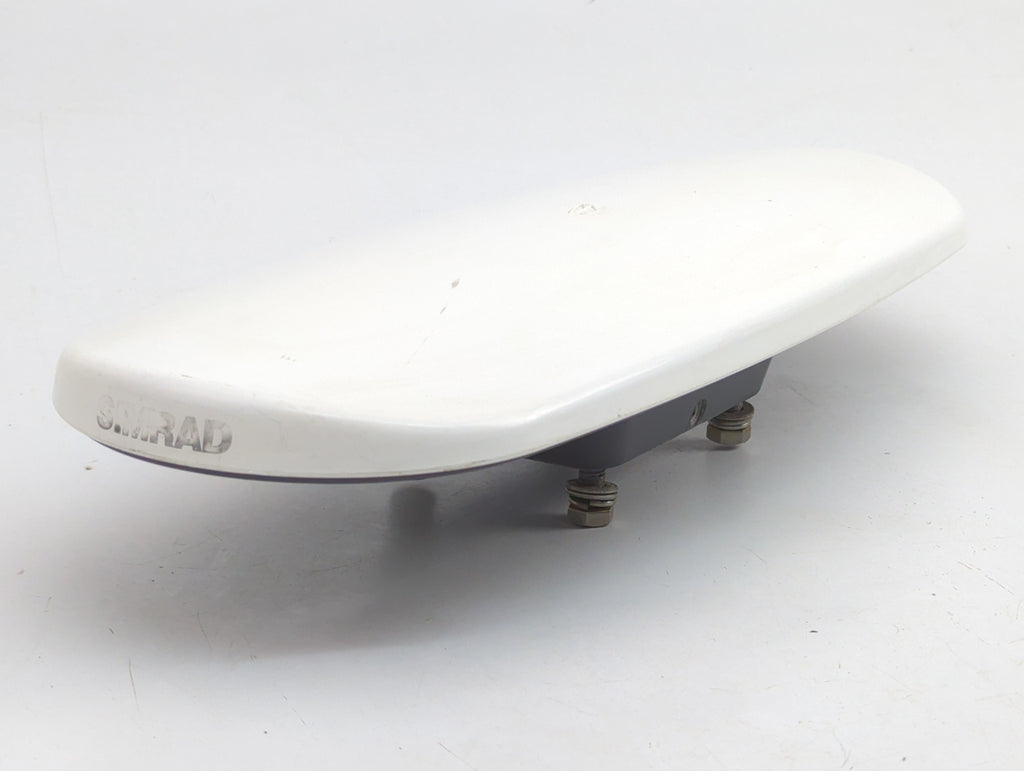

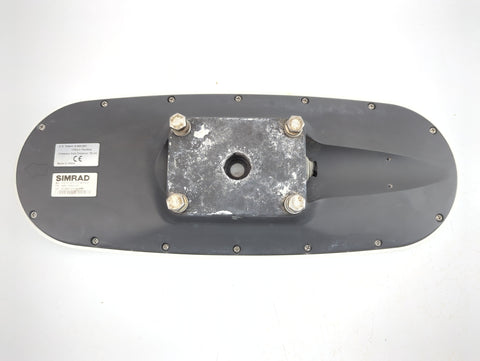

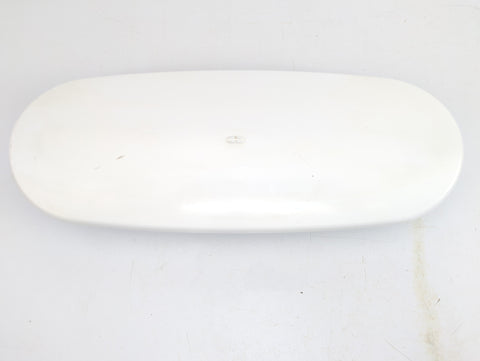

  • Condition: In Stock, Ready to Ship! This unit is in very good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
