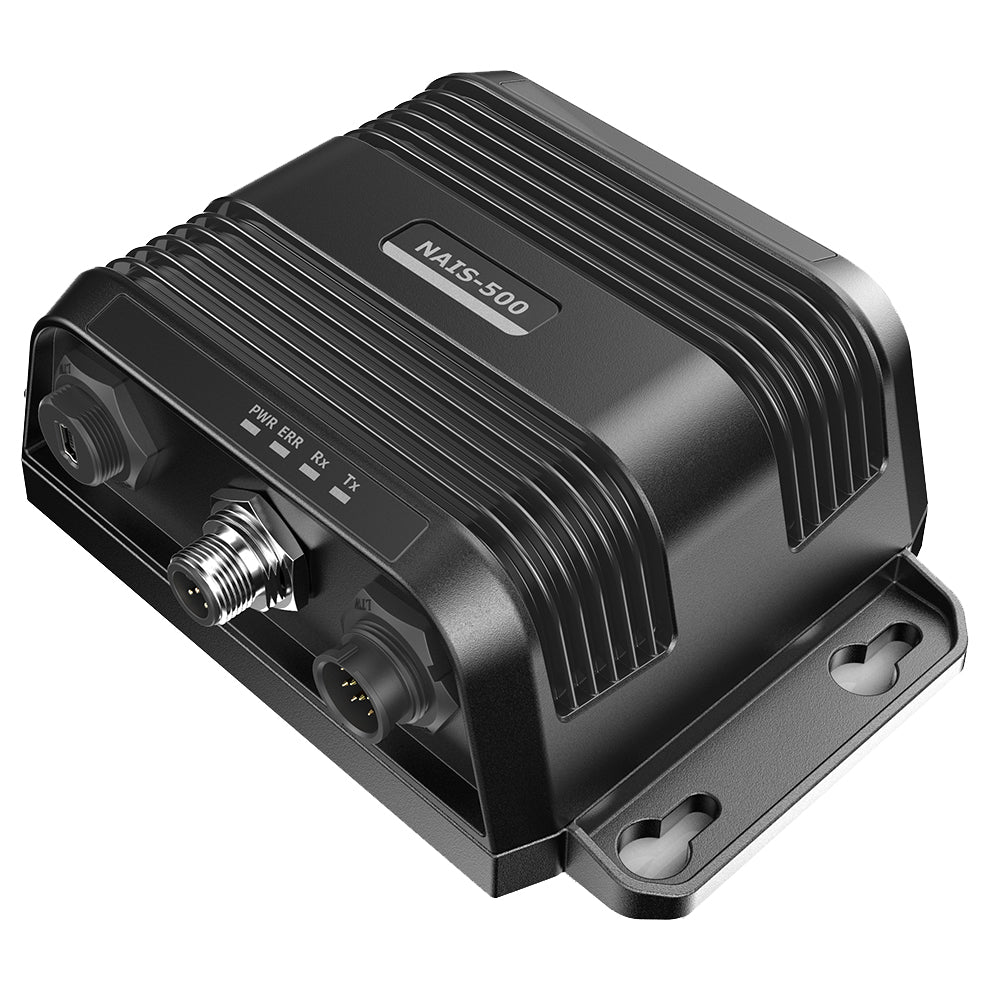

Simrad NAIS-500 Navico Lowrance B&G Boat Marine Class B AIS Transceiver
- Simrad NAIS-500 Navico Lowrance B&G Boat Marine Class B AIS Transceiver
- For networking with any NSS, NSO, or GO series chartplotter, multifunction display and Simrad RS VHF system
- Power:
- 12V to 24V DC (9.6V - 31.2V)
- Average Power consumption 170 mA at 12 VDC
- Peak current rating 2A
- GPS Receiver (AIS internal): 50-Channel IEC 61108-1 compliant
- Electrical Interfaces:
- USB
- NMEA 0183 38,400 k Baud (bi-directional)
- NMEA 0183 4,800 k Baud (bi-directional)
- NMEA 2000 LEN=1
- Connections:
- VHF Antenna Connector (SO-239)
- External GPS Antenna Connector (SMA)
- USB type Mini-B
- NMEA 2000 standard connector
- 12 way power input/NMEA 0183/External switch
- VHF Transceiver:
- AIS Transmitter x 1
- AIS Receiver x 2 (One receiver time shared between AIS and DSC)
- Frequency: 156.025 to 162.025 MHz in 25 kHz steps
- Output Power: 33 dBm ± 1.5 dB
- Channel Bandwidth: 25 kHz
- Channel Step: 25 kHz
- Modulation Modes:
- 25 kHz GMSK (AIS, TX and RX)
- 25 kHz AFSK (DSC, RX only)
- Bit Rate:
- 9600 b/s ± 50 ppm (GMSK)
- 1200 b/s ± 30 ppm (FSK)
- RX Sensitivity:
- Less than -107 dBm at 20% PER
- Co-channel 10 dB
- Adjacent channel 70 dB
- IMD 65 dB
- Blocking 84 dB
- Environmental:
- Water Resistant to IPX7
- Operating Temperature: -25ºC to +55ºC
- Tested to IEC 60945 'Protected' category
- Indicators: Power, TX timeout, error, silent mode status
- Manufacturer: Simrad, Navico, Lowrance, B&G
- Model Number: NAIS-500
- Part Number: 000-13611-001
-
Condition: New! In Stock, Ready to Ship! No original packaging.
