Simrad NSX 3007 000-15214-001 Boat Marine 7" Color Fishfinder Radar GPS MFD Chartplotter Display

  • Sale
  • $699.95
  • 1 available
  • Simrad NSX 3007 000-15214-001 Boat Marine 7" Color Fishfinder Radar GPS MFD Chartplotter Display
  • The future is here with NSX. Experience the simplicity of our latest operating system, introducing a redesigned charting experience, our fastest-ever auto-routing, and seamless integration for total control of your boat. NSX comes fully-equipped with integrations for Sonar, Radar, and Autopilot Systems.
  • Crafted specifically for fluidity and ease of use, with NSX you'll spend less time on the screen, and more time on your next adventure. 
  • Features:
    • Sonar sharing
    • Full Mercury Integration, inc. SmartCraft Connect and VesselView
    • SolarMAX IPS HD touchscreen with extreme viewing angles
    • Compatible with Active Imaging, featuring CHIRP, SideScan, and DownScan Imaging
    • Compatible with C-MAP DISCOVER X AND REVEAL X charts
    • Support for additional charting, such as CMOR Mapping, Standard Mapping and more to come
    • See near and far with full HALO radar support
    • Easy autopilot integration
    • Excellent third-party integration, inc. CZone, OmniSense, Dometic, Lumishore and more...
    • Simrad App integration 
    • Wireless connectivity, plus full Ethernet, USB, and NMEA 2000 networking capability
    • IP Camera video support
    • Setup Wizard to get you up and running quickly
    • Now compatible with SiriusXM WM-4 Weather and Fish Mapping with 1.9 software update
  • Specifications:
    • Display:
      • Backlight Color: White
      • Display Resolution: 1024 x 600 px
      • Display Size: 7” (177.8mm)
      • Screen Brightness: >1200 nits
      • Viewing Angles: 85° (top, bottom, left, and right)
    • Physical:
      • Compass Safe: 50 cm (1.7 ft)
      • Dimensions W x H x D: 195 X 123 X 72 mm (7.7” X 4.8” X 2.8")
      • Mounting Type: Bracket (supplied), panel mount or flush mount
      • Weight: 0.8 kg (1.7 lbs)
    • Electrical:
      • Power Consumption Max: 11.5 W (830 mA at 13.8 V)
      • Recommended Fuse Rating: 2A
      • Supply Voltage: 12 V DC (10 - 17 V DC min - max)
    • Environment:
      • Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
      • Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
      • Shock Vibration: 100,000 cycles of 20 G
      • Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
      • Waterproof Rating: IPX6 and IPX7

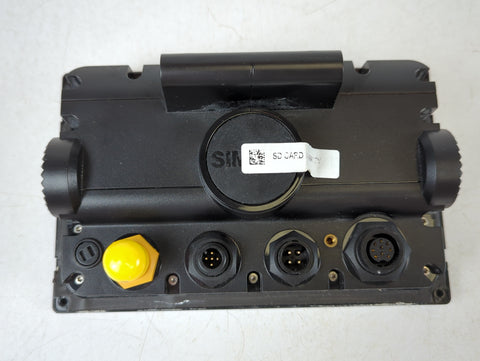

    • Connectivity:
      • Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic
      • Ethernet Ports: 1 port (5-pin connector)
      • Connectivity Wi Fi: IEEE 802.11b/g/n
      • NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
      • PC Connectivity: No
      • SD Card Storage: 1 MicroSD slot
      • Video: IP Camera support
    • MFD:
      • AIS: Receive AIS data over NMEA 2000
      • Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
      • Cartography included: Discover X chart card of North America
      • Digital Switching: Czone / DDS
      • GPS: Internal, 10Hz
      • Sonar Compatibility: One 9 pin Xsonic Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
      • Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
      • Weather: Sirius XM via WM4 module (USA only)
    • GPS:
      • Correction: 10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS
      • GPS Receiver Channels: 32 Channels
      • Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
      • Update Rate: 10Hz
    • Autopilot:
      • Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav
    • Cartography:
      • Charts Supported; C-MAP Tile (CMT) Discover X, Reveal X
    • Other:
      • Interface: Multi-touch screen
      • Languages: German (Deutsch)-English (English)-Dutch (Nederlands)-Danish (Dansk)-Spanish (Español)-French (Français)-Italian (Italiano)-Norwegian (Norsk)-Portuguese (Português)-Finnish (Suomi )-Swedish (Svenska)-Icelandic (Islenska)-Greek (ελληνικά)-Chinese (中文)-Turkish (Türkçe)-Estonian (Eesti)-Croatian (Hrvatski)-Lithuanian (Lietuvių)-Latvian (Latviešu )-Polish (Polski)-Chinese Simplified (中文)-Japanese (日本語)-Korean (한국어)-Ukrainian
  • Manufacturer: Simrad
  • Model Number: NSX 3007
  • Part Number: 000-15214-001

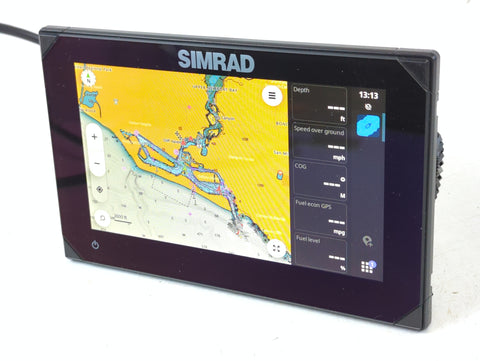

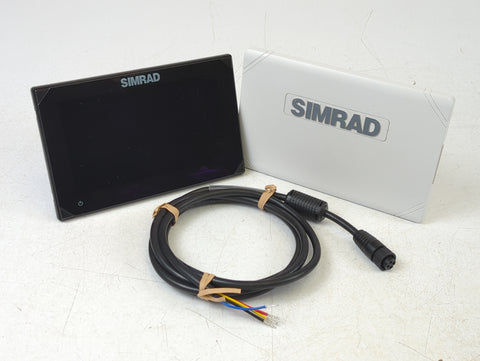

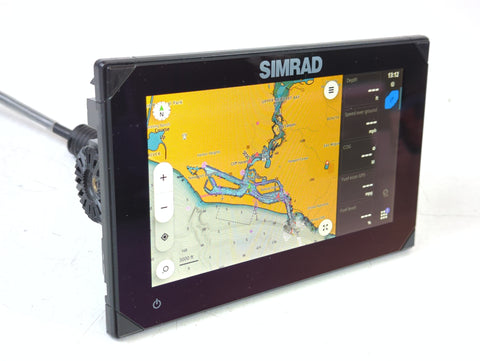

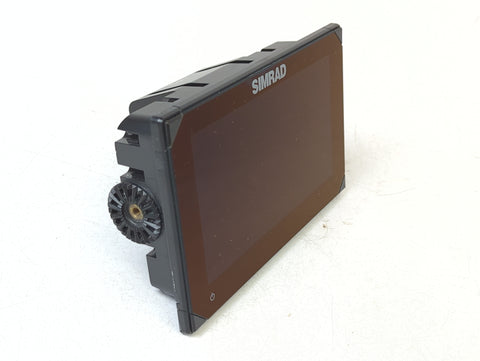

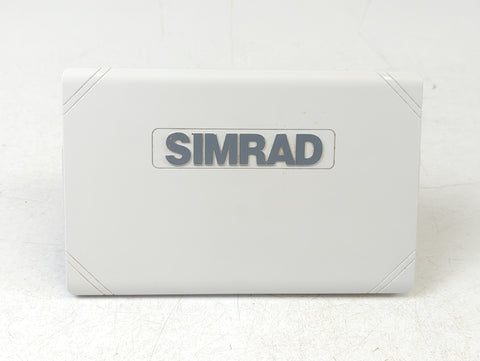

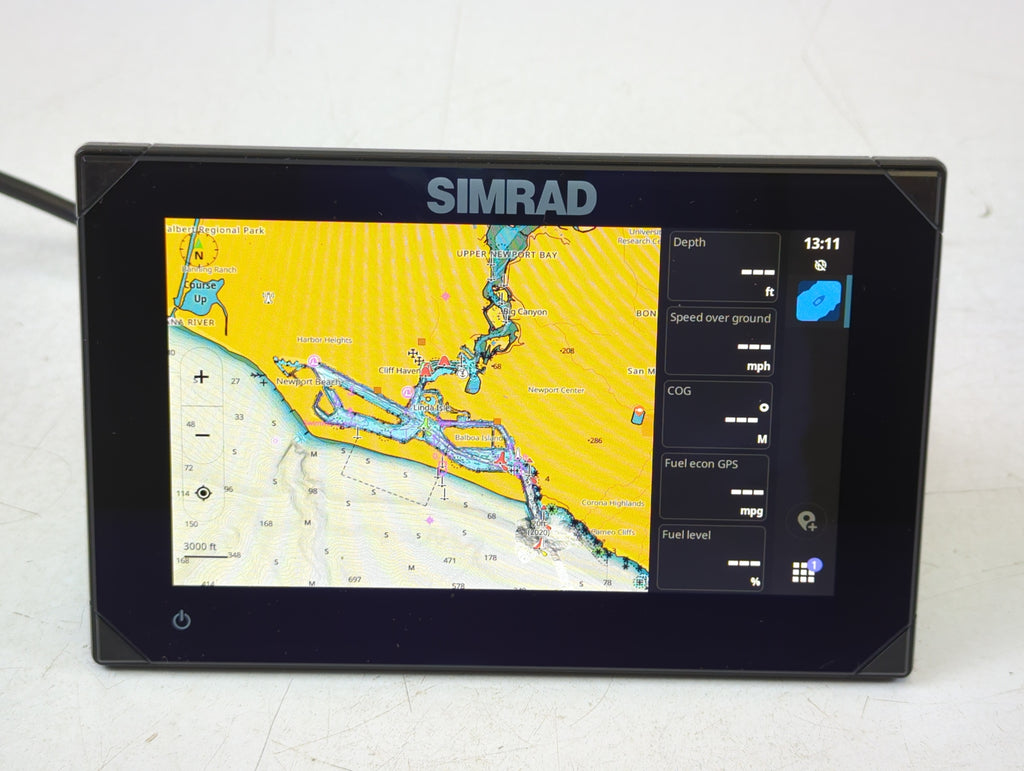

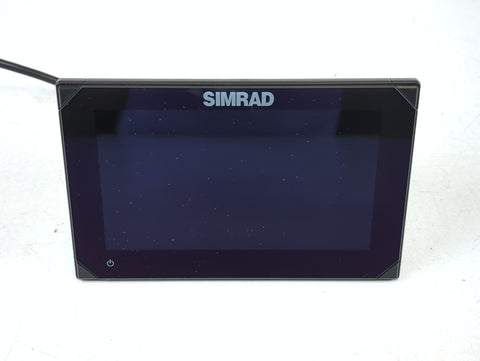

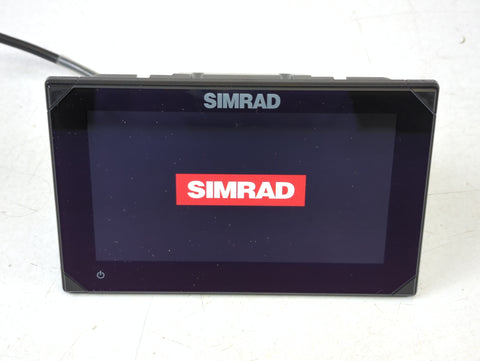

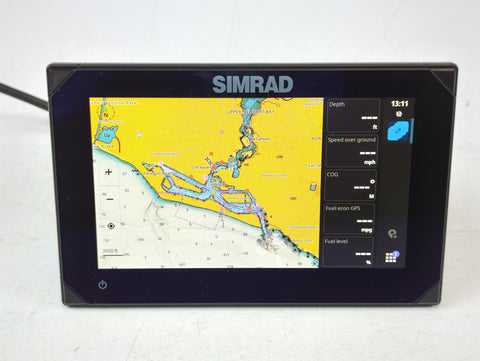

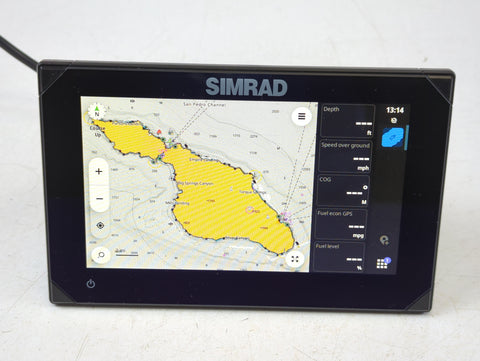

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
