  • Simrad Robertson AP9-MK3 20169199 Boat Marine Autopilot Control Unit

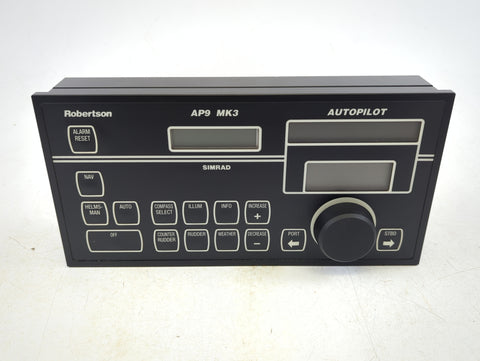

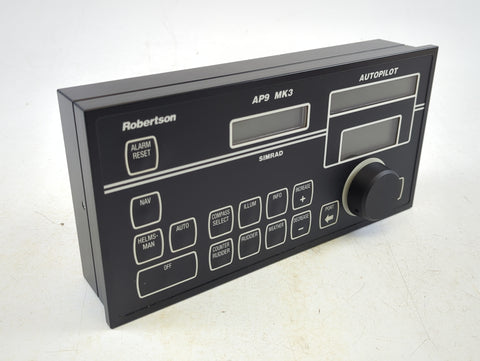

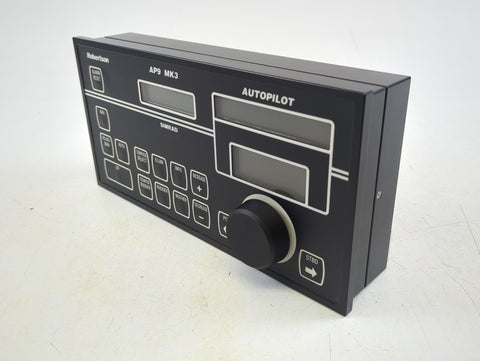

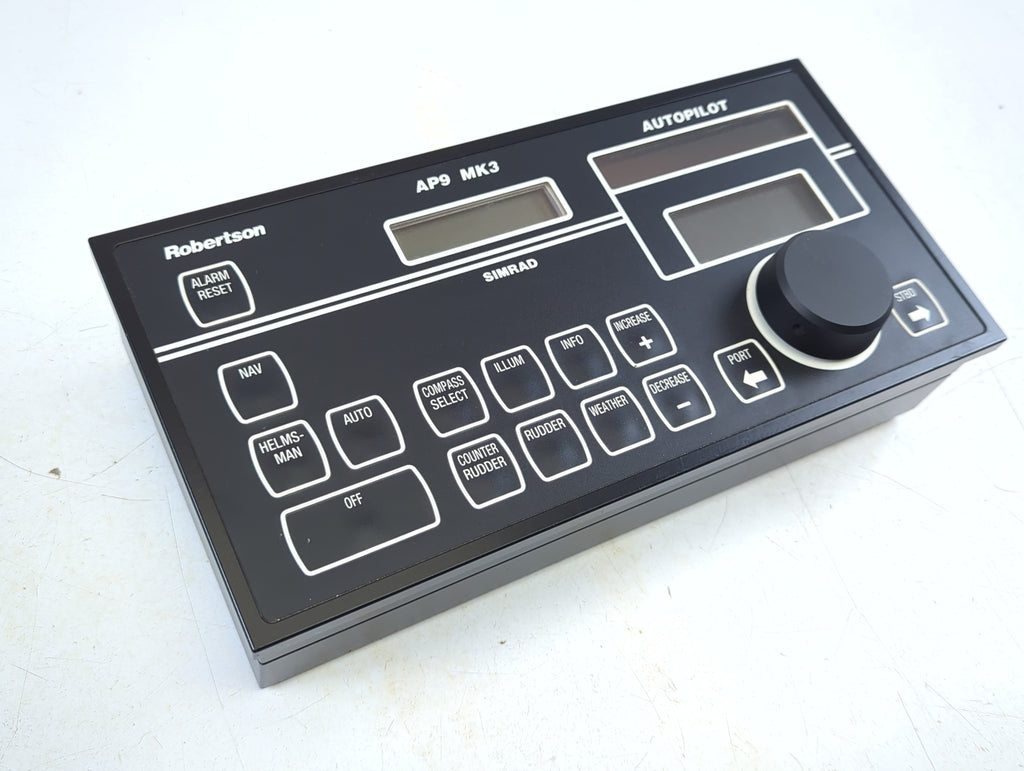

  • The Simrad Robertson AP9-MK3 Control Unit is the primary interface for the renowned and robust AP9-MK3 Autopilot system. This unit provides the operator with dedicated push-buttons for mode selection, course adjustments, and monitoring, ensuring reliable, hands-on control over the vessel's navigation.
  • Specifications:
    • Dimensions: 11.34” X 5.67” X 2.87” (288 X 144 X 73 mm)
    • Weight: 3kg (6.61lb)
    • Protection: IP43
    • Storage Temperature Range: –25 to +70 °C (-13 to 158 °F)
    • Operating Temperature Range: 0 to +55 °C (32 to 131 °F)
    • Safe Distance to Compass: 0.3m
    • Max. Current Consumption: 0.6A
    • Input Signals:
      • Magnetic Compass: sin/cos 2V, 2.5V ref.
      • Fluxgate Compass: sin/cos 2V, 2.5V ref.
      • Gyro Compass Serial Signal: RGC11 and RGC12 proprietary sentences,NMEA, UART  (SKR80/82)
      • Nav. Signal:
        • Format: NMEA 0183
        • XTE: APA, APB, XTE
        • CTS:APA, APB, BOD, BWC, BWR, BWW, HSC
        • Baudrate: 4800
      • Speed Signal: VTG
    • Output Signals:
      • "ON/OFF" steering signals (12V)
      • ±10V analogue signalNMEA, HDM/HDT with 0.1 degree resolution
      • Repetition rate: Selectable between 5/sec. and 1/sec.
  • Manufacturer: Simrad, Robertson
  • Model Number: AP9-MK3
  • Part Number: 20169199

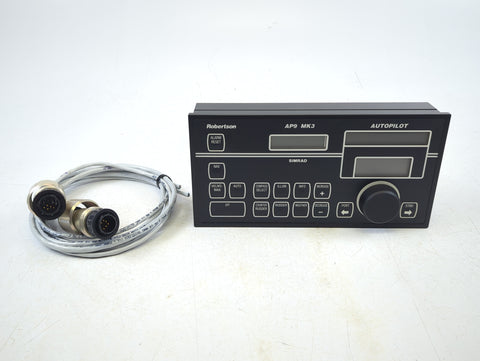

  • Condition: New! In Stock, Ready to Ship! NOS New Old Stock. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
