Simrad SonarHub 000-11142-001 Navico Lowrance Marine HDS Gen2 Sonar Networking Module
Simrad SonarHub 000-11142-001 Navico Lowrance Marine HDS Gen2 Sonar Networking Module
Simrad SonarHub 000-11142-001 Navico Lowrance Marine HDS Gen2 Sonar Networking Module
Simrad SonarHub 000-11142-001 Navico Lowrance Marine HDS Gen2 Sonar Networking Module
Simrad SonarHub 000-11142-001 Navico Lowrance Marine HDS Gen2 Sonar Networking Module

Simrad SonarHub 000-11142-001 Navico Lowrance Marine HDS Gen2 Sonar Networking Module

  • Sale
  • $299.95
  • 1 available
  • Simrad SonarHub Marine Sonar Networking Module for HDS Gen2
  • Transmit Power: Max 500W RMS (StructureScan® HD), 250W RMS (CHIRP)
  • Transducer Frequencies: 455/800 kHz (StructureScan® HD), 40-60kHz, 85-145kHz, 130-210kHz (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band)
  • Compact all-in-one sonar module delivers StructureScan HD and CHIRP sonar technologies.
  • Compatible with ALL-NEW SpotlightScan forward- and surround-scanning sonar transducers.
  • Optional transducers include AIRMAR TM150M, single-channel CHIRP transducer and existing StructureScan HD transducers.
  • Plug-and-play compatibility with Lowrance HDS Gen1 (not including SpotlightScan and CHIRP sonar), HDS Gen2 and Gen2 Touch fishfinder/chartplotter models.
  • StructureScan HD offers best-in-class, side-scanning range and resolution, plus DownScan Imaging to provide crystal-clear, picture-like views of what’s beneath a boat.
  • Three built-in Ethernet ports allow for quick and convenient networking without the need for an extra Ethernet networking module.
  • CHIRP sonar with AIRMAR TM150M transducer delivers extremely efficient pulse generation that provides improved target resolution and noise rejection, as well as wide coverage for perfect arches that clearly identify fish targets.
  • Supported by Lowrance Advantage Service program.
  • For use with:
    • Lowrance HDS Gen2
    • Lowrance HDS Gen2 Touch
    • Simrad NS Series (NSS, NSE, NSO)
  • Manufacturer: Navico Simrad Lowrance
  • Model Number: SonarHub
  • Part Number: 000-11142-001
  • Also Known As: 00011142001

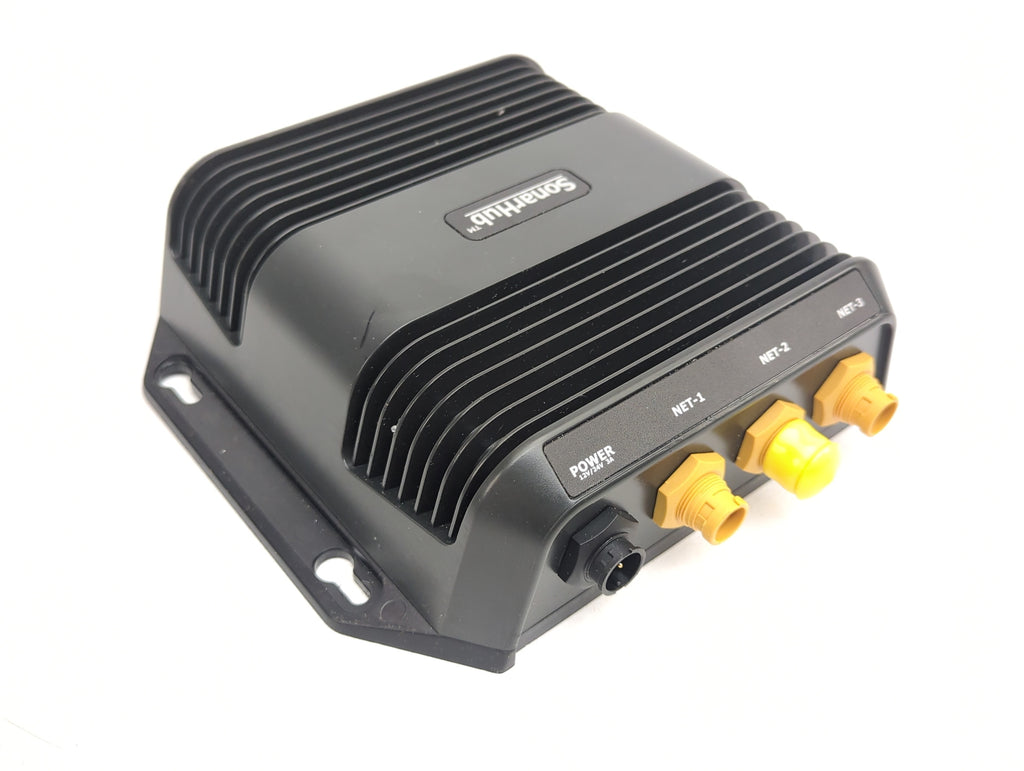

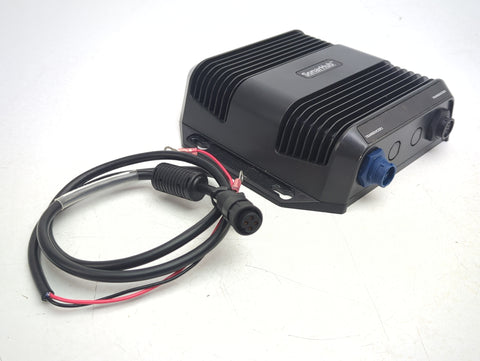

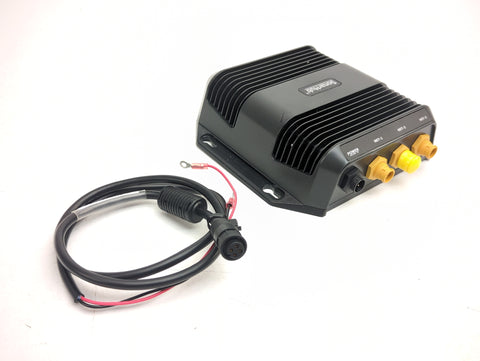

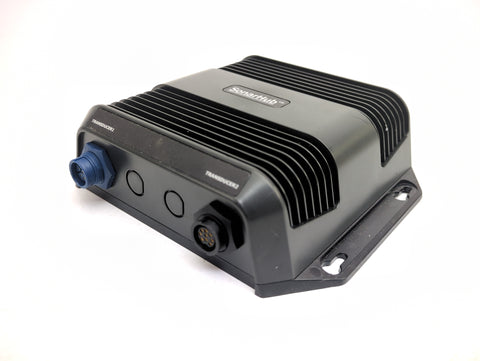

  • Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
