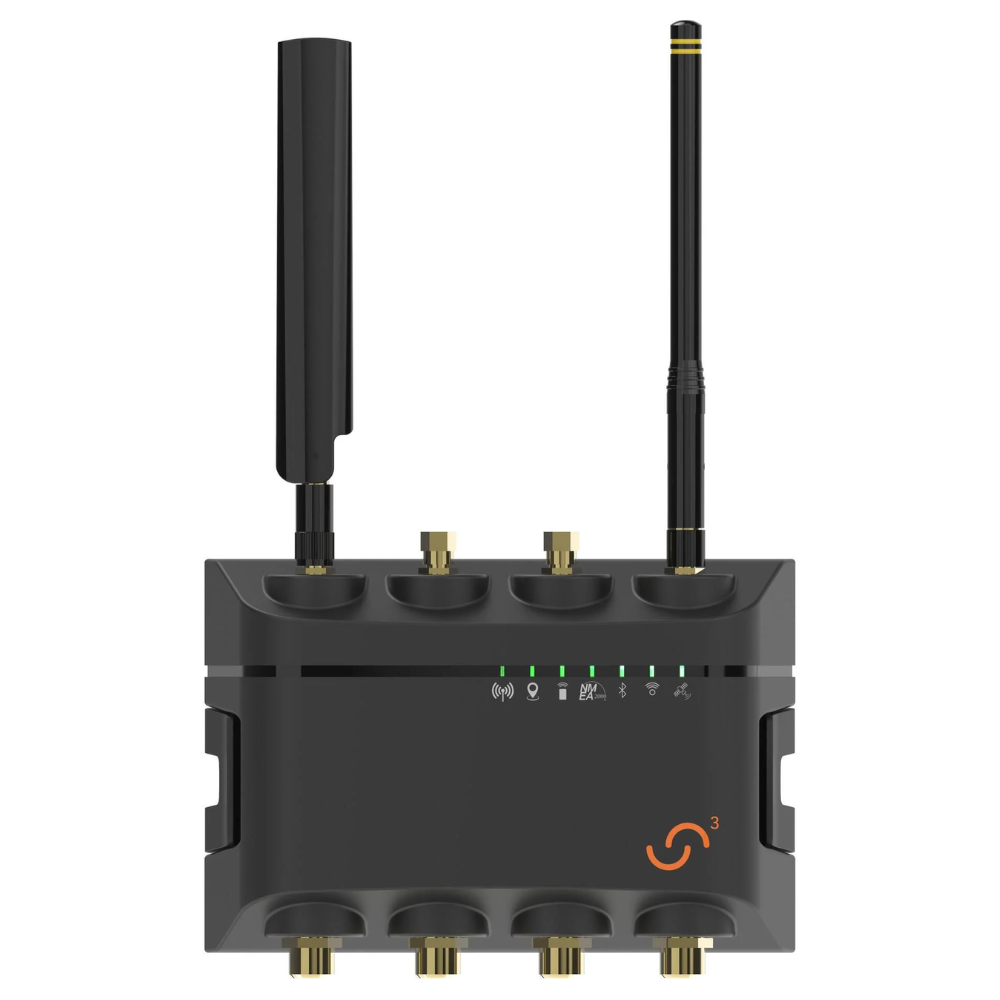

Siren Marine SM-S3P-917 Siren 3 Pro Vessel Management Main Device
Siren Marine SM-S3P-917 Siren 3 Pro Vessel Management Main Device
Siren Marine SM-S3P-917 Siren 3 Pro Vessel Management Main Device
Siren Marine SM-S3P-917 Siren 3 Pro Vessel Management Main Device

Siren Marine SM-S3P-917 Siren 3 Pro Vessel Management Main Device

  • Sale
  • $599.95
  • 1 available
  • Siren Marine SM-S3P-917 Siren 3 Pro Vessel Management Main Device

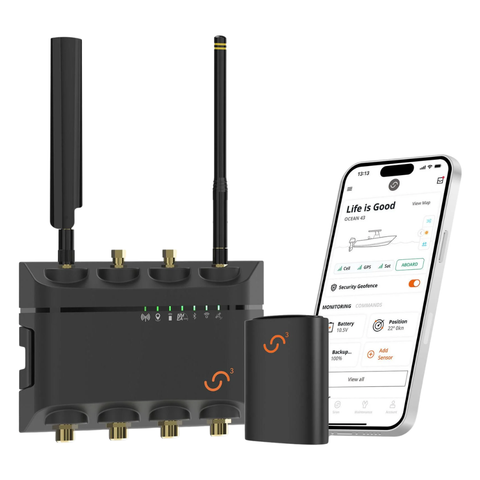

  • The Siren 3 Pro is the most advanced Main Device we offer. Together with the Siren Connected Boat App, our Smart Boat Monitoring System puts your boat in the palm of your hand 24/7.
  • Features:
    • Battery Monitoring: Monitor your boat’s battery & receive alerts if voltage is low.
    • GPS Position/Geofence: Track boat’s location & receive alerts on boat movement.
    • NMEA 2000: Best-in-class NMEA 2000 marine electronics backbone connectivity.
    • Digital Switching: Remotely control lights, refrigerator and more.
    • LTE-M (4G/5G): The latest cellular technology connects you to your boat.
    • Engine Metrics: Monitor performance & support metrics for any NMEA propulsion system.
    • Connected Fluid Tanks: Monitor tank levels (i.e. fuel, water, etc.) and check level history.
    • Security/Entry: Add snap, motion & entry sensors for the ultimate boat security system.
    • Bilge: Monitor bilge activity, including bilge run time & daily bilge cycles.
    • High Water: Detect water and monitor water level in bilge.
    • Shore Power: Monitor shore power connection & receive power outage alerts.
    • Temperature: Monitor temperature of cabin, engine room, fridge and/or bait locker.
    • Satellite Compatible: SirenSat provides smart boat location & tracking when outside of cell range.
    • Wireless Sensors 3.0: Siren 3 Pro delivers improved wireless connectivity.
  • Specifications:
    • Physical Dimensions: 6” X 4-1/2" X 2” (152 X 113 X 50 mm)
    • Weight: 1 lb (0.5 kg)
    • Operating Voltage: 9-30 VDC
    • Internal Battery Type: 3000mAh Lithium Polymer Battery
    • Internal Battery Backup Power: Up to 48 Hours Backup Power
    • Firmware Upgradeability: Over the Air (OTA) for both Siren 3 Pro and wireless sensors
    • Cellular: External Antenna, 4G/5G CAT-M1, with fall back to NB-IoT and EGPRS
    • Wireless: External Antenna, Sub-GHz
    • NMEA 2000: CAN Bus 1, M12 (5 Pin)
    • Application-Dependent Protocol (ex. J1939): CAN Bus 2, M12 (5 Pin)
    • Satellite Modem: RS-232, M12 (12 Pin) Wiring Cable #2
    • Expansion Bus: RS-422. M12 (12 Pin) Wiring Cable #2
    • Mounting: Snap-in bracket with (4) screws provided for mounting
    • Positioning: Internal Antenna, GNSS, GPS/GLONASS with SBAS, (External antenna option available)

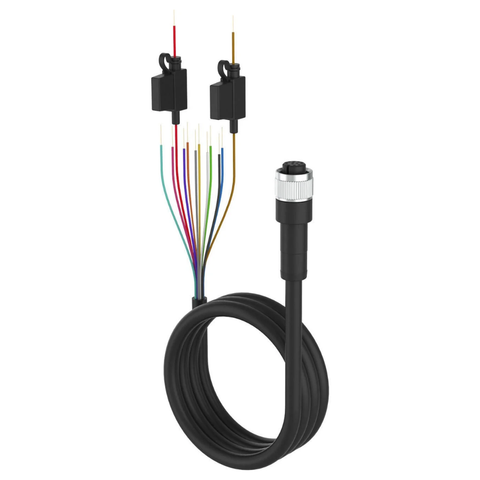

    • Connectivity: Interface cable with mating connector of 1m length provided for wired inputs and outputs with 24 AWG conductors.
    • Environmental/Temperature (Operating): 32°F to 113°F (0°C to 45°C)
    • Environmental/Temperature (Storage): -4°F to 140°F (-20°C to 60°C)
    • Humidity: 0 to 90% RH
    • Water & Dust Tolerance: IP67
    • Certifications: FCC Part 15, Subpart B, Class B, EN60945, CE, PTCRB, NMEA 2000
    • Wired Sensor Inputs: Battery 1, Battery 2, Battery Switch, High Water 1, High Water 2, Ignition, Remote Arm/Disarm, Security 1, Security 2, Security 3, Shore Power
    • Wired Sensor Outputs: Relay Output 1, Relay Output 2, Relay Output 3, Relay Output 4, Remote Battery Switch (#7713)
    • Wireless Sensors: Battery Voltage, Bilge Pump Activity, High Water, Magnetic Reed Switch (Intrusion), Temperature
  • Manufacturer: Siren Marine
  • Model Number: Siren 3 Pro
  • Part Number: SM-S3P-917
