Standard Horizon CSA280 120VAC Desktop Rapid Charger for CNB350/CNB350AS CNB250A

Sale
Regular price $49.95
1 available

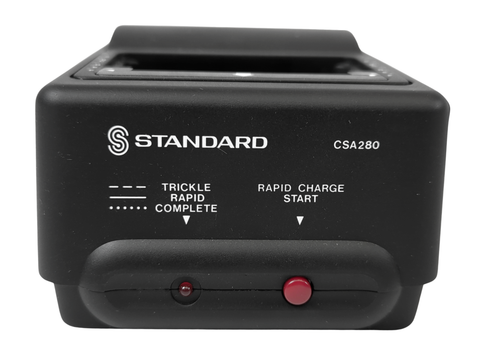

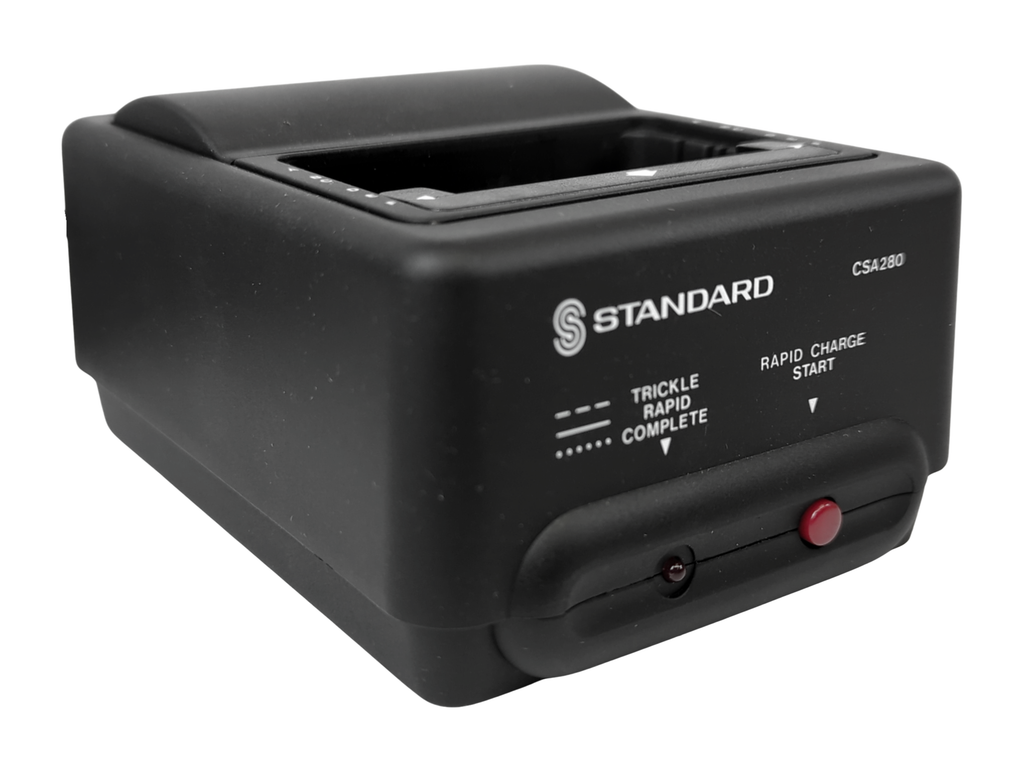

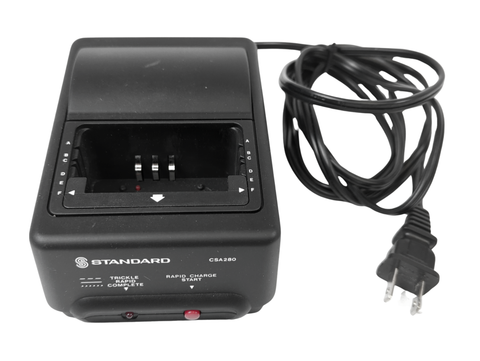

Standard Horizon CSA280 120VAC Desktop Rapid Charger for CNB350/CNB350AS CNB250A
The Standard Horizon CSA280 Desktop Rapid Charger is used as a single-battery for many models. The CSA280 uses microprocessor-controlled circuitry to rapidly charge the battery at an optimum rate. The micro processor senses the fully-charged state, and then switches to a trickle charge mode to maintain the full charge indefinitely.
The rapid charge mode completes a high current charging cycle. This mode takes approximately 1-2 hours if the battery has been fully discharged.
Specifications:
- Input Voltage: 120 VAC ± 10%, 60 Hz
- Rapid Charge Current:
  - CNB240: 400 ± 40 mA
  - CNB230/CNB231/CNB241/CNB242/CNB243/CNB244/CNB245/CNB250/CNB280/CNB281: 900 ± 40 mA
- Trickle Charge Current: 25 ± 15 mA
- Charging Time (approximate):
  - CNB230/CNB231/CNB240/CNB241/CNB242/CNB245/CNB250: 1 hour
  - CNB243/CNB244/CNB280: 1.5 hours
  - CNB281: 2 hours
- Temperature Range: +10° to +40° C (+50° to +104° F)
- Size (HxWxD): 2.4” X 3.9” 5.3” (61 X 98 X 134 mm)
- Weight: 0.45 kg (0.99 lb)
For use with:
- Land Mobile:
  - CNB240 - 7.2V, 400 mA hour
  - CNB241 - 7.2V, 700 mA hour
  - CNB242 - 12V, 600 mA hour
  - CNB243 - 7.2V, 1000 mA hour
  - CNB244 - 12V, 1000 mA hour
  - CNB245 - 12V, 600 mA hour
  - CNB280 - 7.2V, 950 mA hour
  - CNB281 - 7.2V, 1400 mA hour
- Marine:
  - CNB230 - 10.8V, 600 mA hour
  - CNB231 - 7.2V, 700 mA hour
  - CNB250 - 7.2V, 800 mA hour
Manufacturer: Standard Horizon
Model Number: Desktop Rapid Charger
Part Number: CSA280
