  • Sale
  • $119.95
  • 1 available
  • Intrepid Waterproof Marine DSC VHF Radio Transceiver with Microphone
  • The Standard Communications Corp. (SCC) GX1260S is a VHF/FM transceiver designed for use in the frequency range of 156.025 to 163.275 MHz. It requires 13.8V for operation and has a switchable RF output power of 1 watt or 25 watts.
  • The transceiver is capable of RTCMSC101 DSC (Digital Selective Calling) operation and intercom operation with the use of an optional CMP23 (remote-control speaker/microphone with display).
  • Specifications:
    • General:
      • Channels: All USA, International and Canadian
      • Input Voltage: 13.8 VDC +/-20%
      • Current Drain:
      • Standby: 0.5A
      • Receive: 1.5A
      • Transmit: 6A (Hi); 1.7A (Lo)
      • Dimensions (HxWxD): 2.76” X 6.46” X 7.13” (70 X 164 X 181 mm)
      • Weight: 2.13 lb (0.97 kg)
    • Transmitter:
      • Frequency Range: 156.025 to 157.425 MHz
      • RF Output: 25W (Hi); 1W (Lo)
      • Conducted Spurious Emissions: 80 dB (Hi); 60 dB (Lo)
      • Audio Response: within +1/-3 of 6 dB/octave pre-emphasis characteristic at 300 to 3000 Hz
      • Audio Distortion: 5%
      • Modulation: 16K0G3E, for DSC 16K0G2B
      • Frequency Stability (-20 to +50 °C): +/- 0.0005%
      • FM Hum and Noise: 50 dB
    • Receiver:
      • Frequency Range: 156.050 to 163.275 MHz
      • Sensitivity:
      • 20 dB Quieting: 0.40 µV
      • 12 dB SINAD: 0.30 µV
      • Squelch Sensitivity (Threshold): 0.13 µV
      • Modulation Acceptance Bandwidth: ± 7.5 kHz
    • Selectivity:
      • Spurious and Image Rejection: -70 dB
      • Intermodulation and Rejection at 12 dB SINAD: -70 dB
      • Audio Output: 4W
      • Audio Response: within + 2/–8 of a 6 dB/octave de-emphasis characteristic at 300 to 3000 Hz
      • Frequency Stability (-20 to +50 °C): +/- 0.0005%
      • Channel Spacing: 25 kHz
      • DSC Format: RTCMSC101
  • Manufacturer: Standard Horizon
  • Model Number: Intrepid
  • Part Number: GX1260S

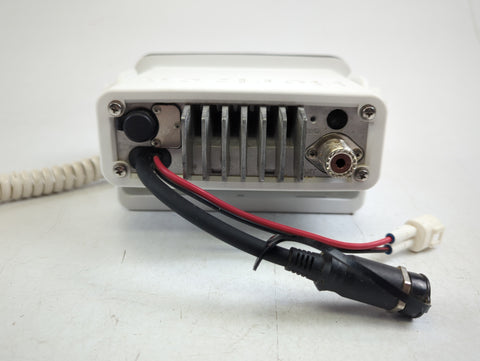

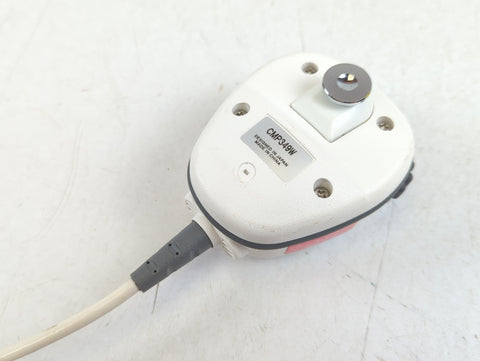

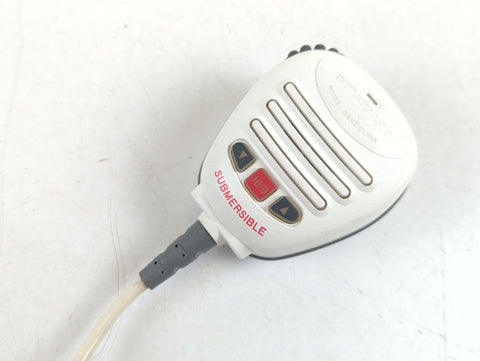

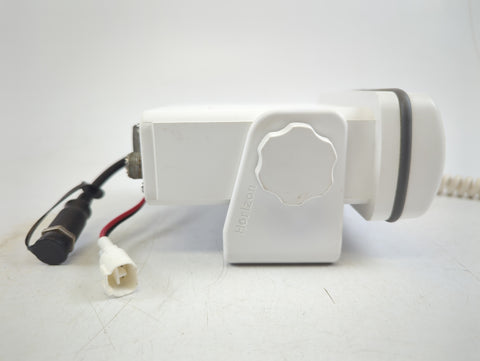

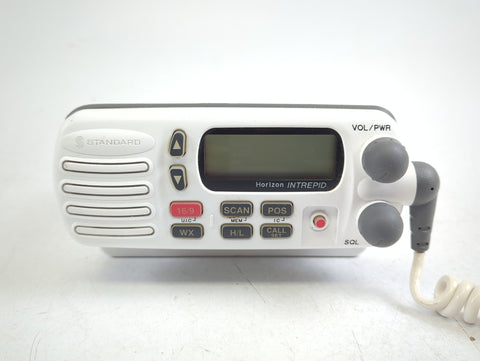

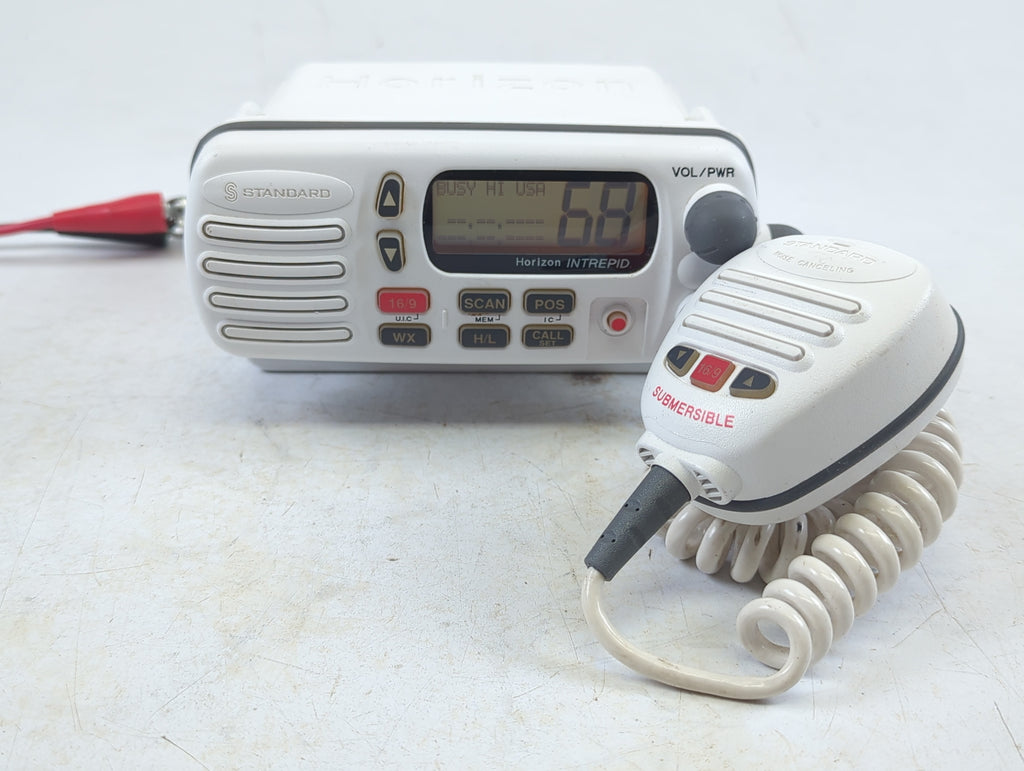

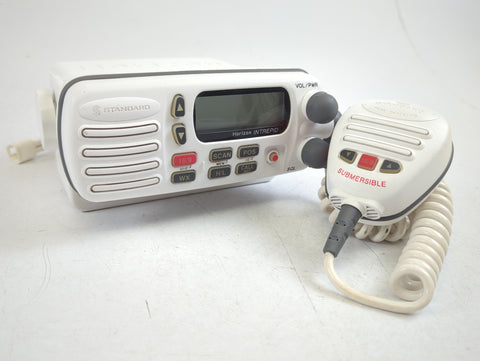

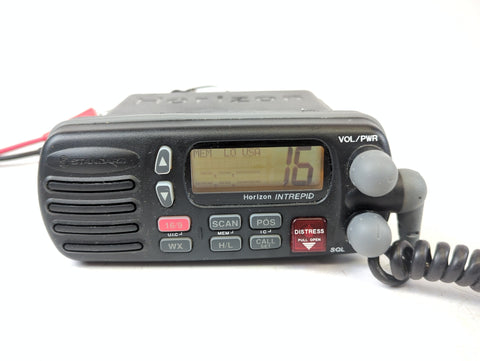

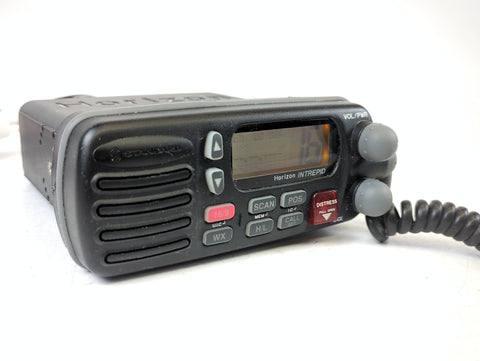

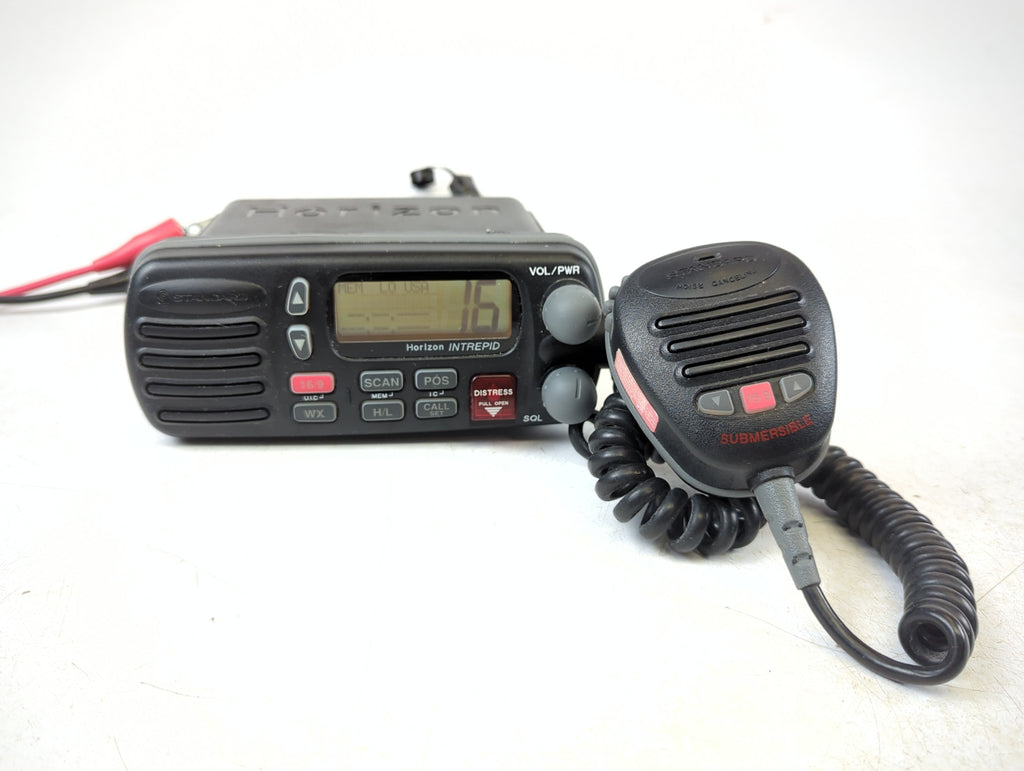

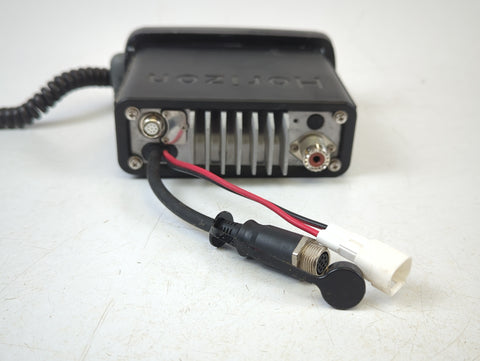

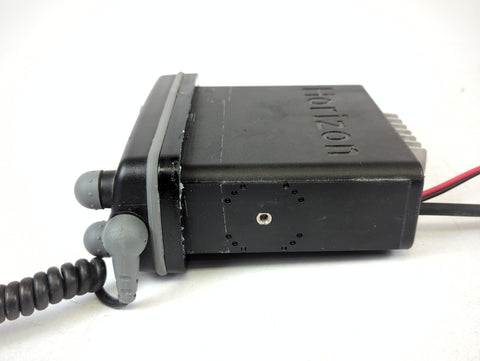

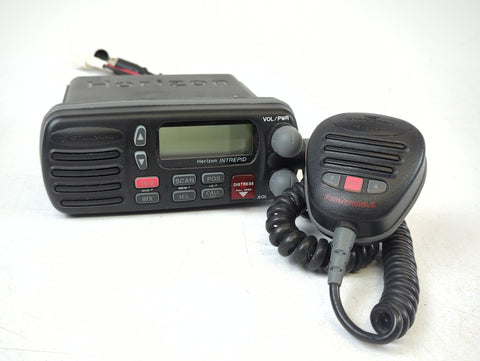

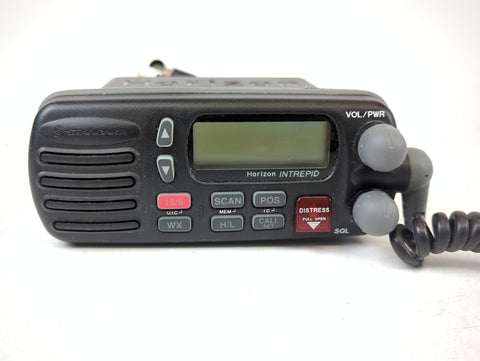

  • Condition: In Stock and Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
