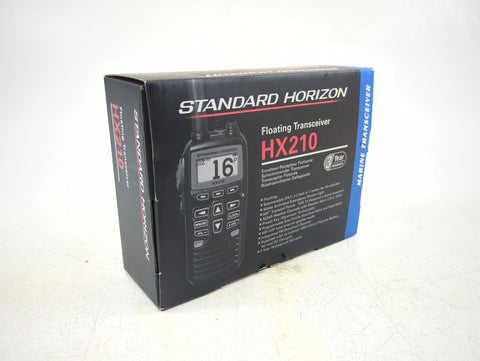

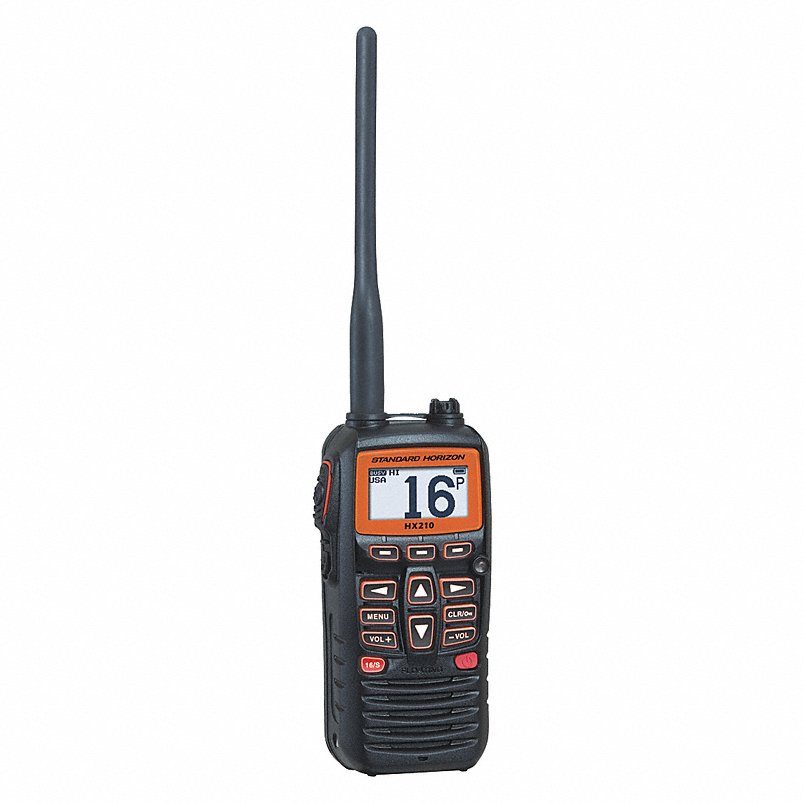

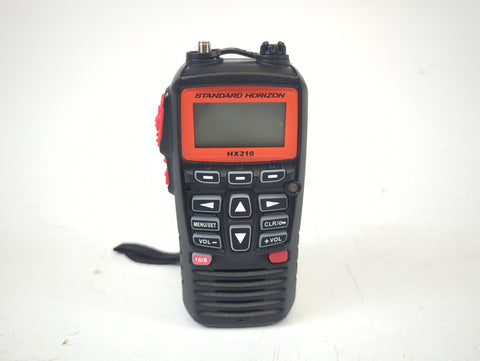

Standard Horizon HX210 Boat Marine Waterproof Floating Handheld VHF Radio

  • Sale
  • Regular price $99.95
  • 1 available


  • Standard Horizon HX210 Boat Marine Waterproof Floating Handheld VHF Radio
  • The Standard Horizon Compact Floating Marine Handheld VHF Transceiver has a compact, ergonomic case design that is a result of the new internal, large capacity 1850 mAh Lithium Ion battery technology. This gives the radio a much smaller case design yet it's light enough to float face up if dropped in the water.
  • Features:
    • Compact Case Design: Compact, ergonomic case design is a result of the new internal, large capacity 1850 mAh Lithium Ion battery technology. This gives the radio a much smaller case design yet light enough to float face up if dropped in the water
    • Water Activated Emergency Strobe Light: If the radio falls in the water an emergency strobe light is automatically activated, even when the unit is turned off. The strobe can be reconfigured to flash on and off, flash SOS, or set to stay on continuously.
    • Oversized Full Dot Matrix Display: The HX210 boasts one of the largest displays in a compact and affordable handheld VHF. With a larger display, greater (dot matrix) resolution, and a super bright backlight there will be no mistaking the information displayed on the face of the radio day or night.
    • E20 Easy to Operate Menu System: Keeping the everyday Boater in mind, the intuitive menu system allows easy access of all of the setup functions of the radio, making it easy to customize settings based on the preferences of the individual.
    • Built in FM Broadcast Band Receive: The HX210 has an expanded receiver allowing the user to tune in to their favorite FM radio station. The radio will receive FM broadcast bands between 76 MHz to 108 MHz.
  • Specifications:
    • General:
      • Frequency Ranges: TX: 156.025 MHz - 161.600 MHz, RX: 156.050 MHz - 163.276 MHz
      • Channel Spacing: 25 kHz
      • Frequency Stability: ±3 ppm (-20°C to +60°C)
      • Emission Type: 16K0G3E
      • Antenna Impedance: 50Ω
      • Operating Voltage: 7.4 VDC, Negative Ground
      • Current Consumption: 330 mA (Receive, Typical at AF Max.), 100 mA (Standby)
      • Operating Temperature: -20°C to +60°C
      • Case Size: 2.36” X 5.20” X 1.57” (60 X 132 X 40 mm)
      • Weight: 9.88 oz (280 g)
    • Transmitter:
      • RF Power Output: 6W (5W) *2 / 2.5W / 1W (@ 7.4V)
      • Maximum Deviation: ±5 kHz
      • Spurious Emission: Less than 0.25 μW
      • Microphone Impedance: 2 kΩ
    • Receiver:
      • Circuit Type: Double Conversion Superheterodyne
      • Intermediate Frequencies: 1st: 38.85 Mhz, 2nd: 450 kHz
      • Adjacent Channel Selectivity: 70 dB typical (USA), 68 dB typical (EXP)
      • Hum & Noise Ratio: 40 dB typical
      • Sensitivity: 0.25 μV for 12 dB SINAD (USA), -5 dBμ for 20 dB SINAD (EXP)
      • Selectivity: 12 kHz / 25 kHz (-6 dB / -60 dB)
      • AF Output: 600W @ 16Ω for 10% THD (@ 7.4V)
    • FM Broadcast Receiver:
      • Frequency Range: 65 MHz - 108 MHz
      • Frequency Step: 100 kHz
      • Sensitivity: 1.0 μV for 12 dB SINAD
  • Manufacturer: Standard Horizon
  • Model Number: VHF Radio
  • Part Number: HX210

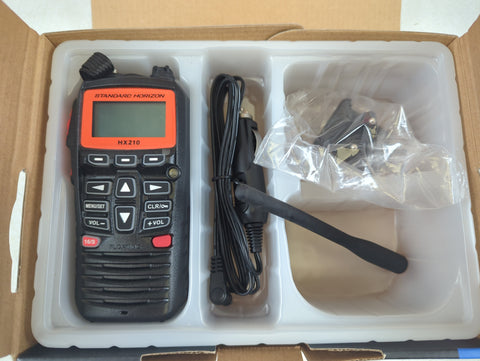

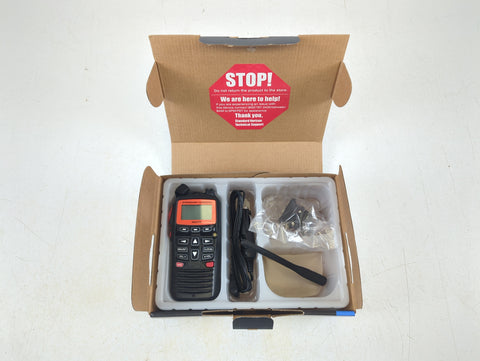

  • Condition: New! In Stock, Ready to Ship! CHARGER NOT INCLUDED. See Photos.
