Standard Horizon HX230S Boat Marine Water-Resistant Handheld VHF Radio Transceiver
Sale
Regular price
$69.95
1 available
Standard Horizon HX230S Boat Marine Water-Resistant Handheld VHF Radio Transceiver
The HX230S is a water-resistant marine handheld two-way VHF radio. It exceeds Mil Spec 810D for rain drip and salt fog, and operates on all currently allocated marine channels, switchable for use with either USA, International, or Canadian regulations.
Specifications:
General:
Frequency Range: 156.025 to 163.275 MHz
Channels: All currently allocated USA, Canada, and International channels, plus 10 weather channels
RF Power Output:
With CNB230 Battery: 5.0 W (high), 1.0 W (low)
With CNB231 Battery: 2.2 W (high), 1.0 W (low)
Operating Voltage: 6.1 to 12.4 V
Current Drain:
Standby: 40 mA
Receive: 250 mA
Transmit:
With CNB230 Battery: .2 A (high power), 0.6 A (low power)
With CNB231 Battery: 0.8 A (high power), 0.6 A (low power)
Dimensions: 6.44” H X 2.17” W X 1.33” D (163.5 mm-H x 55 mm-W x 34 mm-D)
Weight: 1 lb (0.46 kg)
Battery Life:
CNB2300 (5% TX. TX, 5% RX, 90% Standby): 9 hrs. 10 min. Low, 6 hrs. 30 min. High
CNB231 (5% TX, 5% RX, 90% Standby): 10 hrs. 50 min. Low, 9 hrs. 40 min. High
Battery Charge Time (with supplied CWC230 Charger): 15 Hrs. (approx)
With optional CWC231 or CMC240 Charger: 14 Hrs. (approx)
With optional CSA240 Charger: 1 Hr. (approx)
Transmitter:
Conducted Spurious Emissions: 60 dB (high), 55 dB (low)
Audio Frequency Response: within + 2/-8 dB of a 6 dB/octave pre-emphasis characteristic from 300 Hz to 3000 Hz
AF Harmonic Distortion: 3%
Hum and Noise Level: 37 dB
Frequency Stability (-20° to +50° C): ±0.0007%
Receiver:
Sensitivity:
20 dB Quieting: 0.35 µV
12 dB SINAD: 0..3 µV
Threshold Squelch Sensitivity: 0.15 V
Modulation Acceptance Bandwidth: ± 4.5 kHz
Spurious Image Rejection: 60 dB
Intermodulation Rejection: 60 dB
Channel Spacing: 25 kHz
Manufacturer: Standard Horizon
Model Number: VHF Radio Transceiver
Part Number: HX230S

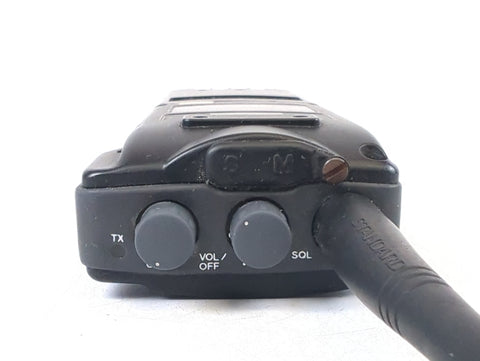

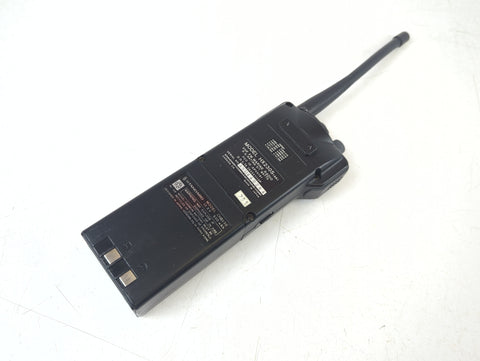

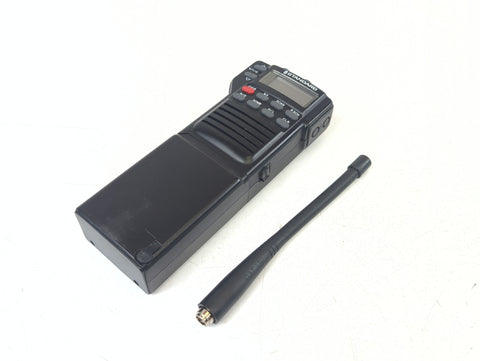

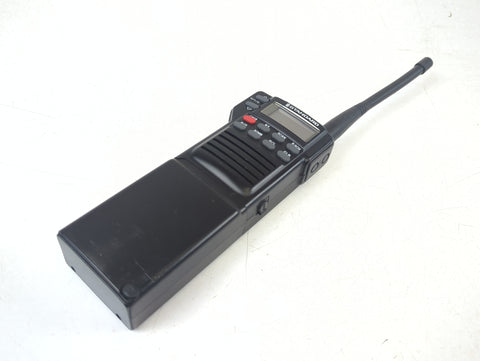

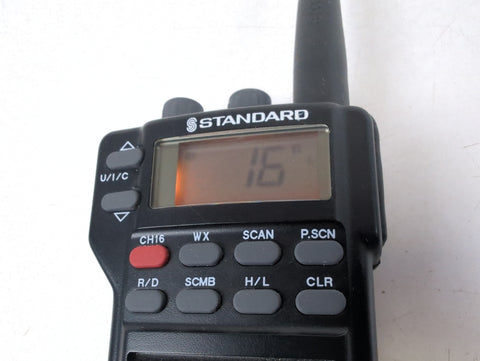

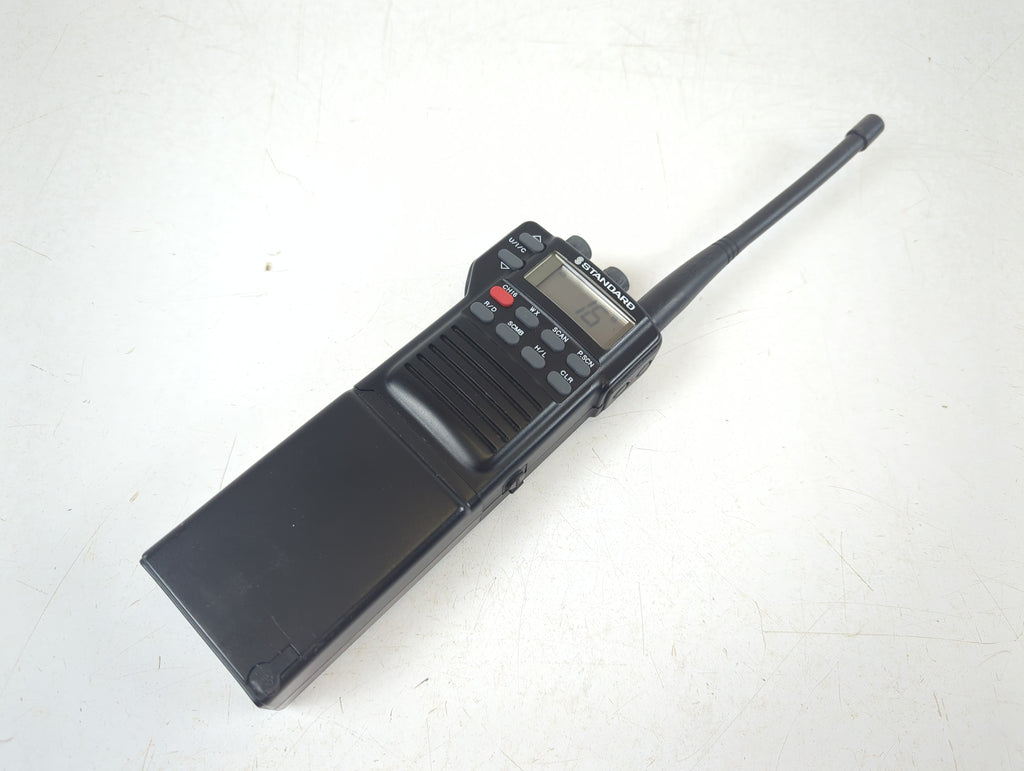

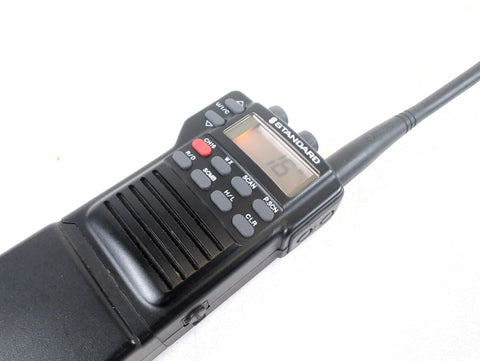

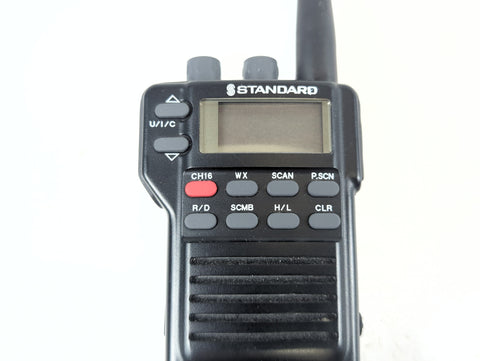

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. MAY NEED NEW BATTERY. See Photos. This unit is being SOLD AS-IS. This listing is only for what is shown in the photos. No other parts or pieces are included.
