Standard Horizon HX870 Marine Floating Handheld GPS DSC VHF Radio with SBH-12 Charging Cradle

Standard Horizon HX870 Marine Floating Handheld GPS DSC VHF Radio with SBH-12 Charging Cradle

Sale
Regular price $169.95
1 available

Standard Horizon HX870 Marine Floating Handheld GPS DSC VHF Radio with SBH-12 Charging Cradle
Features:
- Meets ITU-R M493-13 Class D DSC (Digital Selective Calling)
- Separate Receiver for CH70 (Receiving DSC Calls)
- Integrated 66 Channel WAAS GPS receiver
- Oversized full dot matrix display (1.7” (W) x 1.7” (H) or 2.3” diagonal)
- Easy to Operate Icon/Menu System
- Navigate to a DSC Distress Call with Compass Page
- GM (Group Monitor) using DSC Group Position Call
- DSC Test Call and Auto DSC Channel Change Selection
- Automatically poll the GPS position of a ship using DSC
- Enter, Save, and Navigate to a waypoint with Compass Page
- MOB (Man Over Board) Function
- Water Activated Emergency Strobe Light
- 1W, 2W or 6W Transmit Power options
- Navigation (LAT/LON, SOG, and COG) information shown on display
- Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
- Noise-canceling Function for both transmit and receive audio
- All USA/International and Canadian Marine Channels
- USB Data Port – NMEA Output DSC, DSE, GLL, RMC, GSA, GSV and GGA (9600 baud)
- NOAA Weather Channel with Weather Alert
- Programmable Scan, Priority Scan, and Dual and Tri Watch
- Preset key used to recall up to 10 favorite channels
- Supplied with a 1800 mAh Li-Ion Battery, 110VAC and 12VDC 3-hour quick chargersAlkaline Battery Tray
Specifications:
- General:
  - Frequency Range:
    - TX: 156.025 MHz - 157.425 MHz
    - RX: 156.050 MHz - 163.275 MHz
  - Channel Spacing: 25 kHz
  - Frequency Stability: ±3 ppm (-40 to 140 °F [-20 to +60 °C])
  - Emission Type: 16K0G3E for Voice, 16K0G2B for DSC
  - Antenna Impedance: 50 Ω
  - Supply Voltage: 7.4V DC, Negative Ground (Battery Terminal)
  - Current Consumption:
    - 330 mA (Receive)
    - 100 mA (Standby, GPS On)
    - 60 mA (Standby, GPS Off)
    - 1.6A /1.0A / 0.7A (TX: 6W / 2W / 1W)
  - Operating Temperature: -40 to 140 °F (-20 to +60 °C)
  - DSC Individual Directory: Store up to 100
  - DSC Group Directory: Store up to 20
  - DSC Format: ITU-R M.493-13
  - NMEA Output: DSC, DSE, GLL, GGA, GSA, GSV, and RMC
  - Case Size (WxHxD): 2.44” X 5.43” X 1.69” (62 X 138 X 43 mm) (without knob & antenna)
  - Weight: 11.36 oz (322 g)
- Transmitter:
  - RF Power Output: 6W (Hi) / 2W (Medium) / 1W (Low) (@7.4 V)
  - Modulation Type: Variable Reactance
  - Maximum Deviation: ±5 kHz
  - Spurious Emission: -75 dBc typical
  - Microphone Impedance: 2 kΩ
  - Circuit Type: Double-Conversion Superheterodyne
  - Intermediate Frequencies:
    - For Voice: (1st) 38.85 MHz, (2nd) 450 kHz
    - For DSC: (1st) 30.4 MHz, (2nd) 450 kHz
  - Sensitivity:
    - For Voice: 0.25 μV for 12 dB SINAD
    - For DSC: 0.5 μV for 12 dB SINAD
  - Adjacent Channel Selectivity: 70 dB typical
  - Intermodulation: 70 dB typical
  - Hum & Noise Radio: 40 dB
  - Selectivity: 12 kHz / 25 kHz (-6 dB / -60 dB)
  - AF Output (Internal SP): 700 mW @ 16 Ω for 10% THD (@ 7.4V)
- GPS:
  - Receiver Channels: 66 Channels
  - Sensitivity: Less than -147 dBm
  - Time to First Fix: 1 min typical (@ Cold Start), 5 sec typical (@ Hot Start)
  - Geodetic Datum: WGS84
- NMEA Output:
  - NMEA 0183 Output Sentence (9600 baud): DSC, DSE, GGA, GLL, RMC, GSA & GSV

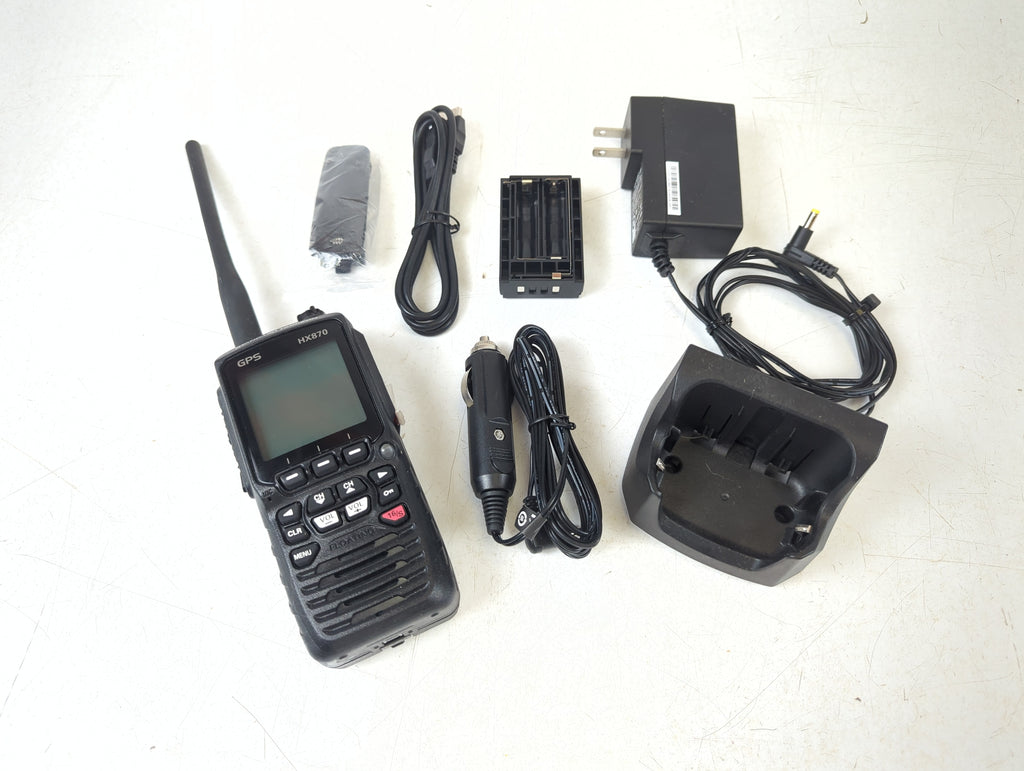

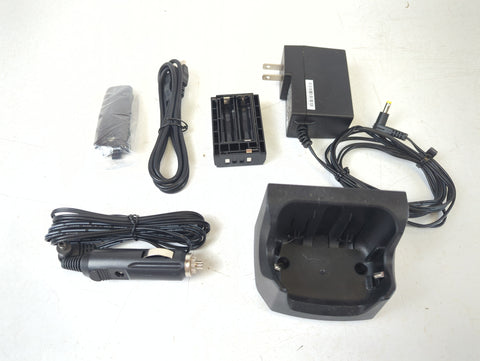

Includes:
- HX870 VHF Radio
- SBH-12 Charging Cradle
Manufacturer: Standard Horizon
Model Number: VHF Radio
Part Number: HX870

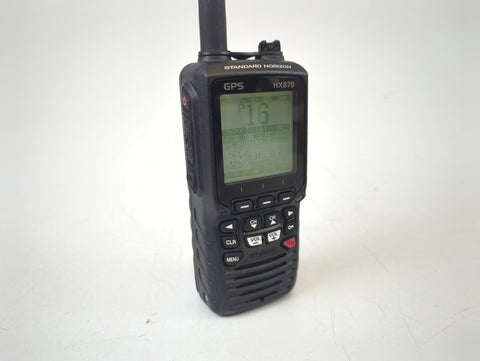

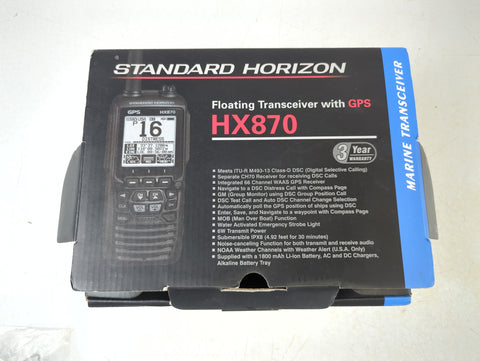

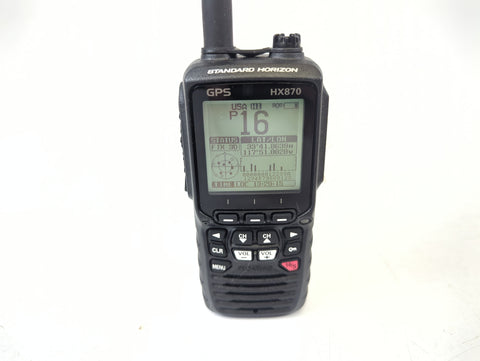

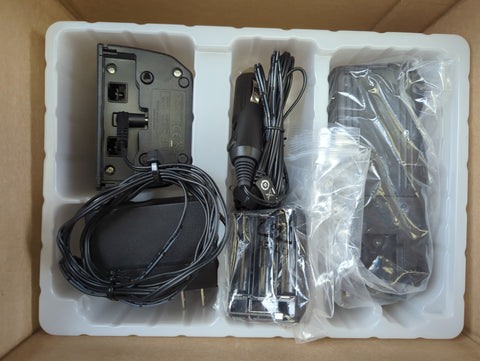

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
