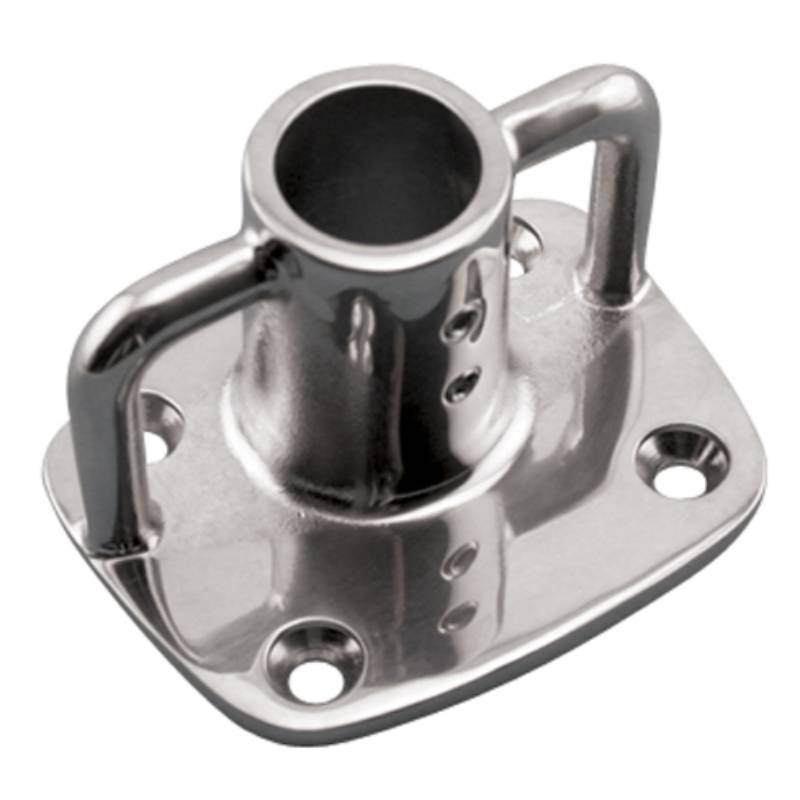

Suncor S3610-0000 Boat Marine 316 Stainless Steel 1" Stanchion Base

Suncor S3610-0000 Boat Marine 316 Stainless Steel 1" Stanchion Base
The heavy duty Stanchion Base features an angled base of 3 degrees to allow for sloping decks. This base is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for sailboat and powerboat railings.
Features:
- Fits 1" OD stanchion
- Heavy duty stainless steel stanchion base canted inboard 3° to match deck camber
- Precision cast in one piece with no welds
- Ideal for sailboat and powerboat railings
Specifications:
- Dimensions:
  - A: 1” (25.4mm)
  - B: 2.25” (57.15mm)
  - C: 1.87” (47.50mm)
  - D: 2.34” (59.44mm)
  - E. 0.25” (6.35mm)
  - X: 2.75” (69.85mm)
  - Y: 3.57” (90.68mm)
  - Z: 2.21” (56.13mm)
- Fastener: 1/4" Screws
- Material: 316 Stainless Steel
- Finish: Polished
Manufacturer: Suncor
Model Number: Stanchion Base
Part Number: S3610-0000
