Vanner VLT24-1000 High Frequency 24V 1000 Watt True Sine Wave AC Power Inverter
Sale
Regular price
$799.95
2 available
Vanner VLT24-1000 High Frequency 24V 1000 Watt True Sine Wave AC Power Inverter
Specifications:
Continuous Output: 1000W
Surge (3S): 16A
Input Voltage: 24V
Output Voltage: 120V +/- 3%
Output Frequency: 60Hz +/-.05%
Peak Current: 25A
Efficiency FL: 87%
No Load Current: < 1.0W In Power Saving Mode
Output Waveform: Pure Sine Wave < 3% THD
O/P Regulation: 120V RMS -10% / +4%
Low Battery Voltage: 20V
High Battery Voltage: 32V
Standby Recovery: 5 Seconds
Operating Temperature: 32 to 122 °F (0 to 50 °C)
Storage Temperature: -22 to 158 °F (-30 to 70 °C)
Dimensions: 4.13”H X 10.83”W X 15.35”D (104.90 X 275.08 X 389.89 mm)
Weight: 6.85 kg (15.1 lbs)
LED Status: Low Battery Shutdown, Over Temperature Shutdown, Overload, Inverter ON/OFF Indicator
Protection: Overload, Short Circuit, Reverse Polarity (fuse), Over/Under Input Voltage, Over Temp.
Mounting: Inverter may be mounted in any orientation
Features:
True sine wave 120 volt AC output.
Resilient electronic protection designed to handle output short circuits and output overloads.
Load Demand Feature to conserve DC power under no load conditions. (Not on 600-watt models.)
15 amp GFCI Duplex Receptacle.
Automatic shutoff for low or high battery voltage, overload or over temperature with indicator LEDs.
Remote control circuit. (Not present on 600-watt models.)
Indicator lights for Low Battery Shutoff, Over Temperature Shutoff, Overload and Inverter ON/OFF/Load
Demand status.
Thermostatically controlled cooling intake fan.
Manufacturer: Vanner
Model Number: Sine Wave AC Power Inverter
Part Number: VLT24-1000

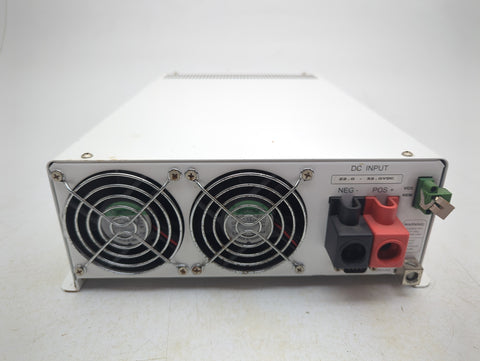

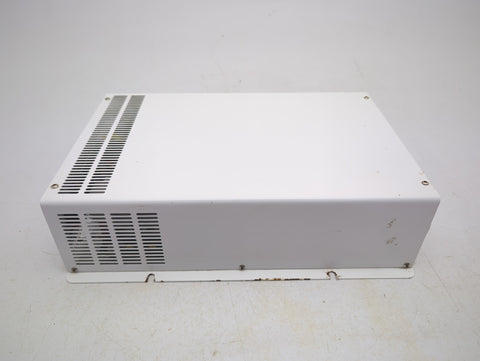

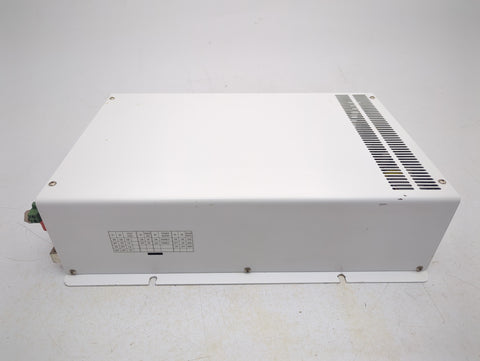

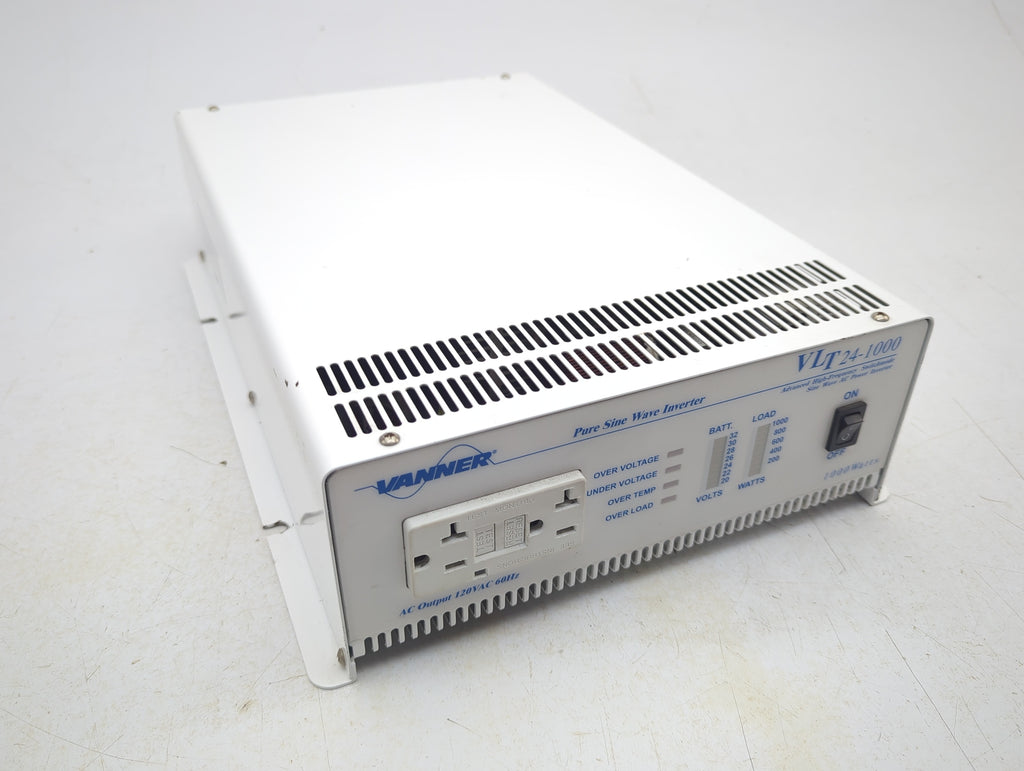

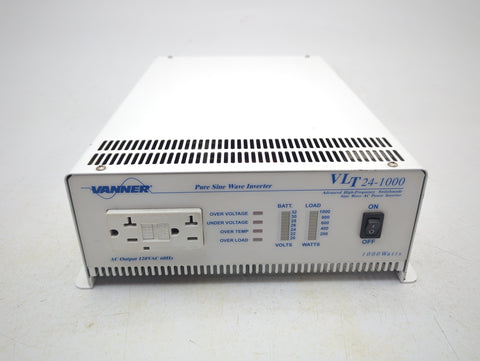

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
