The Wakespeed WS500 Advanced Alternator Regulator is the only model on the market that can utilize current, voltage, and temperature to deliver the most precise and effective charging possible. Ideal for 12V, 24V, and 48V battery systems – with configurability for voltages in between – the WS500 is the perfect solution for charging lead acid-based or new generation LiFePO4 lithium-ion battery banks.
This Advanced Alternator Regulator can be connected to a current shunt to monitor current flow to and from the batteries, enabling the regulator to control charging based on a combination of system voltage and amperage delivered from the alternator to the batteries. In addition, the WS500 can also monitor alternator and battery temperatures and modify charging output to ensure optimal safety and charging performance at the alternator and batteries.
Features:
Wide ranging support for a variety of battery technologies
Advanced, multi-PID engine control provides the most accurate charging available
Simple to install, configure, and operate
Best charge control for lithium battery chemistries
Superior protection for your investment
Adaptive Idle Technology minimizes impact of the regulator on smaller engines by controlling
alternator loads based on engine RPM
Zero Output Technology enables the regulator to limit output to loads when batteries require
discounted charging
Provides Multiple Alternator Support without the need for relays or switching device
Full BMS Compatibility using RV-C and OSEnergy protocols
Specifications:
System Voltage: 12V, 24V, 36V, 48V
Enclosure Dimensions: 6-3/4" X 3-7/8" X 2-3/8" (160 X 100 X 60 mm)
Footprint: 7-1/2" X 3-7/8" (190 X 100 mm)
Enclosure Material: Diecast Aluminum Alloy
Finish: Powder Coated
Wiring Harness: Color coded Tinned Wire, Expandable Sheathing

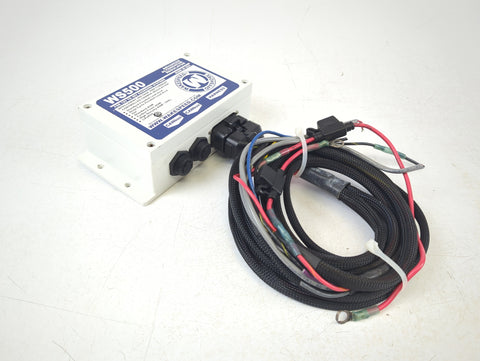

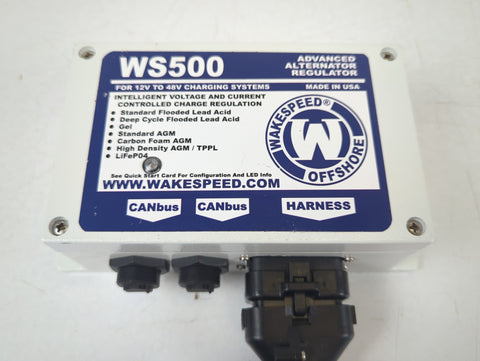

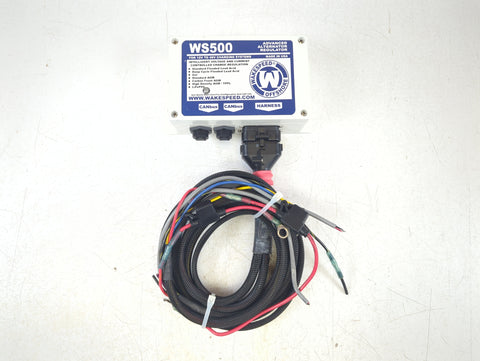

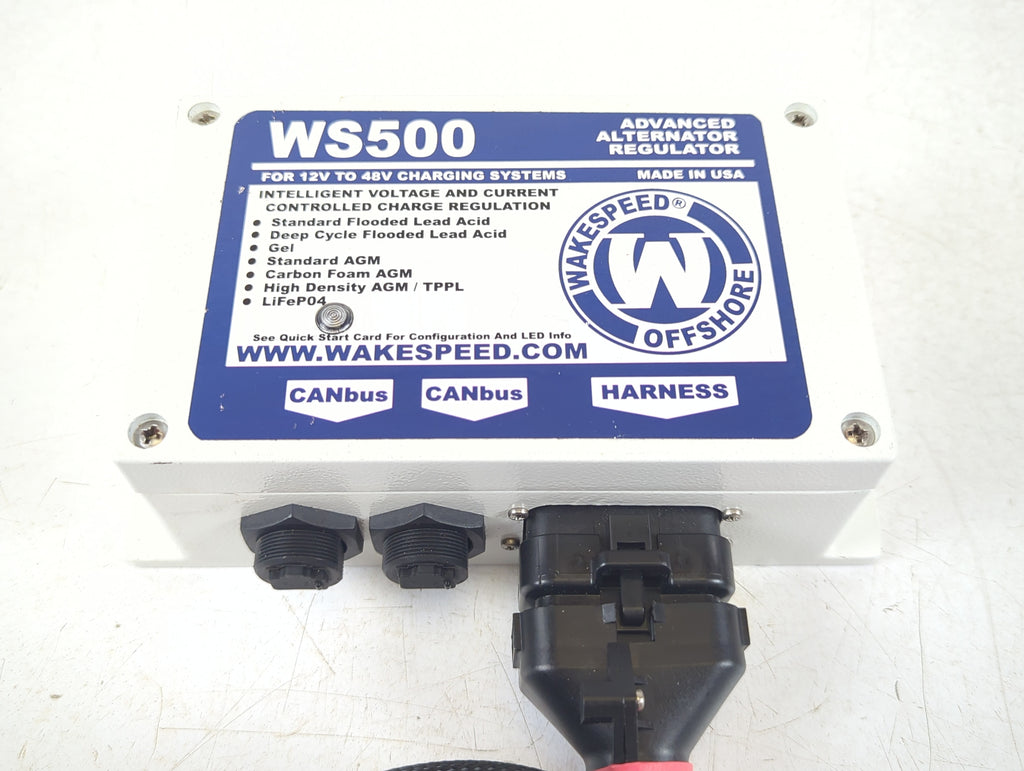

Condition: In Stock, Ready to Ship! This unit is in excellent physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
