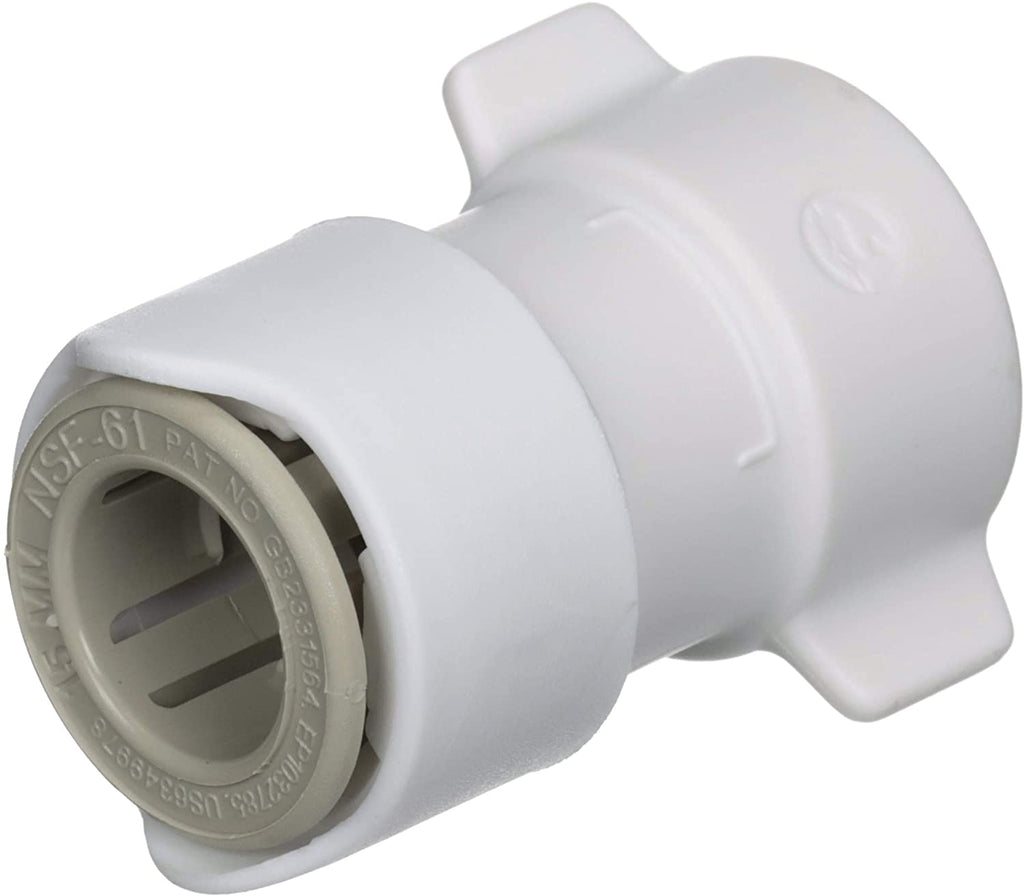

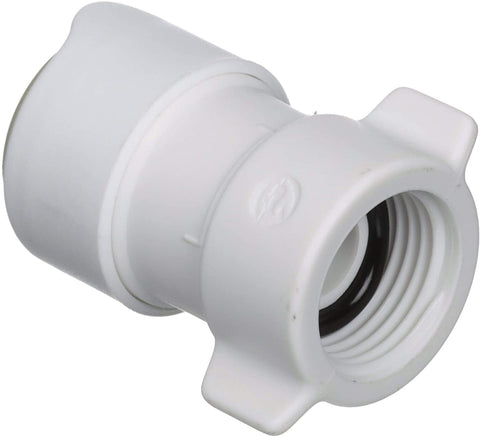

Whale WX1532 Marine 15mm X 1/2” NPT Female Quick Connect Union Plumbing Fitting WX1532B
Whale WX1532 Marine 15mm X 1/2” NPT Female Quick Connect Union Plumbing Fitting WX1532B
Whale WX1532 Marine 15mm X 1/2” NPT Female Quick Connect Union Plumbing Fitting WX1532B

Whale WX1532 Marine 15mm X 1/2” NPT Female Quick Connect Union Plumbing Fitting WX1532B

  • Sale
  • $13.95
  • 2 available
  • 15mm X 1/2” NPT Female Quick Connect Union Plumbing Fitting
  • Ensure a high integrity, reliable, plumbing system solution
  • Unique “Double Gripper” provides secure lifelong tube retention, even at excessive pressures
  • Collet has internal support ring ensuring O-ring seal is held in position and does not distort or leak under pressure
  • The innovative tube supporting “cage collet” design eliminates leaks where fittings are close to tight bends
  • High-integrity, single-piece molding improves the reliability and strength of the fittings
  • Outer sleeve incorporates collet cover, thus preventing accidental tube releases
  • Collet clips are not necessary and therefore reduce installation time
  • Unique adapter fittings enable partial upgrades to boat's plumbing system
  • Tube Size: 15 mm
  • Thread Size: 1/2” NPT Female
  • Material Fittings: Glass-filled polypropylene
  • Tubing: Polyethylene
  • Maximum Pressure: Hot water: 6 bar (90psi); Cold water: 12 bar (180psi)
  • Maximum Temperature: Hot water: 65°C (180°F); Cold water: 20°C (68°F)
  • Maximum Bend Radius (15mm Tubing): 75mm (2 15/16”)
  • Minimum Dry Storage Temperature: -40 ºC (-40 ºF)
  • For use with: Cold and hot water mobile installations and mobile heating systems
  • Manufacturer: Whale
  • Model Number: Union Fitting
  • Part Number: WX1532, WX1532B, WX1532(B)
  • Also Known As: Seatech, Sea Tech 1110-0815 1180-0815
