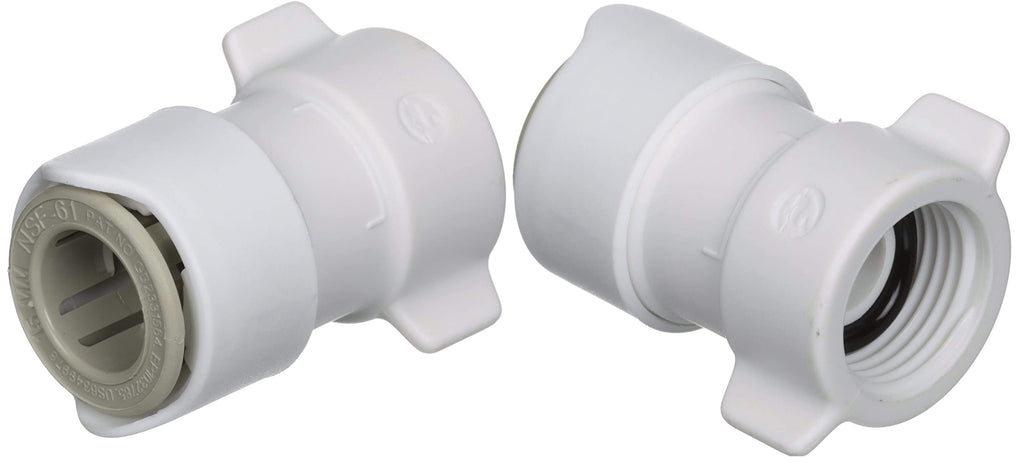

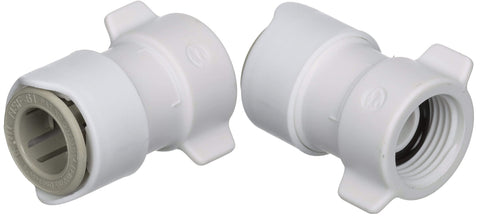

This Listing is for a 2-Pack of Union Fittings.

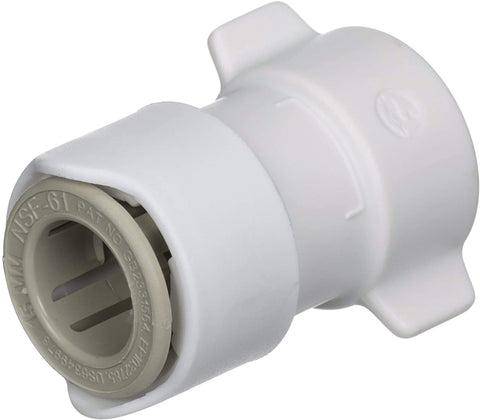

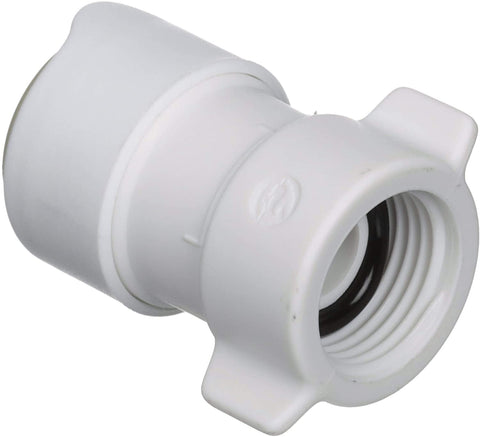

- Marine 15mm X 1/2” NPT Female Quick Connect Union Plumbing Fitting
- Ensure a high integrity, reliable, plumbing system solution
- Unique “Double Gripper” provides secure lifelong tube retention, even at excessive pressures
- Collet has internal support ring ensuring O-ring seal is held in position and does not distort or leak under pressure
- The innovative tube supporting “cage collet” design eliminates leaks where fittings are close to tight bends
- High-integrity, single-piece molding improves the reliability and strength of the fittings
- Outer sleeve incorporates collet cover, thus preventing accidental tube releases
- Collet clips are not necessary and therefore reduce installation time
- Unique adapter fittings enable partial upgrades to boat's plumbing system
- Tube Size: 15 mm
- Thread Size: 1/2” NPT Female
- Material Fittings: Glass-filled polypropylene
- Tubing: Polyethylene
- Maximum Pressure: Hot water: 6 bar (90psi); Cold water: 12 bar (180psi)
- Maximum Temperature: Hot water: 65°C (180°F); Cold water: 20°C (68°F)
- Maximum Bend Radius (15mm Tubing): 75mm (2 15/16”)
- Minimum Dry Storage Temperature: -40 ºC (-40 ºF)
- For use with: Cold and hot water mobile installations and mobile heating systems
- Manufacturer: Whale
- Model Number: Union Fitting
- Part Number: WX1532, WX1532B, WX1532(B)
- Also Known As: Seatech, Sea Tech 1110-0815 1180-0815
