Xantrex 805-2020 PROsine 2000 Boat Marine Inverter / Charger Remote LCD Display Panel

Xantrex 805-2020 PROsine 2000 Boat Marine Inverter / Charger Remote LCD Display Panel

Sale
Regular price $299.95
1 available

Xantrex 805-2020 PROsine 2000 Boat Marine Inverter / Charger Remote LCD Display Panel
A powerful all-in-one solution, PROsine 2.0 inverter/chargers deliver up to 2000 watts of unsurpassed clean true sine wave output power and combines this with a 100 amp, multistage battery charger. Series stackability allows for two units to power 240 VAC applications such as power tools, over ranges, washer/ dryer combinations and air conditioner. The system includes a full function LCD remote control panel and battery temperature sensor.
Features:
- 2000-watt inverter (4500-watt surge)
- 100A power factor corrected multistage charger
- True sine wave output (crystal controlled)
- Built-in 30 A transfer switch automatically transfers between inverter power and incoming AC power
- Series stackability for 120/240 VAC (requires two units)
- Power sharing reduces charging current when AC loads are activated to prevent tripping of
  shorepower breaker
- Equalization mode conditions batteries for longer life
- Compact, lightweight, and easy to install
Specifications:
- Electrical - Inverter:
  - Output Power Continuous: 2000 Watts
  - Surge Rating (5 sec.): 4.5 kW
  - Output Current: 17 A RMS continuous, 50 A peak
  - Output Voltage: 117 VAC RMS
  - Output Frequency: 60 Hz +/-0.05% (crystal controlled)
  - Output Waveform: True sine wave <2% THD typical
  - Efficiency (full load): 87%
  - Peak Efficiency: 89%
  - No Load Power Draw (inverting): <25 W
  - No Load Power Draw (search mode, 3 s interval): <2 W
  - Input DC Voltage Range: 10 − 16 VDC
- Electrical - Charger:
  - Output Current: 100 A DC continuous
  - Output Voltage: 12 VDC nominal
  - Output Voltage Range: 0 − 17.5 V
  - Charge Control: 3 Stage with manual equalize
  - Charge Temperature Compensation: Remote Battery Sensor
  - Efficiency: 81% typical
  - AC Input Power Factor: 0.99
  - Input Current (for 100 A charging): 15 A RMS nominal
  - Input AC Voltage: 120 VAC nominal
  - Input AC Voltage Range: 90 − 135 VAC
- General:
  - Compatible Battery Types: Flooded / gel / AGM / Pb-Ca
  - Transfer Relay Rating: 30 A, 1.5 HP, 120 VAC
  - Transfer Time (AC to inverter and inverter to AC): 16 ms typical
  - Storage Ambient Temperature Range: -40°F − 158°F (40°C − 70°C)
  - Optimal Operating Temperature Range: 32°F − 104°F (0°C − 40°C)
  - Operating Ambient Temperature Range: -4°F − 140°F (-20°C − 60°C - derated above 40°C)
  - Dimensions (HxWxD): 17.7” X 11.2” X 5.7” (450 X 285 X 145 mm)
  - Weight: 24.0 lb (11 kg)
Manufacturer: Xantrex
Model Number: PROsine 2000
Part Number: 805-2020

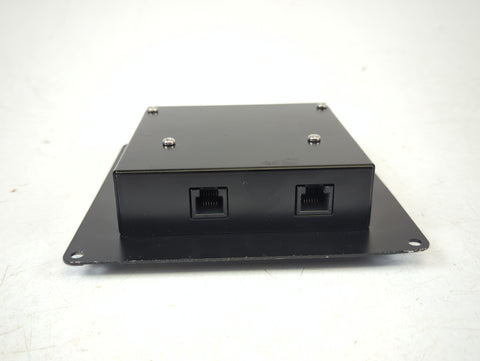

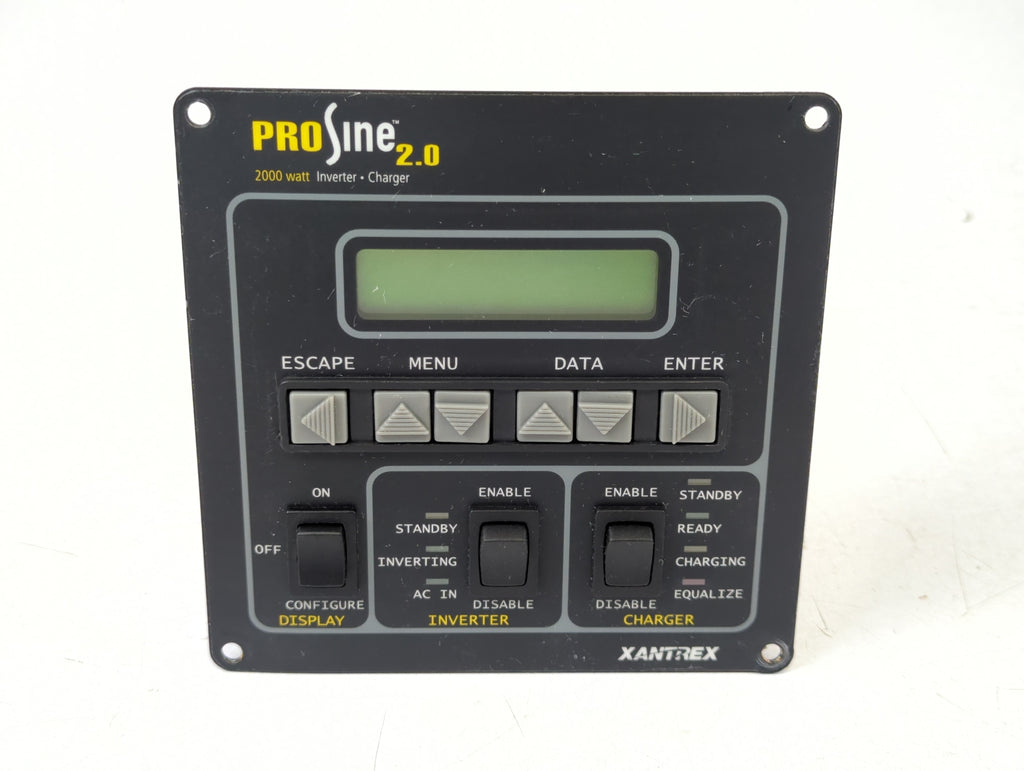

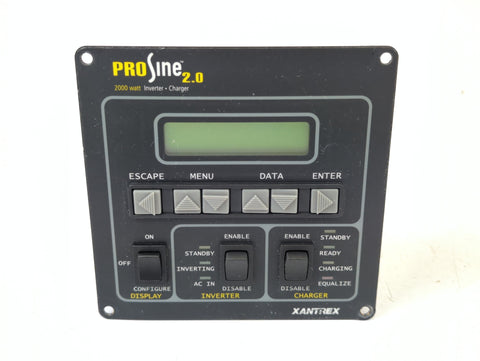

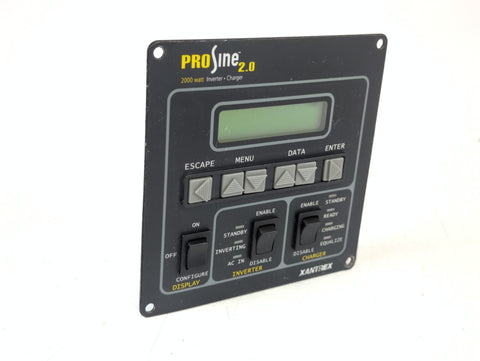

Condition: In Stock, Ready to Ship! This unit is in very good physical condition and was removed from a boat that received a total electronics refit. See Photos. Guaranteed in good working order and covered by a 14 day return policy. This listing is only for what is shown in the photos. No other parts or pieces are included.
